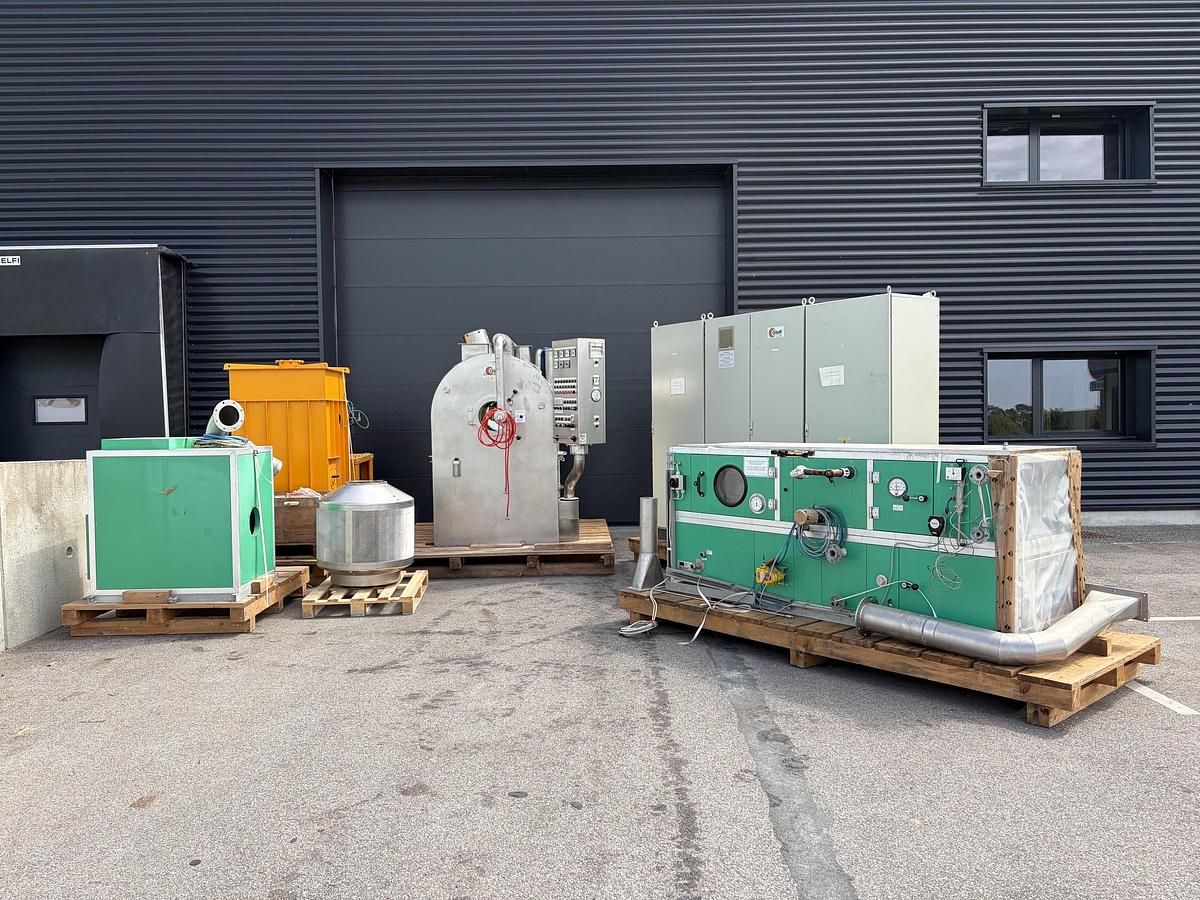

GLATT GC 750 - 500

GLATT coating turbine, Glatt GC 750/500 enrobing machine from 1994 with interchangeable drums, explosion-proof version (Ex), - Processing equipment: Glatt GC 750 Coater (equipment used only for testing), - Perforated drums (diameters 500 mm and 750 mm) with:, Air intake and discharge housings for both drums, Drum capacity 750 mm: 50 – 75 kg/batch, Drum capacity 500 mm: 15 – 45 kg/batch, - Manual unloading, - Spray arm with nozzle adapter, Spraying system with 1 Schlick nozzle, - Control cabinet (pneumatic/electric) with Siemens S5 PLC, - Air handling unit (AHU) 7AIR comprising:, - Inlet air fan, - Filtration F7 and H12, - Preheating, - Dehumidification, - Heating, - HERDING Dust Collector, - Outlet air fan, - WIP spray nozzle (in-place cleaning) inside the drum and external nozzle, Elec: 3x400 / 24VDC / 50Hz , Useful volume: 500mm: 15-45kg 750mm : 50 - 75kg , Spray nozzles: X, Air handling unit: X, Dust collector: X, Number of included tanks: 2, Tanks: 2, Number of tanks: 2
Verkäufer Angebot Nr. resale 6146513
