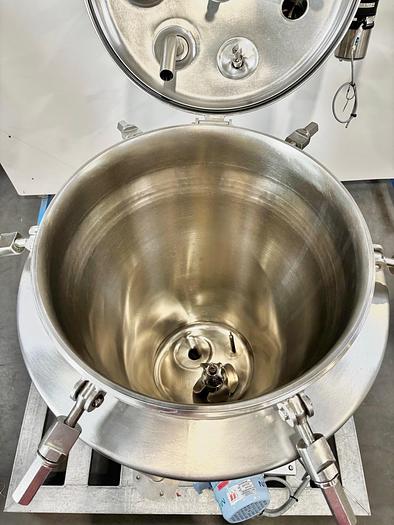

Double-walled stainless steel tank, Manufacturer GOAVEC, Capacity 105
litres, CIP ball, Volume: 105 litres , Hustle: Bottom of tank, Elec:
400V, Engine: DR drives type TS71A4, Engine power: 0,25 kW, Cover
diameter: 500 mm, Tank bottom outlet: Yes, Tank bottom diameter: 22,
Event: 1, Mobile tank: No , Double envelope: Yes, Double envelope
volume: 8 litres , Calculation pressure (double envelope) : 2.2 bar ,
Maximum admissible temperature (double envelope): 95 °C , Test
pressure (double envelope): 3.5 bar , Operating pressure (double
envelope) : 2 bar , Double envelope fluid: Water , Operating pressure:
-1/3 bar, Pressure calculation: -1 / 3.3 bar, Operating temperature: 0
/ 143 °C , Calculation temperature: 143 °C , Test pressure: 5,3 bar,
Top tapping: 1, Side tapping: 1, Lid: 1, Design pressure (double
jacket) : 2.2 bar , Proof pressure (double jacket): 3.5 bar ,
Operating pressure (double jacket) : 2 bars , Pressures test: 5.3 bar,
Top nozzle: 1, Porthole: 1
Frankreich
yerville
