Vierseitenhobelmaschinen GUBISH NMP 220/4

Part Number: 7995

SPECIFICATIONS
- max planing width 240mm
- max planing height 140mm

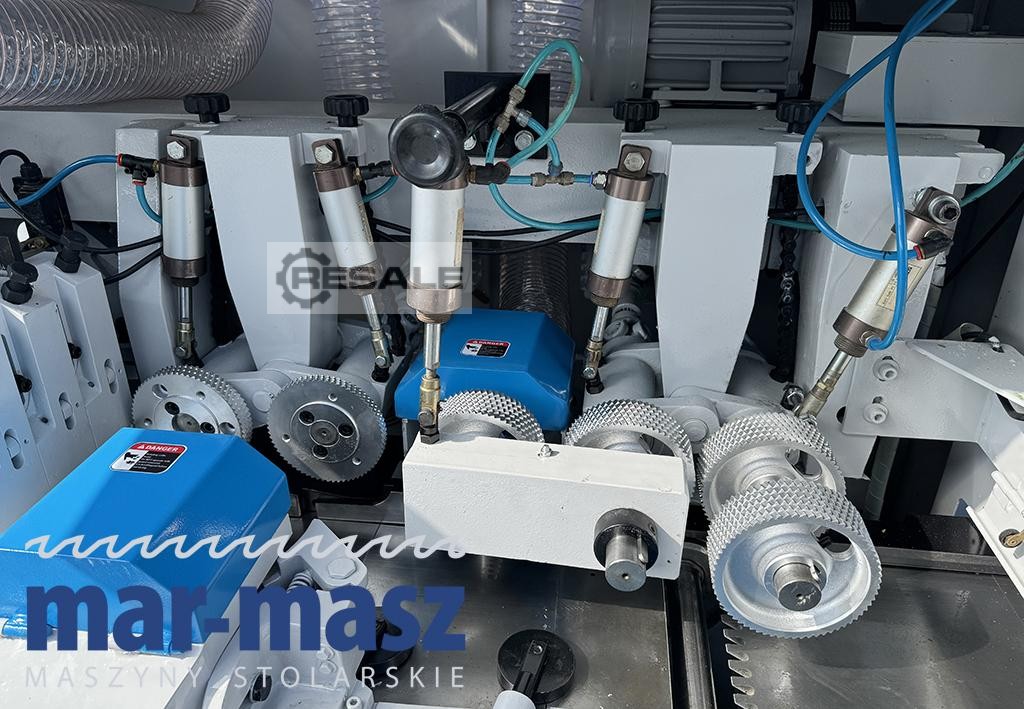

4 spindles:
1) horizontal bottom 240mm 5.6kW
2) vertical right 140mm 5.6kW
3) Vertical left 140mm 7.5kW
4) horizontal top 240mm, electrically adjustable up/down 0.37kW - 7.5kW
- diameter of all spindles 40mm
- All spindles adjustable up/down and right/left
- 5 pulling, toothed, torsion shafts from above, including 1 double
- 2 output rollers from above, rubber, pulling
- metal roller at the bottom at the exit, pulling, split
- pneumatically pressed rollers
- 3 clamps on the side
- electric setting of planing thickness 0.37kW

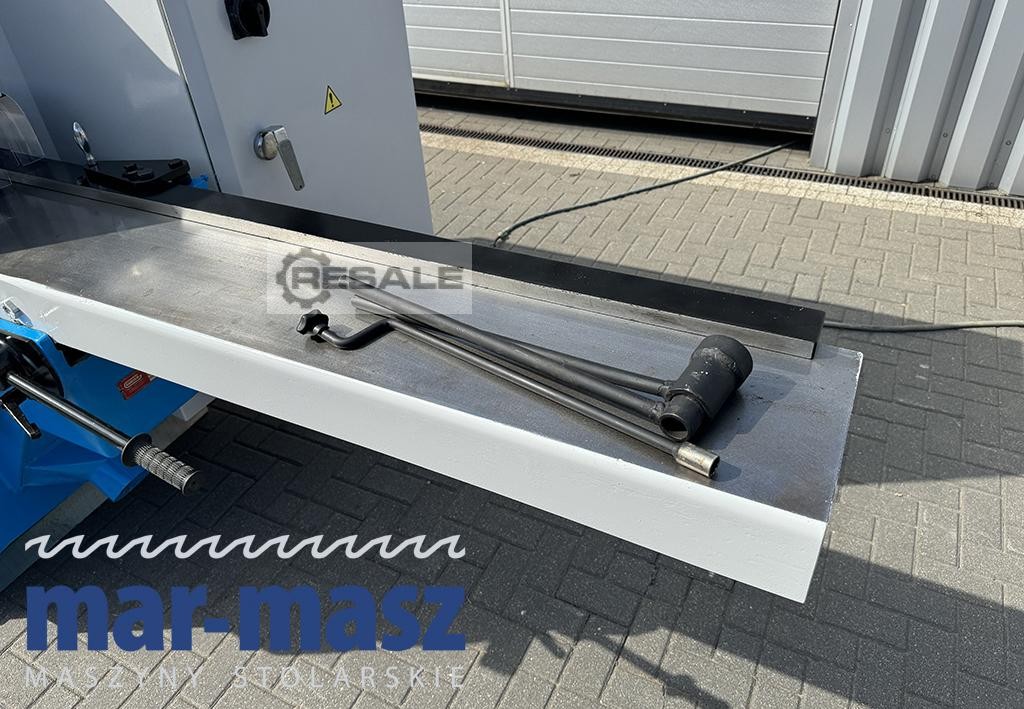

- length of the introductory table top 2080mm
- infinitely variable feed speed control on the inverter
- feed on cardan shafts
- 3.7kW feed motor
- central lubrication
- Extraction port diameters 4x125mm
- Dimensions L/W/H 3600x1650x1700mm
- weight about 3000kg

ADVANTAGES
– made in Germany, brand GUBISCH
– for 4 heads
– DTR documentation
– used planer, very good condition

Net price: 32900 PLN
Net price: 7833 EUR depending on the price 4.20 EUR
(Prices may change with higher fluctuations)
Verkäufer Angebot Nr. resale 7995
