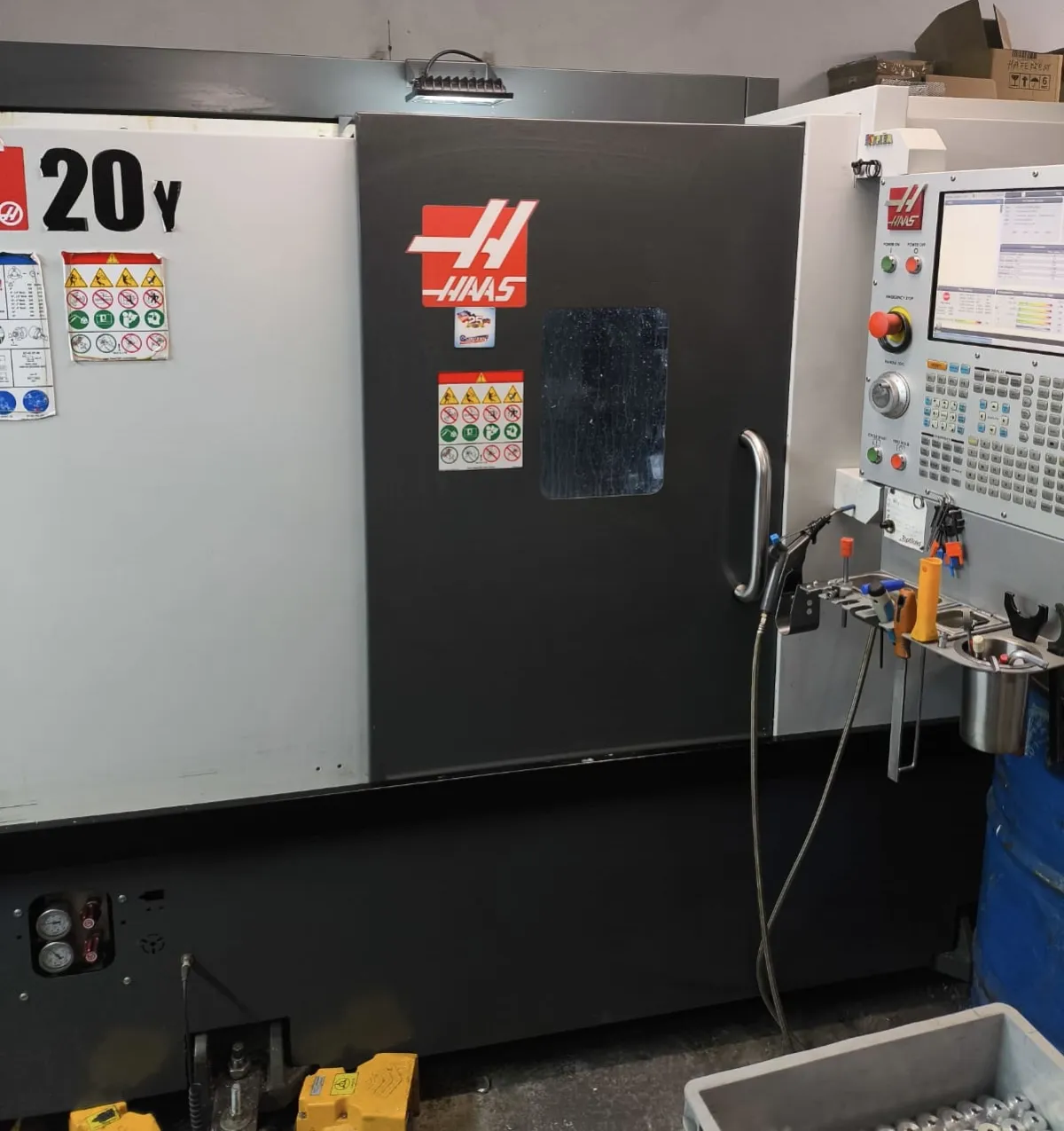

Haas ST-20 Y CNC

CNC lathe

Type: ST-20 Y

Manufacturer: Haas

Year: 2023

Control: Haas

Max.turning diameter: 298 mm

Max.turning length: 572 mm

Swing over support: 533 mm

X: 213 mm

Z: 572 mm

C-axis

Y-axis: +/- 50.8 mm

Driven tools

Tailstock

Tool probe

X/Y/Z axis rapid traverse - 24.0/12.7/24.0 m/min

Spindle cone: A2-6

Max. power: 14.9 kW, spindle drive Vector Drive

Max. torque: 203 Nm

Max. spindle speed: 4000 rpm

Spindle bore: 63.5 mm

Automatic hydraulic chuck: 210 mm

Turret MBT65 : 12 position

Max. speed of driven tools: 4000 rpm

Drive of all positions of the BMT65 turret

Coolant tank: 208 l with pump

El. connection 3x400V/50HZ, 14kVA

Machine weight: 5300 kg

Linear rollers pre-tensioned axis guide

Central automatic lubrication - axes with grease / spindle with oil

Lighting of the working space

Automatic hydraulic 3-jaw chuck

A set of tool holders (only for BOT or HYBRID revolvers)

Direct threading

15 color LCD monitor

Electronic wheel on the control panel

Operating memory 1 GB

USB and ETHERNET communication interface

Hand gun for air cleaning

A set of setting feet

Machine in very good condition, under power
