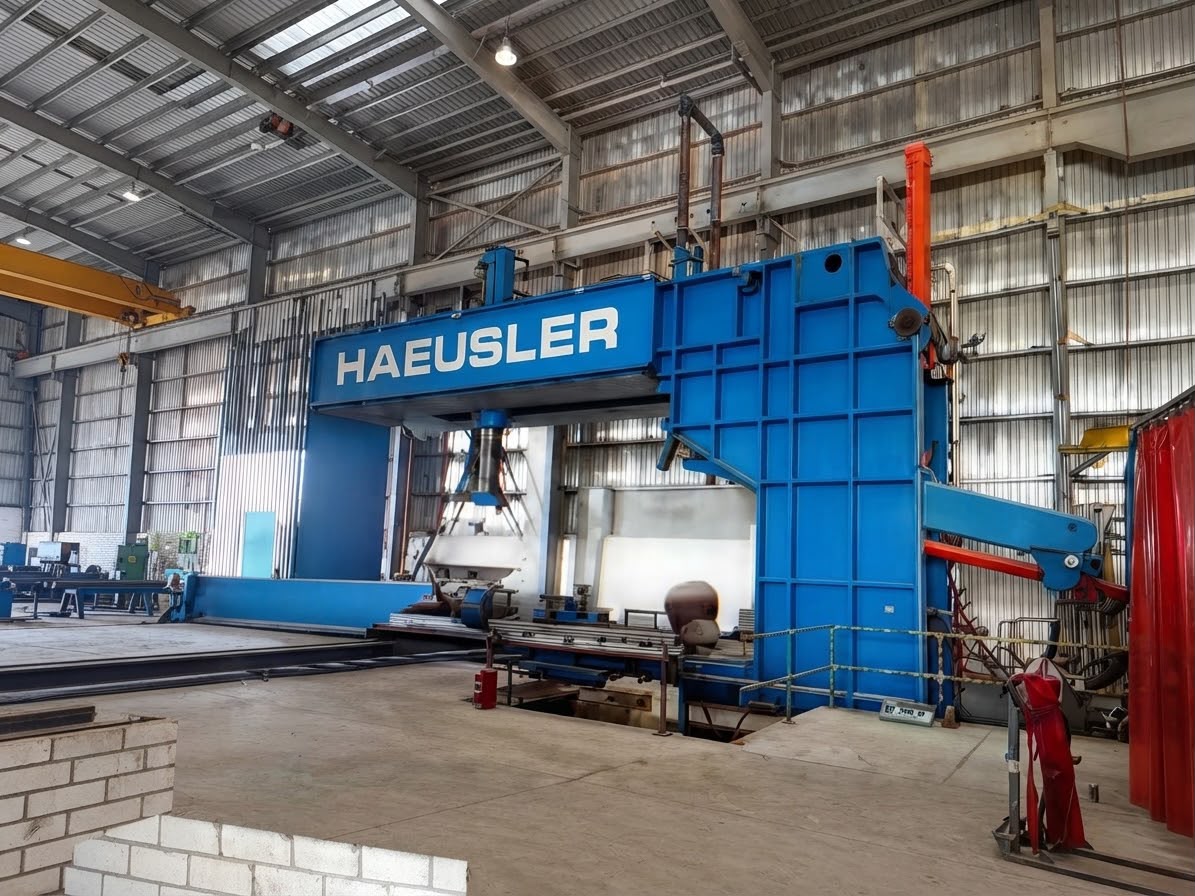

HAEUSLER HBM-HY 7000 x 90

HAEUSLER FLANGING MACHINE HBM-HY 8700 x 90 mm


- Forming and Flanging rollers:
- inclines positon 0 - 25 Degrees
- Rotation sopeed 0 - 200 M/Min
- Rapid adjustment speed 2500 mm/Min
- Crawling speed 0 - 1200 mm/Min
- Sleeve hydro mechanical rapid speed 6000 mm/Min



- Infeed carriage:
- Work piece weight 42.000 Kg
- Max. dished head 8300 mm
- Min. dished head 1900 mm
- Speed 20 M/Sec
- Centering Automatic



- Data of Workpiece:
- Cold 360 N/mm2 45 mm
- Hot 360 N/mm2 90 mm
- Min Knuckel Radius 100 mm
- Max. Knuckel Radius 1200 mm
- Min thickness dished 10 mm
- Head diameter without device 2600 mm
- Head diameter with device       1900 mm
- Length off straight flange at flanged head 3,5 x thicness = 140 mm



- Hydraulic tank 2000 Liter
- 10 sets knuckel head up to R-7300 mm
- Power 350 kW
- Form roller changing device in combi with lifgting sleeve
- Auxiliary device for flanging heads from 1900 - 2600 x 25 mm thickness
- Measuring device outer diameter and knuckle radius of flanged head



-

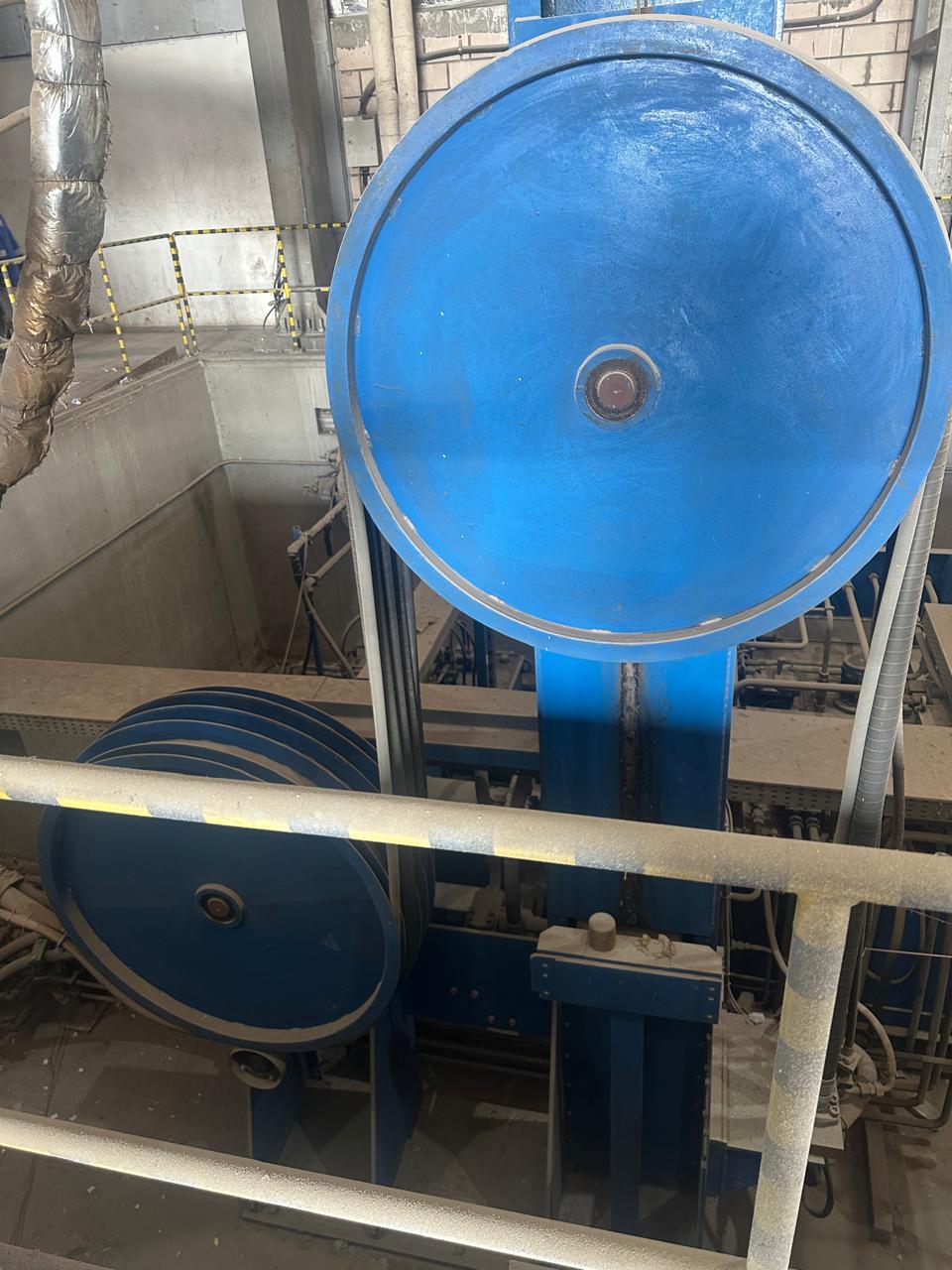

Optional Dishing Dies (Gray GG-25)

RUW 925 with    1500 diameter x R   950 – 1300 mm
RUW 1205 with 1500 diameter x R 1305 – 1700 mm
RUW  1520 with 1500 diameter x R 1705 – 2200 mm
RUW 1905 with 1500 diameter x R 2205 – 2800 mm
RUW 2395 with diameter 1500 x R 2805 – 3500 mm
RUW 2885 with diameter 1500 x R 3505 – 4300 mm
RUW 3515 with diameter 1500 x R 4305 – 5200 mm
RUW 4215 with diameter 1500 x R 5205 – 6200 mm
RUW 4985 with diameter 1500 x R 6205 – 7300 mm



Verkäufer Angebot Nr. resale 9830
