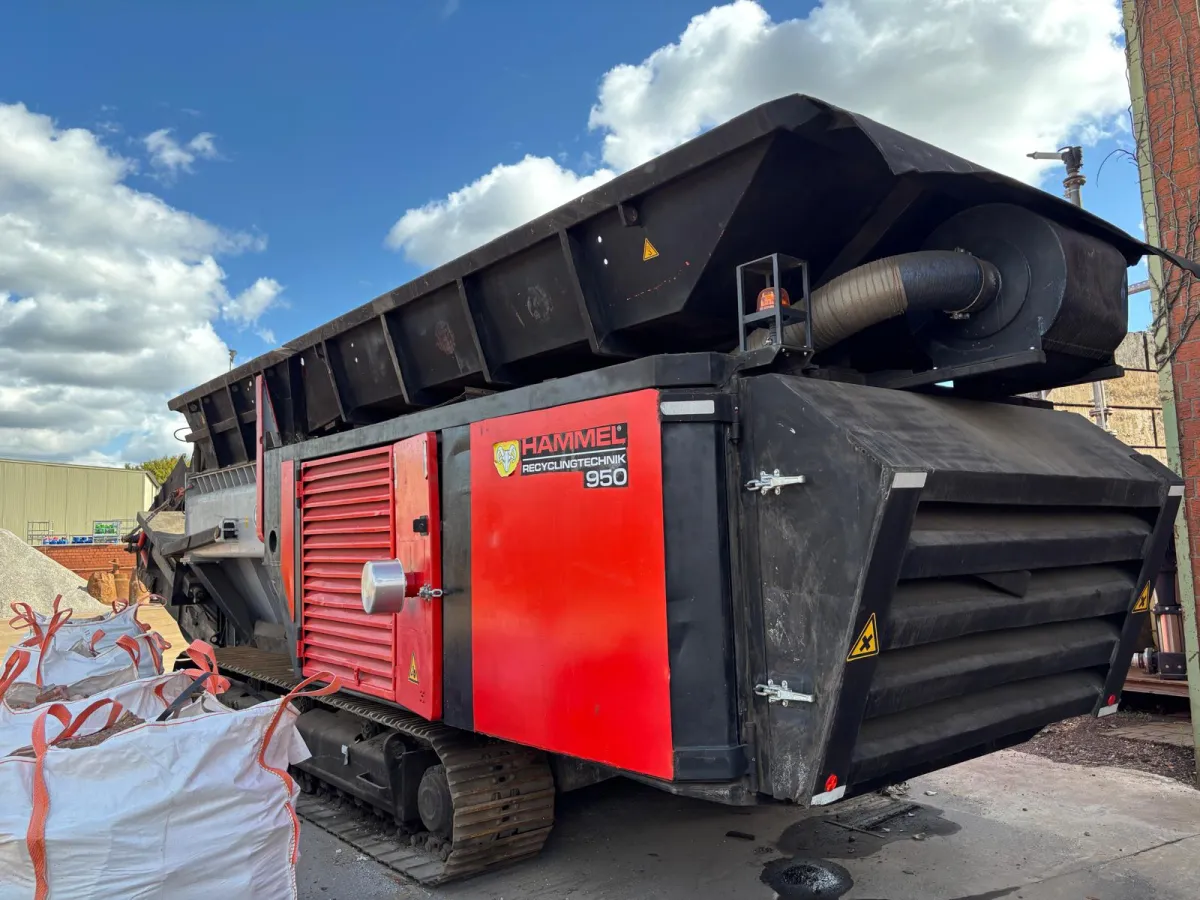

Manufacturer: Hammel
Model: VB 950 DK NR 60
Year of Manufacture: June 2008
Weight: approx. 42 tons
Operating Hours: approx. 6,000 hours
Configuration: Mobile on crawler undercarriage
Paint Finish: RAL 3020 (red)
Refurbished: 2025
Refurbishment Work Carried Out in 2025
- New main gearbox installed
- Hydraulics replaced (except main pumps)
- Full hydraulic system flush completed
- Tank cleaned and all oils changed
- Fuel filter replaced
- Partially repainted
Drive / Engine
- Engine: Caterpillar C-18
- Power Output: 522 kW / 710 PS
- Idle Speed: approx. 700 min-1
- Working Speed: approx. 1,900 min-1
- On-Board Voltage: 24 V
Shredding Shafts
- Rotor Diameter: approx. 870 mm
- Shaft Configuration: 6-part, 8/8 discs (waste/bulk)
- Working Width: 2,445 mm
- Shaft Speed (automatic mode, no load): approx. 36 min-1
Discharge Conveyor
- Belt Width: 1,400 mm
- Belt Type: Cleat belt, steel-reinforced
- Discharge Height Adjustment: Hydraulic
Controls and Undercarriage
- Remote Control: Hetronic GA610
- Crawler Undercarriage: IVA B4, U-C-4-1-163
Dimensions
- Overall Height (without conveyor and hopper extension): approx.
3,200 mm
- Overall Width: approx. 3,000 mm
- Overall Length - conveyor extended: approx. 14,600 mm
- Overall Length - conveyor folded: approx. 12,600 mm
- Total Height with raised tipping hopper (without extension): approx.
6,600 mm
- Optional Overband Magnet Weight: approx. 2,900 kg
