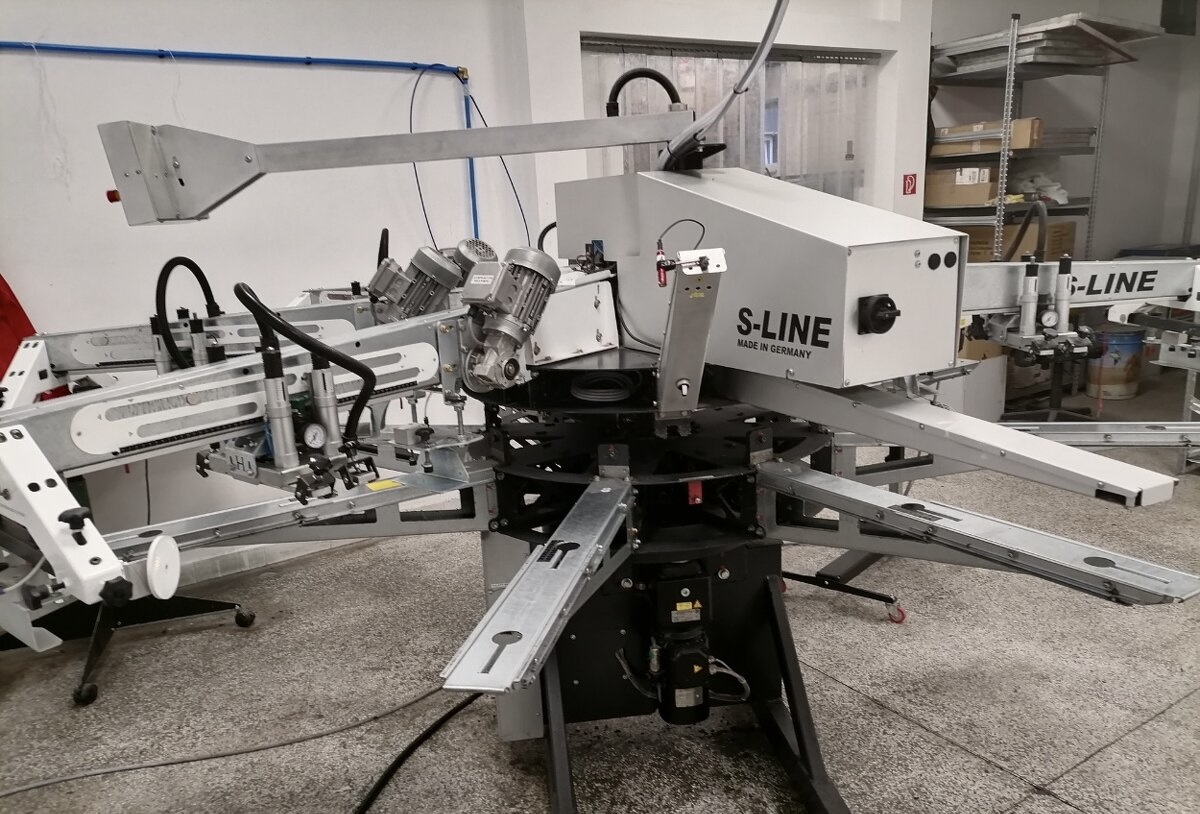

Hebbecker VERSATRONIC S-line Textildruck

Automatic Textile Printing Machine Type: VERSATRONIC S-line

Manufacturer: Hebbecker

Year: 2022

Configuration:

8 stations/pallets

6 printing heads

Maximum print area: 400 x 450 mm

Pallet drive: frequency-controlled AC servo drive

Squeegee-drive system:

AC servo high-precision drive

4-cylinder POWER-Squeegee system

Main Control Unit:

Rotatable control panel with 7” SMART touch display

Microprocessor with diagnostic program

Printing Programs:

6 standard printing programs

High-density program

MULTIFLASH program

Cool-stop mode

Sampling program

Start-up/finishing program

Screen-Cleaning mode, stopping pallets between print stations

Free-wheel-mode

Accessories

8 pcs aluminum sandwich pallets 420 x 500 mm with neck

8 pcs aluminum sandwich pallets 320 x 500 mm with neck

8 pcs aluminum sandwich pallets 230 x 500 mm with neck

8 pcs aluminum sandwich pallets 130 x 500 mm without neck

6 pcs QS-printing squeegees 410 mm, 65° Shore

6 pcs QS-printing squeegees 310 mm, 65° Shore

6 pcs QS-printing squeegees 210 mm, 65° Shore

6 pcs QS-printing squeegees 120 mm, 65° Shore

6 pcs aluminum flood bars 410 mm

1 pcs squeegee holder for wall mounting

6 pcs micro-registration systems with control on each printing head

6 pcs 3-point pneumatic screen-locks

Machine Dimensions:

For a print size of 400 x 450 mm, a frame of 530 x 780 mm is required (profile: 25x25/30x30 mm)

Machine diameter: 3.080 mm

Energy Requirements:

Power supply: 3x400V V, PEN, 3.7 kW, 5.6 A

Compressed air: 8 bar, approximately 300 liters/hour

Transport Dimensions:

S-LINE 8:

Gross weight: approx. 900 kg

These devices are also part of the price

Automatic Quartz-flashcure MAGIC 5025

Medium-wave IR radiators

Radiation area: 500 x 500 mm

With IR-Pyrometer for continuous measurement of print material temperature

Ensures constant temperature throughout the printing process, preventing overheating of textiles and pallets

Power supply: 9 kW, 14 A, 3x400V

Movable stand with wheels

AIR-Beltdryer type S-DRY 100-300

Hot air dryer for drying plastisol, water-based, and solvent-based inks

Closed hot air recirculation system → energy saving and optimal drying of all ink types

Belt width: 100 cm

Infeed section: 80 cm

Hot air tunnel: 300 cm

Outfeed section: 80 cm

Total length: 460 cm

Temperature range: up to 200°C

Electrical supply: 28 kW, 400 V 3/N + E, 50 Hz

Adjustable belt speed: 1 – 7 m/min

Transport belt: glass fiber with Teflon coating

Exhaust fan
