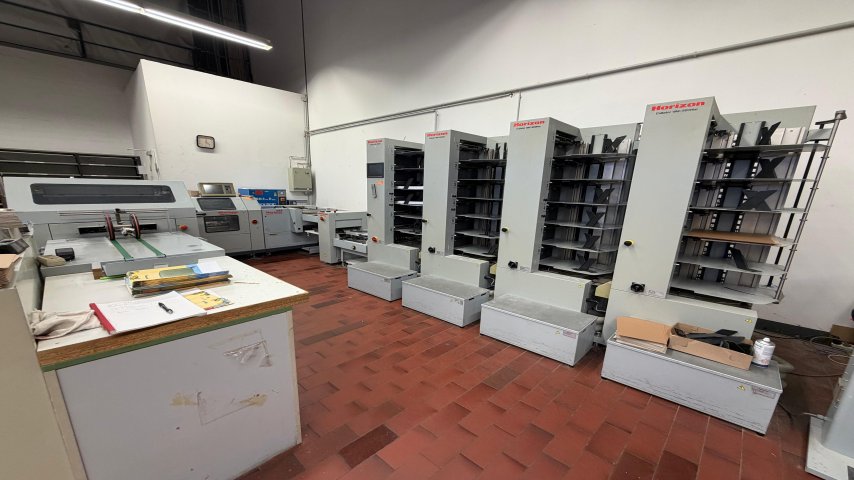

Horizon Stichliner 5500 Verschiedene

Format: 500 x 350 mm
Druckzahl: 11165626 Mio.
Ausstattungen:
Accumulate & Folder ACF-30
Stacker ST-40
1x VAC-600 Ha 3x VAC-600 Hm
Three knife trimmer HTS-30S
Saddle stitcher SPF-30S
24 stations
U-shaped layout: Efficient space utilization and easy monitoring
Inline production from collating to finished product
Variable data processing: Handles personalized prints and variable page counts, ideal for digital printing
Fully automatic format adjustment for quick job changes
Touchscreen for user-friendly operation, even for less experienced operators
Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm
Paper weight: 40-350 gsm
Processing thickness: 8-200 pages (max. 5 mm spine thickness)
Production speed: Up to 5,500 booklets/hour
Stitch distance: 60-150 mm
Trimming (untrimmed): Max. 350 x 250 mm, Min. 140 x 103 mm
Trimming (trimmed): Max. 312 x 230 mm, Min. 120 x 95 mm
Power supply: 400V / 50Hz
Space requirement: Min. 5,709 x 3,240 mm
