IGM RTE 497-S Schweißmaschinen

Manufacturer: IGM

Model: RTE 497-S

Year of Manufacture: 2021

Technical Specifications

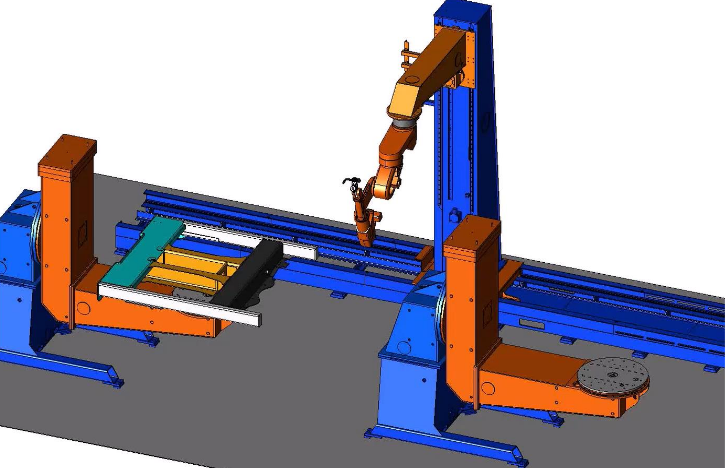

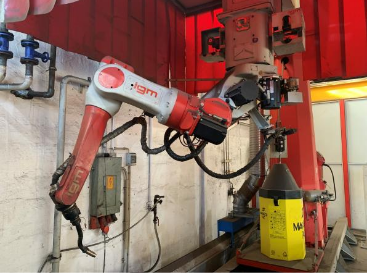

Robot System

- Control system: Fully digital PC robot control, type RCE

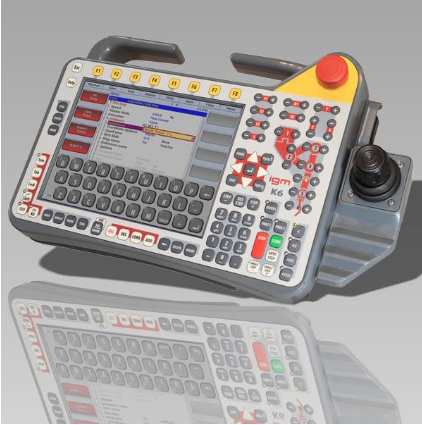

- Software: Windows 10 & Linux-based system with IGM robot software K6
- Welding process: 135 (GMAW), single-wire, wire diameter 1.2 mm

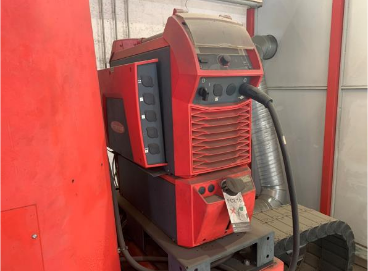

- Welding power source: Digital inverter welding power source TPS 500i
- Output: 500 A at 40% duty cycle
- Robot periphery: Rotating boom for floor installation, boom length 2.5 m
- Number of workstations: 1

Workstation

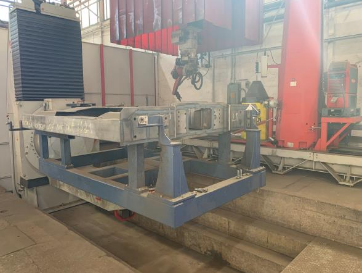

- 3-axis L-manipulator with lifting device
- Nominal load capacity: 2 t

Safety Equipment

- Pistol safety shut-down in wrist axis

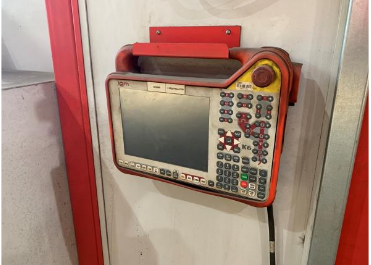

- Emergency stop on hand tablet, manipulators, and control panel
- Three-colour warning light for operating status

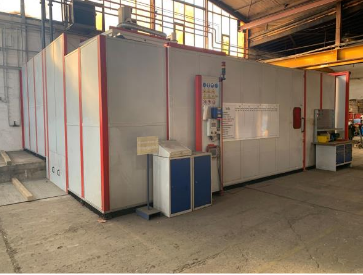

- Safety partition
- Safety door

Robot Dimensions and Performance

- Travel path: 5,000 mm
- Arm length: 2,500 mm
- Lift: 1,000 mm
- Spin radius: 2,200 mm

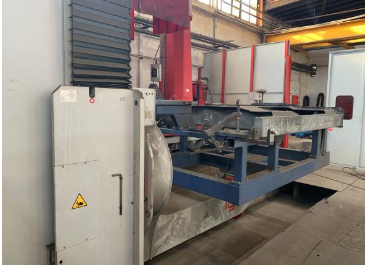

L-Manipulator

- Load capacity: 2,000 kg
- Lift velocity: 0.85 m/min
- Swing speed: 1.7 min⁻¹
- Turn speed: 6 min⁻¹

Possible Applications

- Welding assemblies for:
- Railway industry
- Forklifts
- Boilers and vessels
- Cranes
- Mining equipment
- Various other heavy-duty components
