IMSA MF 1000 BB

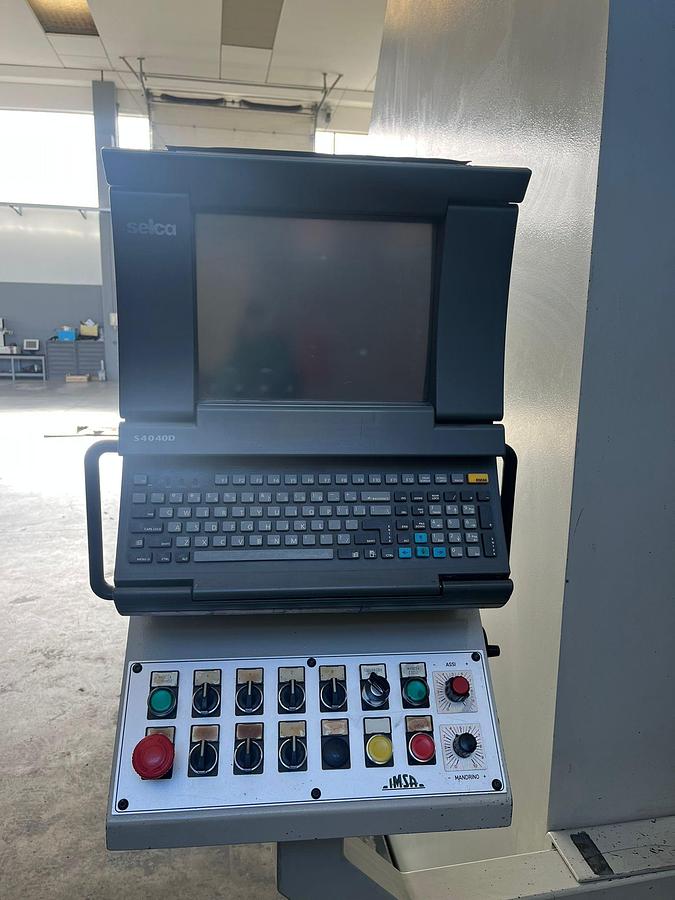

WORKING RANGE, Longitudinal (X) 1250 mm, Vertical (Y) 1000 mm, Transversal (Z) thread axis 380 mm, Drilling depth (V) 1000 mm, Drilling head inclination ( C) +/-20 °, Table rotation (B) 360,000x0.001 °, Workpiece approach (W) 500 mm, CNC, Measuring system optical scales, CNC SELCA 4040D, DRILLING UNIT, Min-max diameter from solid 5-40 mm, Spindle power 10 Kw, Rotation speed 4.200 Rpm, Drilling type gundrill, Drilling head inclination ( C) 40 (+/-20) °, FEEDS, X rapid 10 m/min, Y rapid 10 m/min, Z rapid 10 m/min, V rapid 10 m/min, TABLE, Surface 1000x800 mm, Resolution (B axis) 0.001 °, Static capacity 4.000Kg / dynamic 8.000 Kg, COOLANT SYSTEM, Tank capacity 650 l, EXTRA, Total installed power 30 Kw, Machine weight 17.500 Kg, Machine dimensions 5000x2600x3300 mm, Information about technical data are not binding., Machine available subject to prior sale.
Verkäufer Angebot Nr. resale FR339
