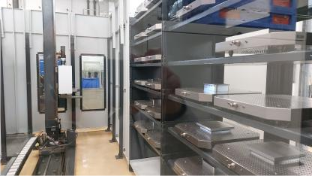

INDUNORM Indumatik 150

Manufacturer: Indunorm

Year of Manufacture: 2015

Model: Indumatik MZA-006

Type of Machine: Linear Pallet Handling System

Technical Specifications:

- Control: induCell
- Power Consumption: 3 kVA
- Current: 5A
- Power Supply: 400V AC
- Compressed Air Connection: Greater than 6 bar
- Machine Weight: 1,600 kg
- Dimensions: Approximately 6,100mm x 3,510mm
- Axes: 5 axes total. X-axis, Y-axis, Z-axis and C-axis active. A-axis and B-axis not present.
- Cooling System: None
- Pallet Spaces: 32
- Pallet Size: 500 x 500mm
- Handling Weight: 150 kg
- Pallet Change: Yes
- Operating Hours: No operating hour counter installed
- Scope of Delivery: Complete handling system
- Note: This system was previously operated with a DMG MORI DMU50. The DMU50 is not included in this sale.
