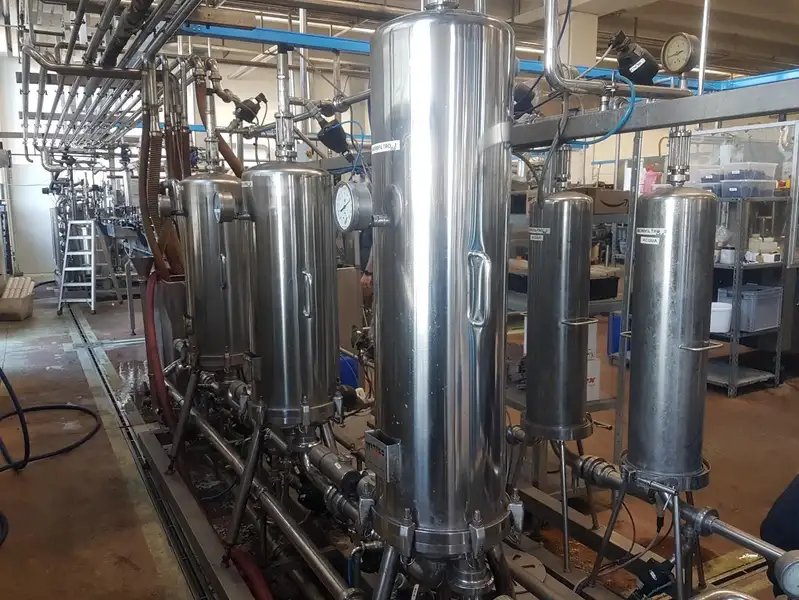

INNOTEC Intecsteril Automa

Used Automatic Microfilter Innotec 1997 INTEC MICROFILTER NOW INNOTEC Automatic Microfilter year 1997 CE marked, INNOTEC, on SKID dimensions 3,7m x 1,5m. – Process speed at 10,000 bottles/h controlled with litre-counter – 3 Housings of microfiltration 12 candles 30″ and one of 40″ Connection code 7 – 2 Housings for water filtration for rinsers and washes with 5 candles 30” connection code 7 – Siemens S7 PLC with network card for remote control with VPN, expandable, because it was replaced with a more powerful one because it was full, new operator panel – Bubble test with automatic drains and TEST OK report, in order to have the machine ready to start in the morning -Steam inlet to sterilize the filler with automatic valve and inserted in the cycles that can be modified – Weekly programming of washing starts, production cycles, sanitization, sterilization, membrane washing, all modifiable – Automatic DOSATRON pumps for Hypochlorite, Peracetic and Soda – All valves have feedback to know if they are open and closed and respect recipes without errors of valves not under control. – Graphs of pressure, temperatures and valve positions over time, in order to be able to analyze the process contextualised over time
Verkäufer Angebot Nr. resale AT75
