ITALPRESSE Through Feed Press Line Linie drücken

Technical Description

- Model: MARK/C 20-32.5
- Manufacturer: ITALPRESSE
- Year of Manufacture: 2003
- Line Function: Designed for laminating veneer on chipboard, MDF, and plywood panels.

---------------------------------------------------------------

Components of the Line

Vacuum Loading Unit:

- For loading thin panels from the scissor lift into the brushing machine.
- Passage Width: 2000 mm.
- Translation Speed: Adjustable 7–35 m/min.
- Cycle per Minute: 3–5 (depending on panel size).
- Suction Cups: 6.

Brushing Machine:

- Working Width: 2000 mm.
- Max Opening Height: 100 mm.
- Rollers: 2 motorized brushing rollers (180 mm diameter), 2 forwarding rollers (125 mm diameter).

Glue Spreader (Brand: Osama):

- 2 spreading rollers, 2 dosing rollers.
- 4 motors.

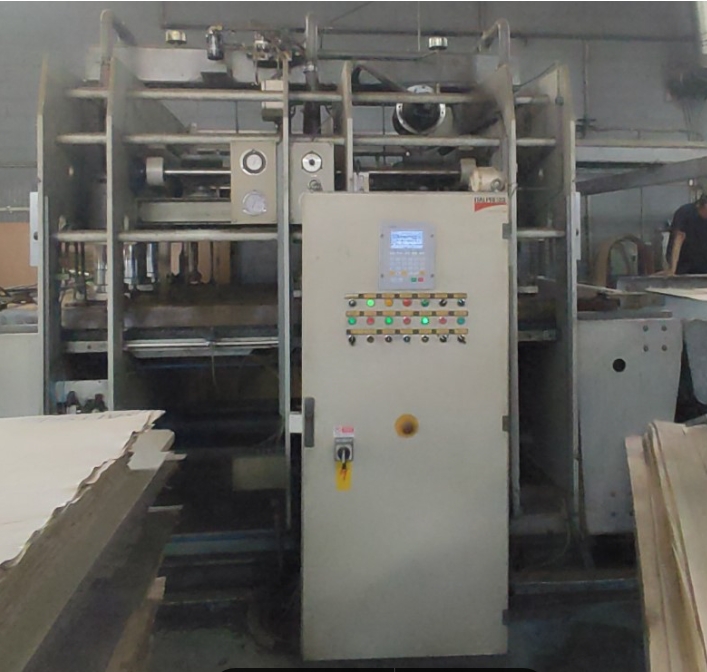

Automatic Press:

- Model: MARK/C 20-32.5.
- Platens Dimensions: 2000 × 3250 mm.
- Daylight Opening: 140 mm.
- Thrust: 390 tons.
- Specific Pressure: 7.5 kg/cm² on 80% of the surface.
- Heating: Diathermic oil (heating system not included).
- Pistons:
- 9 pressure pistons (150 mm diameter).
- 4 movement pistons.
- Stroke: 140 mm.
- Additional Features:
- Upper platen belt shaker.
- Planarity control.
- Down stroking brake.

Unloading Device:

- Dimensions: 2000 × 4000 mm.
- Translation Speed: 20–40 m/min.
- Synchronized with the pressing belt.

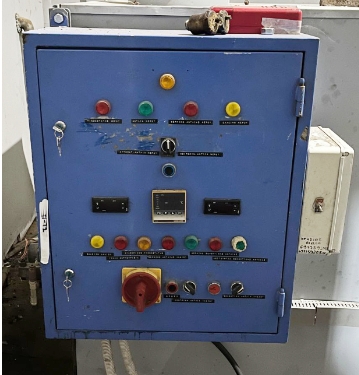

Control Board:

- Includes electrical and programmable logic controls.
- Voltage: 400 V / 50 Hz, 3-phase.

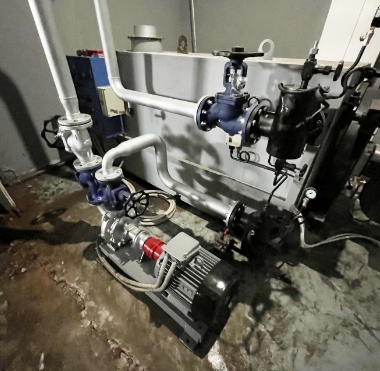

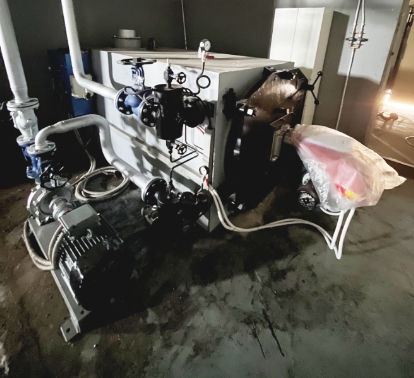

Heating System with Diathermic Oil (Optional):

- Electric heating boiler: 900 kW.
- Riello oil burner: 860 kW, 2-step flame.

The Lifting table is NOT included in the offer.
