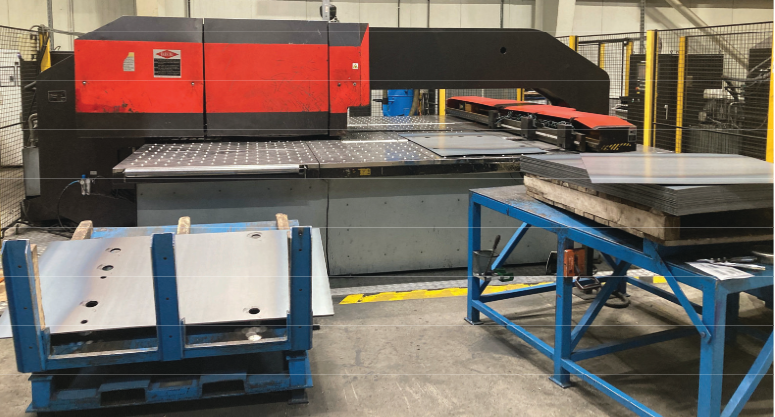

Jiangsu Jinfangyuan VT-300

Manufacturer: Jiangsu Jinfangyuan

Model / Type: VT-300

Type of Machine: Sheet-Metal Punching Machine (Turret Punch Press)

Year of Manufacture: 2007

Technical Specifications:

- Overall Dimensions: Length 6120mm, Width 4000mm, Height 2340mm

- Own Weight: 18000 kg

- Electrical Cabinet Dimensions: Length 930mm, Width 800mm, Height 1780mm

- Supply Voltage: 400/230 V (50 Hz)

- Control Voltage: 24 V DC

- Matching Transformer Type: GSG 30 kVA TH

- Matching Transformer Primary Voltage: 380/415/460 V AC 50/60 Hz

- Matching Transformer Secondary Voltage: 200-230 V AC

- Total Rated Power: 40 kVA

- Rated Current: approx. 80.0 A

- Main Protection Current: 100.0 A

- Electrical Rating Plate Model: VT-300

- Electrical Rating Plate Voltage: 4x400 V AC / 50 Hz

- Electrical Rating Plate Rated Power: 28 kVA

- Enclosure Protection Rating: IP54

- Hydraulic Power-Unit Motor Power: 11/13.2 kW

- Hydraulic Power-Unit Motor Speed: 1450/1740 min-1

- Motor Enclosure Protection Rating: IP55

- Oil-Cooler Type: AP 300/Z

- Hydraulic System Operating Pressure: 280 bar

- Max Punching Force: 300 kN

- Max Sheet Size: 1650 x 4000 mm

- Max Sheet Thickness: 6.35 mm

- Max Punched-Hole Diameter: 88.9 mm

- Tool Magazine Capacity: 32 pcs

- Max Magazine Rotation Speed: 600 min-1
