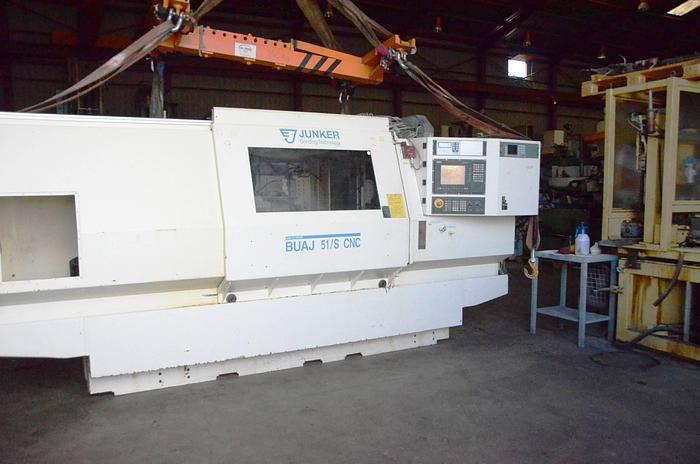

JUNKER BUAJ 51-S CNC

Distance between points: 1000 mm, Ø max to be rectified: 400 mm, Maximum length to be rectified: 600 mm, Max travel Z axis: 1300 mm, Max travel X axis: 378 mm, Height of points: 205 mm, Ø of the grinding wheel: 600 mm, Grinding wheel width: 63 mm, Maximum width of grinding wheel: 125 mm, Grinding wheel hole Ø: 203 mm, cnc brand: SIEMENS, cnc model: 840D, Main engine power: 22 Kw, Grinding wheel speed: 45 m/s, tailstock cone: mk5, Counterpoint tour: 100 mm, Workpiece head cone: mk5, Workpiece head rotation: 90º, Maximum piece weight: 300 Kg, Working accuracy of the machine: IT4 ISO, Fine taper adjustment +/-: O, 1 mm/a, speed of the working feed of the table: from 0 to 7.5 m/min, Plan dimensions: 4500x3000x2500 mm, Weight approx.: 8000 Kg
