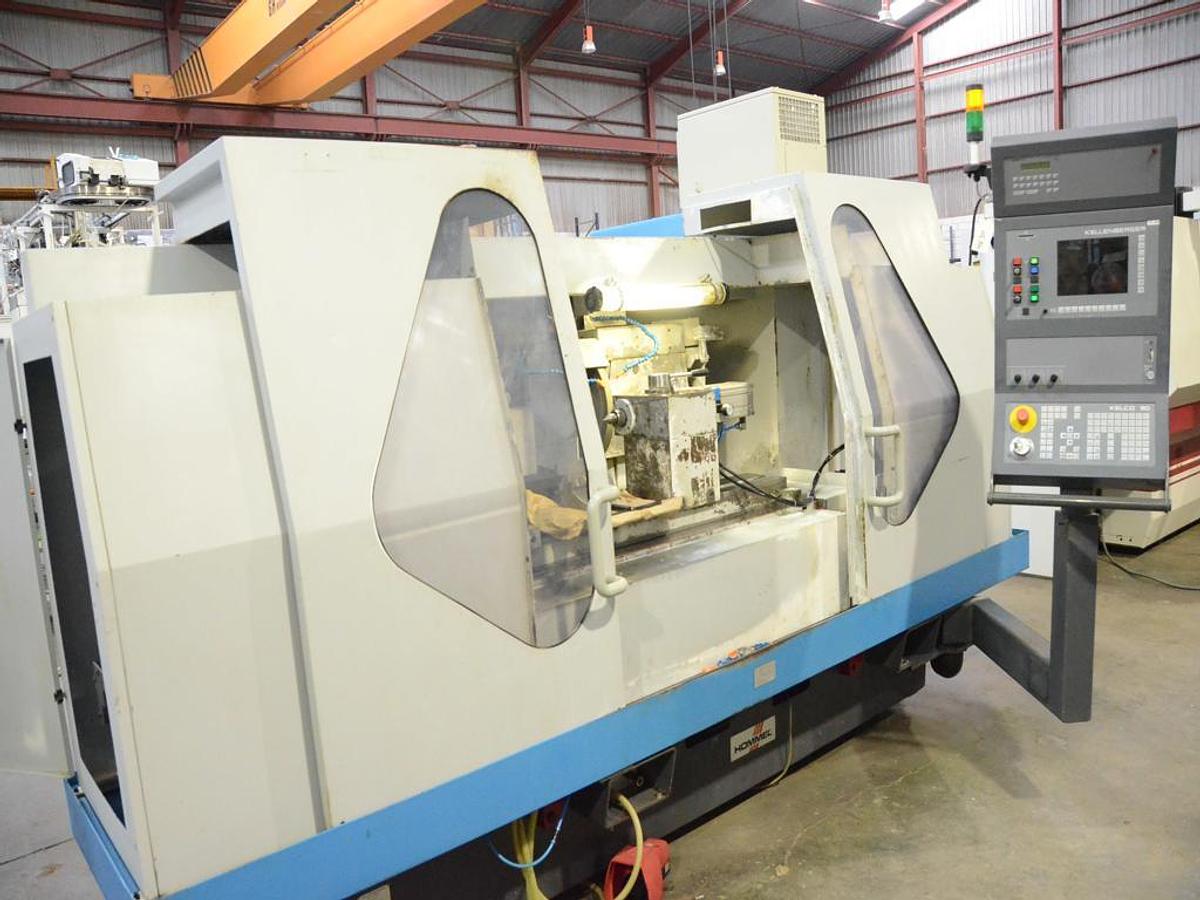

Zylinderschleifmaschinen KELLENBERGER KEL VARIA UR 250-1000 CNC

Distance between points: 1000 mm, Height of points: 250 mm, Axis B: Accuracy 0.1 , CNC brand: Kelco , CNC model: 90, Left grinding wheel dimensions (OD x ID x W): Ø400 x Ø127 x 63 mm, Right grinding wheel dimensions (OD x ID x W): Ø400 x Ø127 x 50 mm, Rotation of the workpiece head: -30º +120º , Workpiece holder head cone: MK 5, Max. workpiece weight between points: 150 Kg, tailstock cone: MK 4, Counterpoint reed route: 50 mm, Max tangential speed: 32 m/s, High-frequency internal grinding spindle: Ø120 mm, High-frequency internal grinding spindle brand: WARNER model K 3.000, Main engine power: 7.5 Kw, Total power: 26.5 Kw, Max travel Z axis: 1.150 mm, Max speed Z axis: 15 m / min, Work table rotation: 0º to 9º, Max travel X axis: 320 mm, Max speed X axis: 7.5m/min, Long: 3600 mm, Width: 2000 mm, Weight approx.: 5.000 Kg
Verkäufer Angebot Nr. resale 4630
