KOCH

Manufacturer: KOCH

Type of Machine: Robotic Carton Palletizing System

Year of Manufacture: 2023

Intended Use: Palletizing of cartons. Designed for 2-shift operation, 16 operating hours per day, up to 5 days per week.

Performance: Maximum 156 products per hour, 15 load carriers per hour, 1 product per grip

Stacking Pattern: 4 to 5 products per layer, 2 layers per load carrier, 1 protective layer per load carrier

Technical Specifications:

- Maximum Height Including Load Carrier: 1,989mm
- Maximum Weight Including Load Carrier: 800 kg
- Robot Component - Series:axis system
- Robot Component - Year of Manufacture: 2022
- Robot Component - Weight: 68,000 N (without drives)
- Robot Component - Load Capacity: 150 kg
- Robot Component - Maximum Payload: 36 kg
- Packaging Unit Specification: Closed, dimensionally stable cartons. Item 1 dimensions 585 x 343 x 425mm, weight 36 kg. Item 2 dimensions 585 x 485 x 425mm, weight 36 kg.

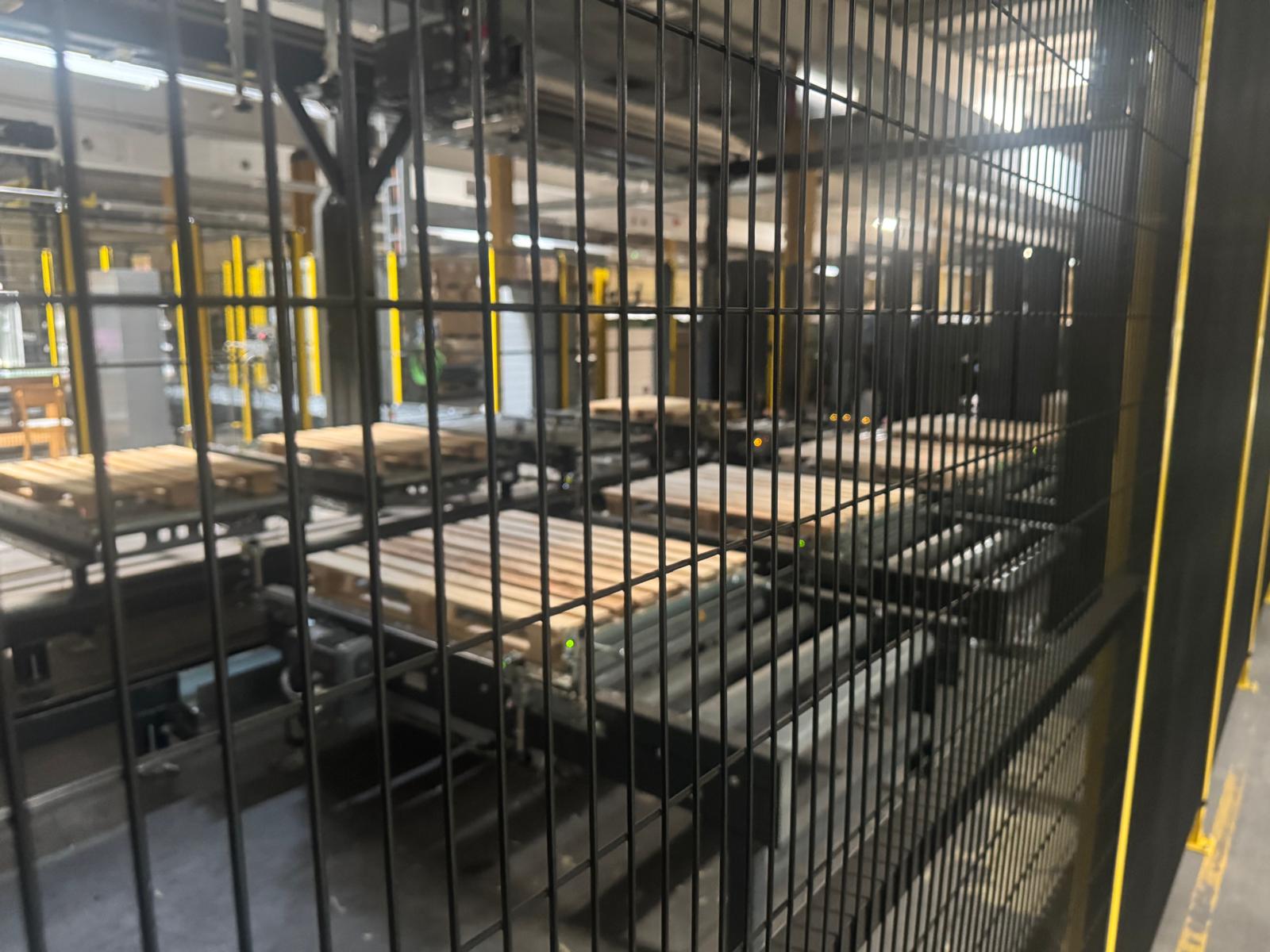

- Load Carrier Specification: Type CP1 reusable pallets, mixed new and used quality.
- Dimensions 1,200 x 1,000 x 138mm, weight 22 kg. Maximum 15 units per magazine.
- Protective Layer Specification: Chipboard material, moisture-sealed. Dimensions 1,200 x 1,000 x 10mm.

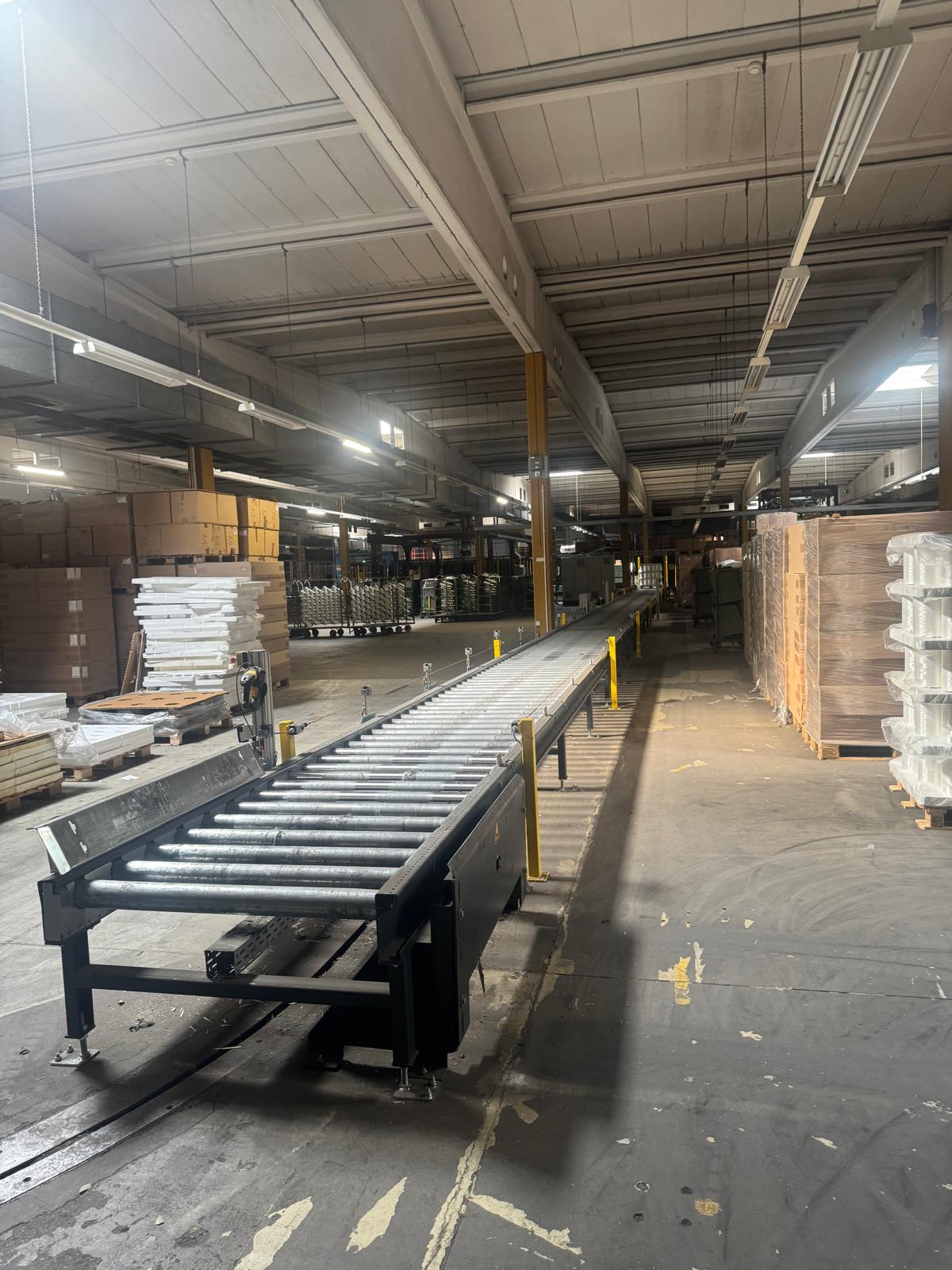

- Full Pallet Conveyor: Roller conveyor type. Conveying height 600mm. Usable width 1,060mm.
- Conveying speed 0.15 m/s. Maximum full pallet weight 1,000 kg.
- Electrical Specification: Supply voltage 400V AC. Mains frequency 50Hz. Control voltage 24V
- DC. Mains type TN-S (L1, L2, L3, N, PE). Protection class IP54.
- Pneumatic Specification: Specified input pressure 6 bar. Maximum allowed input pressure 10 bar. Minimum input pressure 5 bar. Air condition: dry, oil-free.
- Environmental Requirements: Maximum ambient temperature +35C. Minimum ambient temperature +10C. Maximum temperature change 1.1 K per minute. Maximum relative humidity 70 percent. Atmosphere: dry, slightly dusty, non-aggressive, non-abrasive.

Explosion-free zone required
