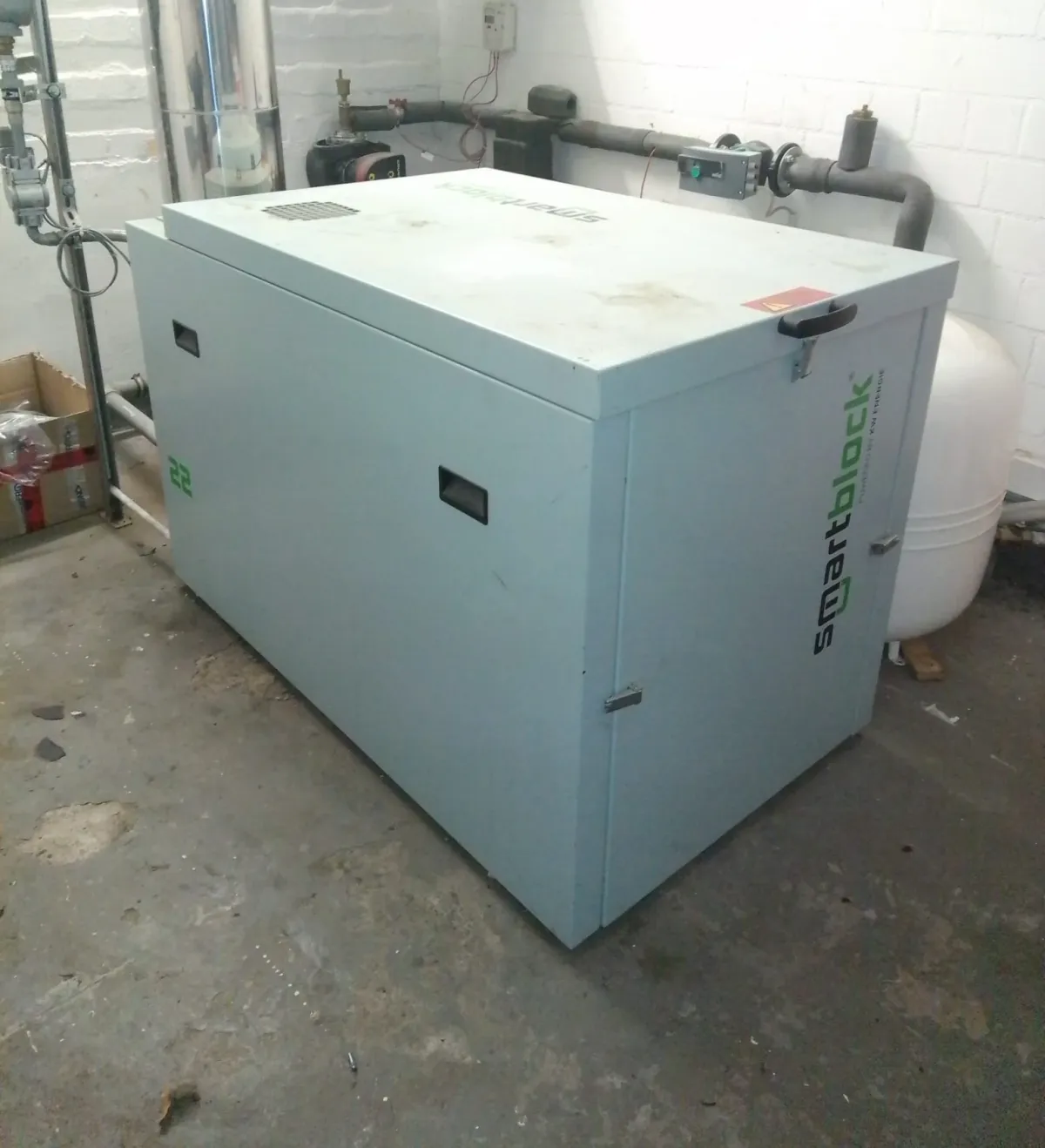

KW Energie Smartblock OOO

Manufacturer: KW Energie

Model: Smartblock

Year of Manufacture: 2014

Type of Machine: CHP Plant

Operating Hours: 17,000

Fuel Type: Natural Gas

Engine: Kubota

Electrical Output: 22 kW

Thermal Output: 50 kW (with condensing boiler use)

Fuel Input: 68.4 kW

Condition: Fully functional

Motor Data

- Model: Kubota R24
- Type: Four-Stroke Otto Engine
- Cylinder Count: 4
- Displacement: 2.4 Liters
- Nominal Speed: 1500 rpm

Efficiency Data

- Total Efficiency: 105.3%
- Electrical Efficiency: 32.2%
- Thermal Efficiency: 73.1%
- Primary Energy Savings: 34.1%
- Primary Energy Factor: 0.36
- Overall Annual Utilization Rate: 105.3%

Gas Connection Data

- Gas Supply Pressure: 20-50 mbar
- Gas Flow Pressure: 16 mbar
- Volume Flow (at 0°C, 1013 mbar): 6.8 Nm³/h

Temperature Data

- Flow Temperature: Max. 85°C
- Return Temperature: Max. 65°C
- Combustion Air Demand: Min. 75 m³/h
- Room Air Temperature: 5°C to Max. 35°C

Exhaust Gas Emissions

- CO (Carbon Monoxide): 29 mg/m³
- NOₓ (Nitrogen Oxides): 54 mg/m³
- Exhaust Gas Temperature: ~50°C
- Exhaust Gas Volume Flow: ~83 m³/h
- Exhaust Gas Mass Flow: ~80 kg/h
- Exhaust Gas Back Pressure: Max. 5 mbar

Noise Level

- Sound Pressure Level (BHKW): ~56 dB(A) at 1m

BHKW Dimensions, Weight, and Connections

- Dimensions (L × W × H in m): 1.41 × 0.82 × 0.98
- BHKW Weight: 895 kg
- Heating Water Connections (Flow/Return): 1
- Exhaust Connection: DN100
