Hydraulische Presse LAUFFER 400 T

Manufacturer: Lauffer

Model: 400 T

Year of Manufacture: 1992

Type of Machine: Hydraulic Press

- column-guided, but (without die cushion)

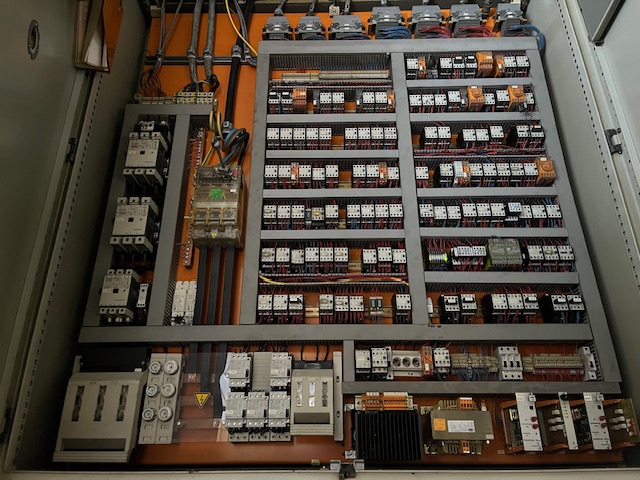

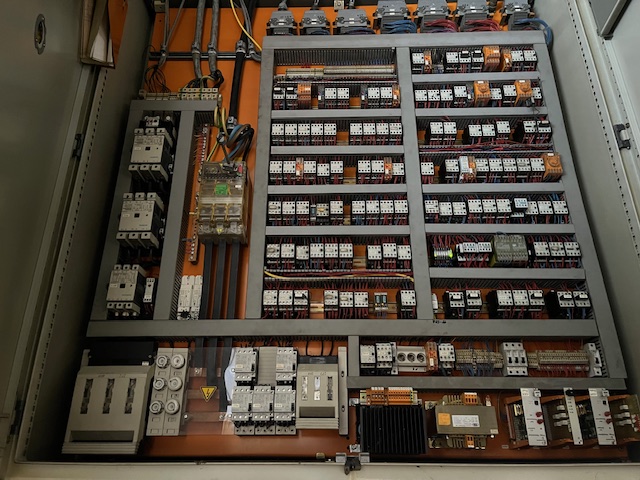

- contactor control
- digital position measuring system,

Technical Data

- Max. Pressing Force: 4000 kN
- Max. Return Force: 340 kN
- Ram Stroke: 500 mm
- Installation Height (Platen/Ram): 1100 mm
- Column Clearance (Front/Side): 1200 mm / -
- Table Size: 1200 × 800 mm
- T-Slots on Table (DIN 650): 22 H11 mm
- Table Height: 850 mm
- Ram Surface: 1200 × 800 mm²
- T-Slots on Ram (DIN 650): 22 H11 mm
- Drive Power: 76 kW
- Max. Operating Pressure: 290 bar
- Control Pressure: 90 bar
- Machine Weight: 23000 kg
