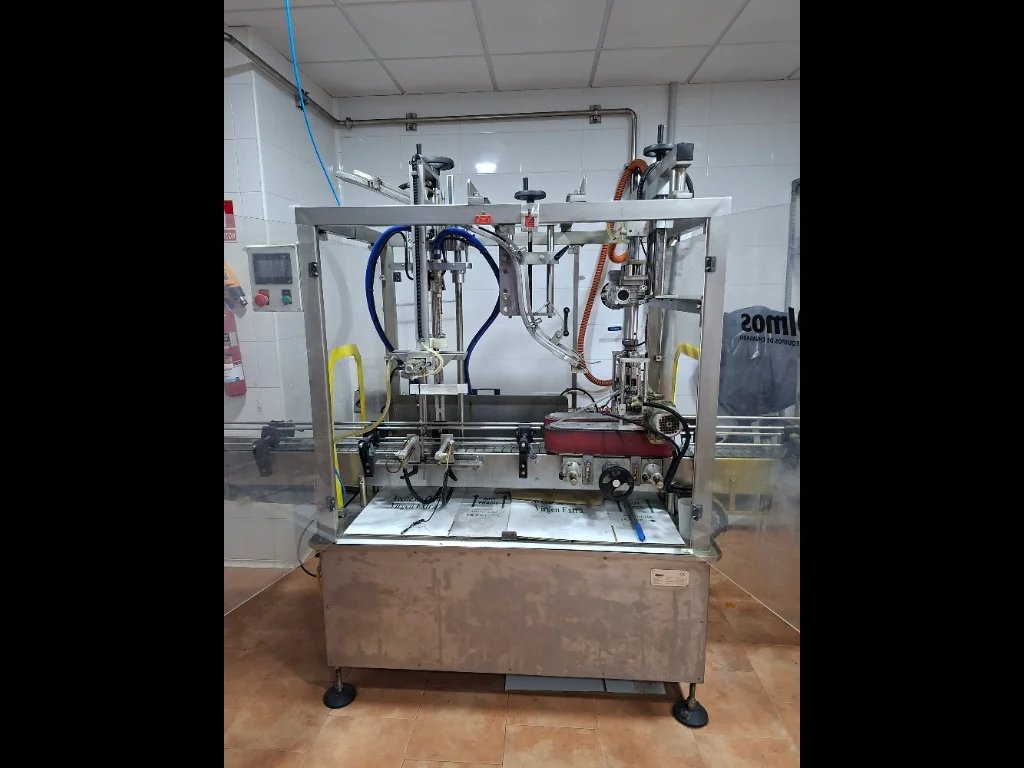

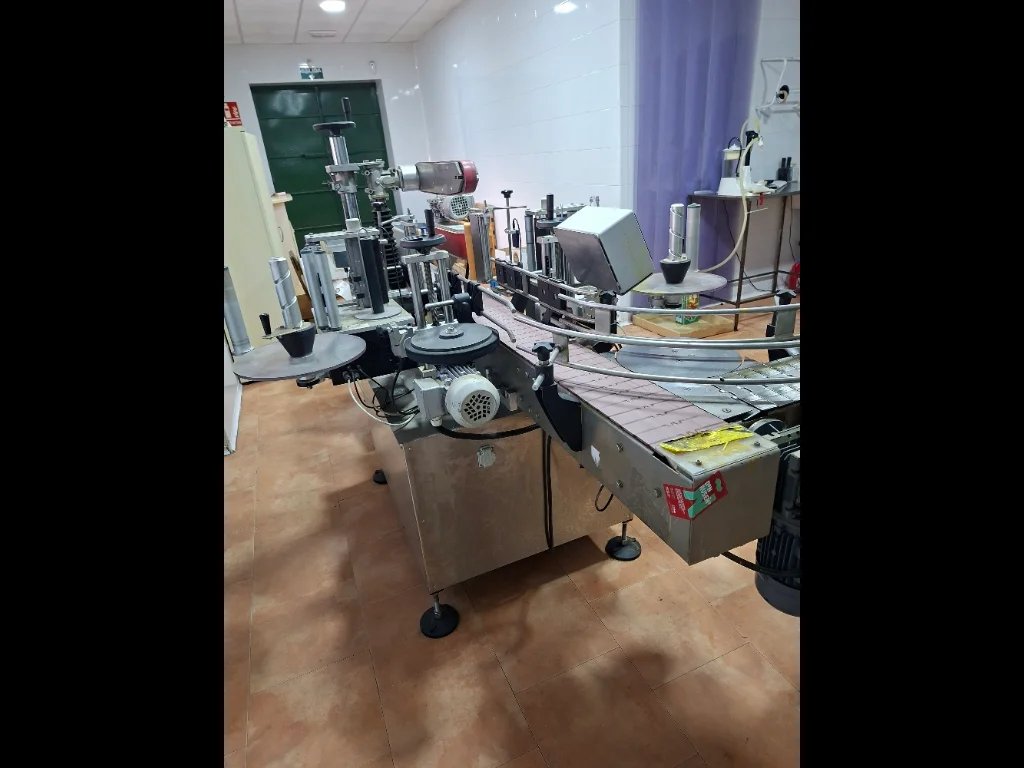

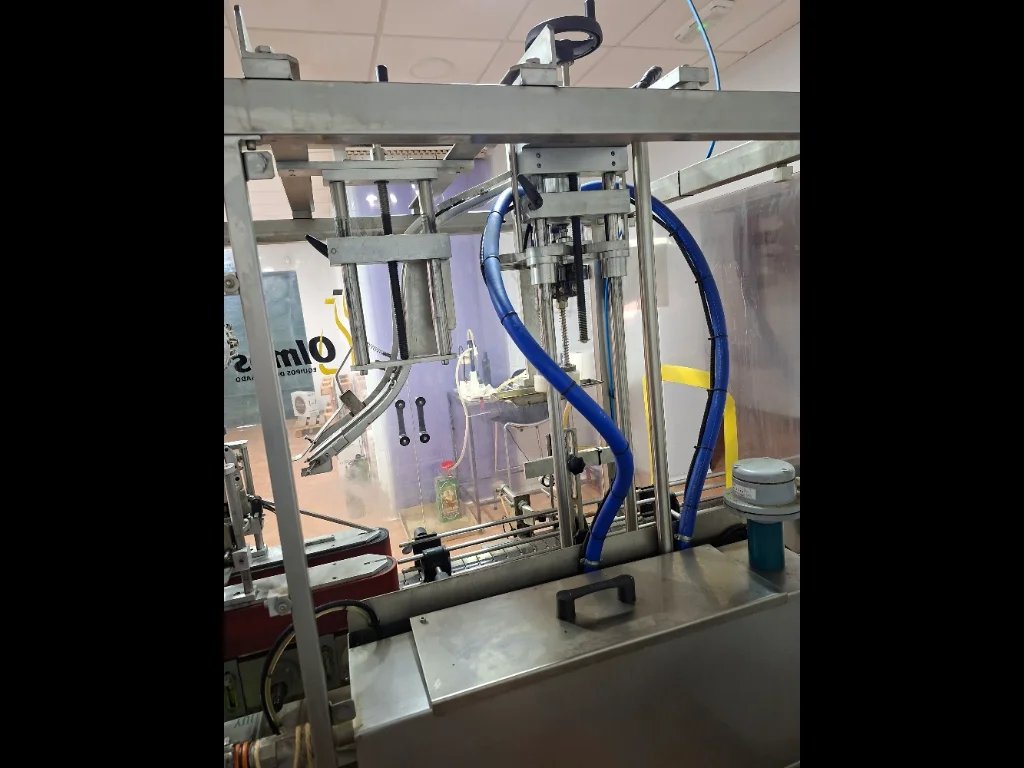

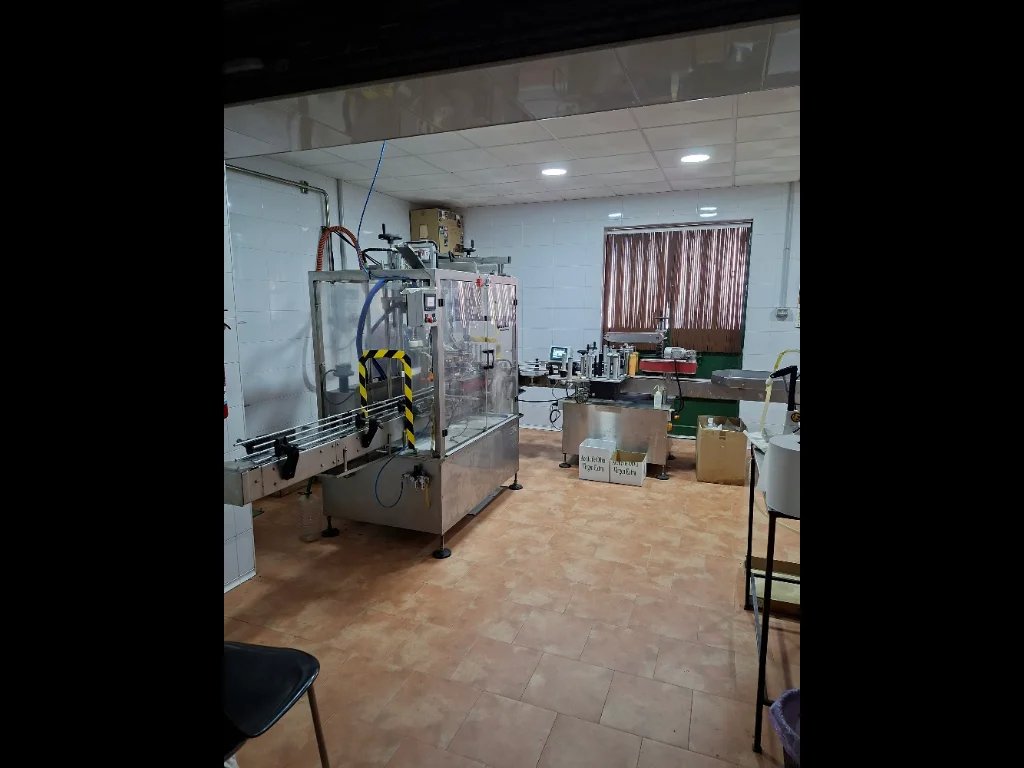

Used OLMOS compact eco2 bottling line, pet & glassTechnical
Specifications & Performance DataOlmos COMPACT 800 2 is an in-line
labeling and capping machine designed for bottle handling in
industrial packaging and beverage production environments. Its
double-position inlet configuration supports continuous integration
within a bottling line, combining labeling and capping operations in
one machine.Manufacturer: OlmosModel: COMPACT 800 2Manufacturing year:
2012Bottle formats: compatible with 0.5L to 5.0L bottlesContainer
materials: PET and GlassFunctions: in-line labeling and cappingMains
voltage: 380V ACAdvanced Automation & Control SystemsThe machine is
configured for in-line operation, allowing the labeling and capping
stages to be incorporated into a coordinated bottle-handling process.
The double-position inlet is intended to support controlled bottle
entry and reliable transfer through the operating stations. Electrical
supply is specified as 380V AC.Production Line Integration
CapabilitiesThis used bottling line component is suitable for
integration with upstream filling, rinsing or bottle conveying
equipment and downstream inspection, secondary packaging or
palletizing systems. The machine handles PET and Glass bottles from
0.5L to 5.0L, providing format flexibility for beverage production and
other bottled products. Its combined labeling and capping arrangement
can help simplify line layout by bringing two key packaging operations
together in one in-line unit.Machine
type/categoryManufacturer/modelYearLabeling MachineOlmos COMPACT 800
22012Capping MachineOlmos COMPACT 800 22012Machine Condition &
Maintenance HistoryThe machine is described as being in perfect
working condition. This operational condition makes it relevant for
second hand bottling equipment projects where a combined labeling and
capping solution is required for PET or Glass bottle
formats.Operational Performance & VersatilityThe COMPACT 800 2
combines labeling and capping in line for bottles ranging from small
0.5L formats through to 5.0L containers. This versatility supports
production lines that require different bottle capacities while
maintaining an integrated industrial packaging flow. PET and Glass
compatibility makes the machine applicable to a range of beverage
production layouts.Installation Requirements & Site
PreparationInstallation should provide an in-line conveyor interface
matched to the bottle formats, container material and production flow
of the existing packaging machinery. The electrical connection must be
prepared for the specified 380V AC mains supply. Bottle guides,
transfer points and operating settings should be adjusted and verified
for the selected PET or Glass bottle format before production
start-up.Safety Standards & Compliance CertificationThe Olmos machine
data plate displays a CE mark. During installation and commissioning,
guarding, electrical connections, emergency-stop functions and
bottle-transfer areas should be checked as part of the site safety
procedure. Proper adjustment of the in-line labeling and capping
stations supports safe and consistent operation in industrial bottling
applications.
