Müller Machinery GB 180 Kettenbagger

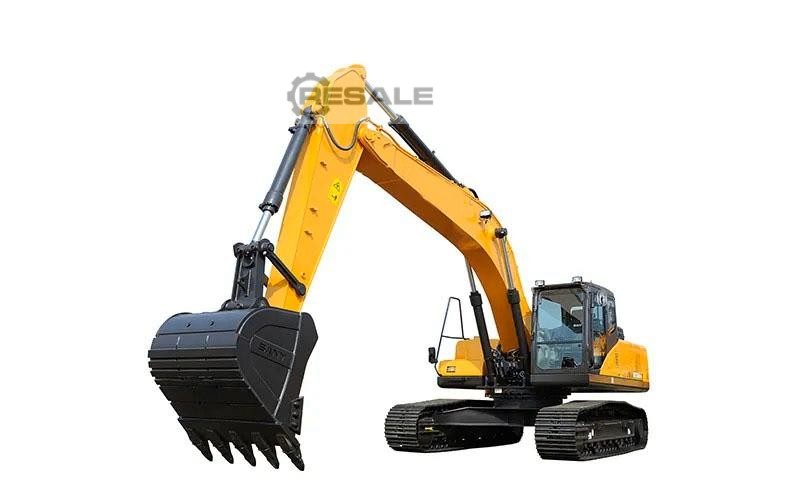

The GB 180 crawler excavator is engineered for serious excavation, lifting, and heavy-duty operations.

Operating Weight: 18,000 kg

Engine: Cummins QSF3.8 (EURO-compliant)

Power Output: 93 kW (125 HP) at 2200 rpm

Hydraulic Pump: Hengli high-pressure hydraulic pump

Control Valves: Husco precision control valves

Swing Motor: Eaton or Sunjin (Korea)

Traveling Motor: Eaton or PMP

Hydraulic System Pressure: 28 MPa

Bucket Capacity: 0.8 m³

Bucket Digging Force: 98 kN

Arm Digging Force: 68 kN

Swing Speed: 0–12 rpm

Travel Speed: 2.8–4.2 km/h

Gradeability: 30°

Overall Length: 8,540 mm

Overall Width: 2,720 mm

Overall Height: 2,920 mm

Undercarriage Width: 2,720 mm

Ground Clearance: 480 mm

Track Width: 600 mm

Maximum Digging Radius: 8,985 mm

Maximum Digging Depth: 5,975 mm

Maximum Digging Height: 9,430 mm

Maximum Dumping Height: 6,960 mm

Tail Swing Radius: 2,570 mm

Front Minimum Swing Radius: 1,720 mm
