Verlängerungsarm passend zu 6 - 10 t Minibagger
Baumaschinen › Bagger

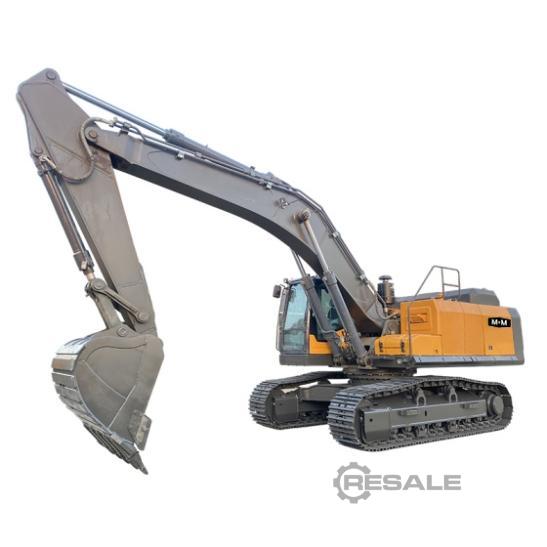

Müller Machinery GB 230 Kettenbagger
NeumaschineGeprüfter Anbieter
1 / 1
Technische Daten
· ID 167163865Baumaschinen Bagger Kettenbagger
- Preis
- 135.100 € VB netto
- Zustand
- Neumaschine
- Baujahr
- 2025
- Standort
- 61-806 Poznan
Identifikation
HerstellerMüller Machinery
ModellGB 230
Technik
Stückzahl1
Beschreibung
Operating Weight: 23,000 kg
Engine: Cummins QSB7 (EURO V compliant)
Power Output: 124 kW (166 HP) at 2050 rpm
Hydraulic Pump: PNM high-performance pump
Control Valves: Parker hydraulic control valves
Swing Motor: Sunjin (Korea)
Traveling Motor: Doosan
Hydraulic System Pressure: 34 MPa
Bucket Capacity: 1.1 m³
Swing Speed: 0–13 rpm
Traveling Speed: 3.8–4.2 km/h
Gradeability: 30°
Maximum Digging Radius: 9,936 mm
Maximum Digging Depth: 6,550 mm
Maximum Digging Height: 9,680 mm
Maximum Dumping Height: 6,730 mm
Overall Length: 9,565 mm
Overall Width: 2,990 mm
Overall Height: 3,000 mm
Track Width: 600 mm
Track Height: 950 mm
Engine: Cummins QSB7 (EURO V compliant)
Power Output: 124 kW (166 HP) at 2050 rpm
Hydraulic Pump: PNM high-performance pump
Control Valves: Parker hydraulic control valves
Swing Motor: Sunjin (Korea)
Traveling Motor: Doosan
Hydraulic System Pressure: 34 MPa
Bucket Capacity: 1.1 m³
Swing Speed: 0–13 rpm
Traveling Speed: 3.8–4.2 km/h
Gradeability: 30°
Maximum Digging Radius: 9,936 mm
Maximum Digging Depth: 6,550 mm
Maximum Digging Height: 9,680 mm
Maximum Dumping Height: 6,730 mm
Overall Length: 9,565 mm
Overall Width: 2,990 mm
Overall Height: 3,000 mm
Track Width: 600 mm
Track Height: 950 mm
