Horizontale CNC Bearbeitungszentren MANDELLI Spark 3500X

5-Axis Horizontal Machining Center with Pallet changer

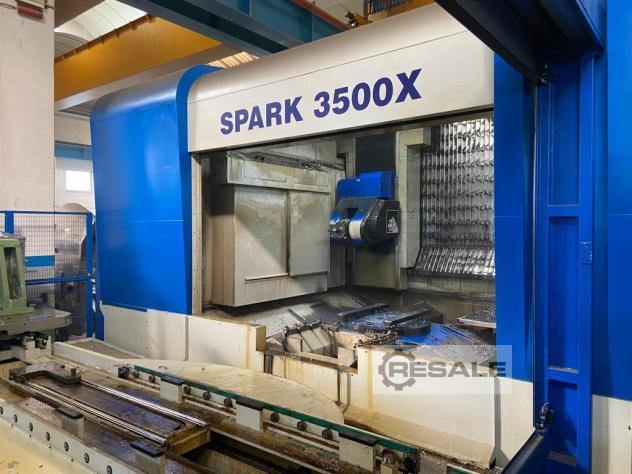

Mandelli Spark 3500X
New in 2018

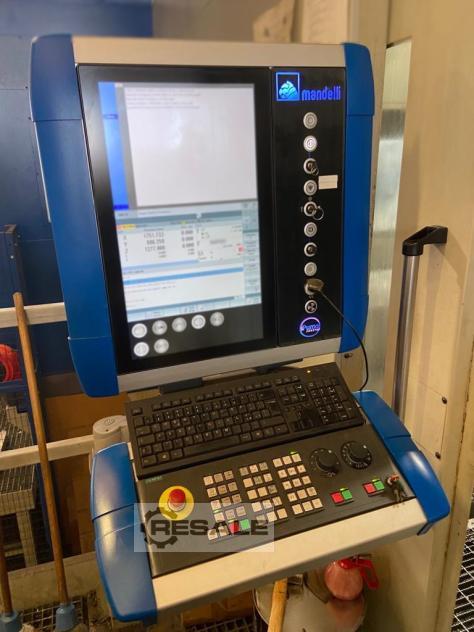

Siemens Sinumerik 840D control

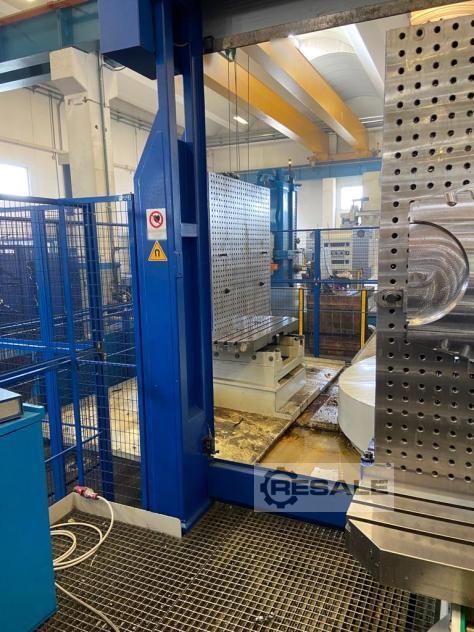

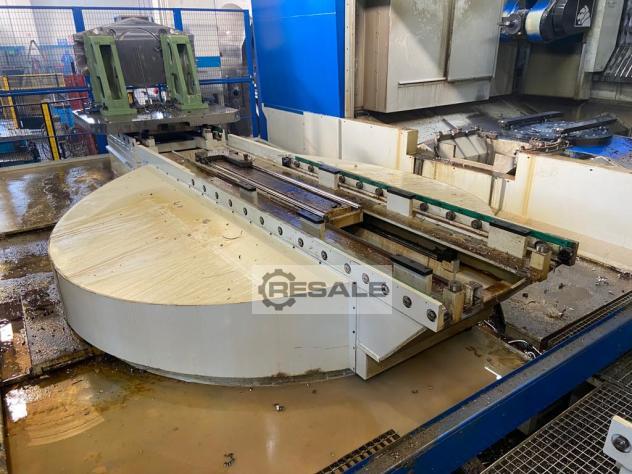

Number of pallets 2

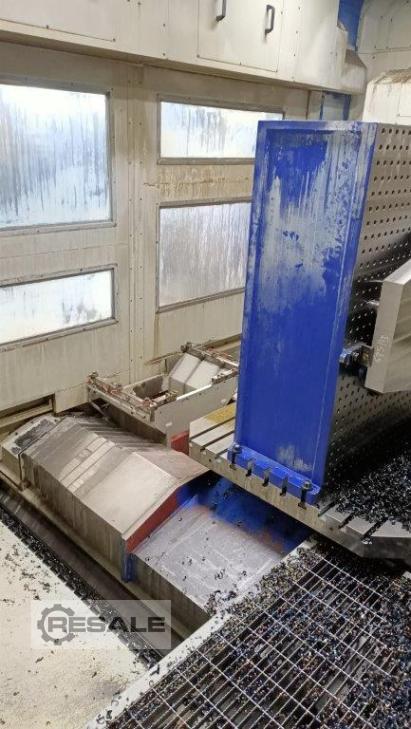

Pallet size 1250 x 1600 mm
Pallet load capacity max. 5100 kg

4th axis 0.001° NC rotary table

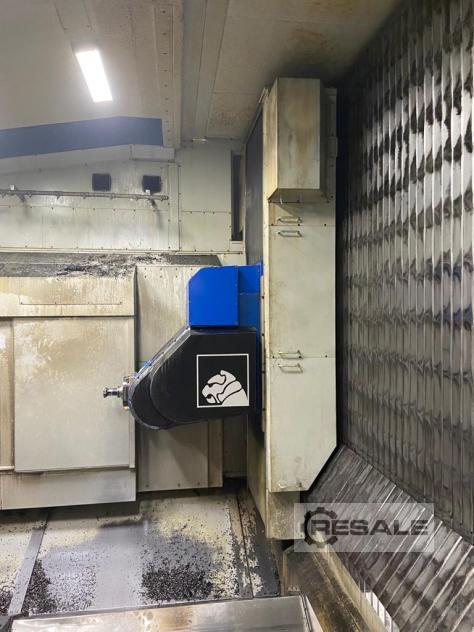

5th Axis NC-Tilting milling head A-Axis +80° ~ -120°

X 3500mm
Y 1850mm
Z 1800 mm

Feeds
X,Y,Z up to 20000 mm/min.
Rapids
X,Y,Z up to 35000 mm/min.

Tool taper HSK-A100
Spindle drive motor rating 46/67.7 kW
Spindle speeds up to 6000 rpm.
Spindle torque max. 1851 Nm

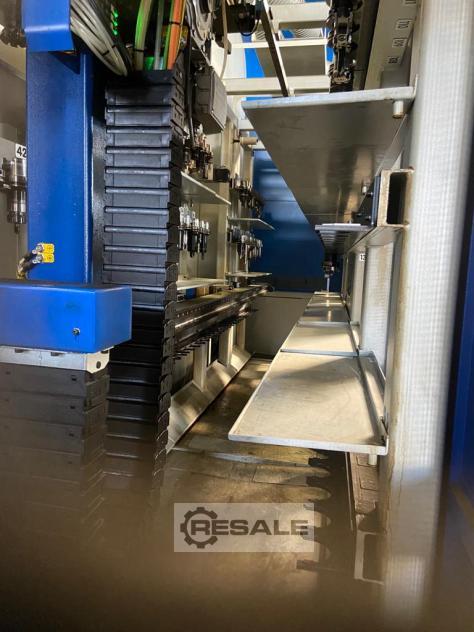

200 station tool magazine.
Tool diameter max. 120 mm/425 mm
Tool length max. 600 mm
Tool weight max. 35 kg

Coolant through the spindle 25/40/60 bar

Proposal Number MH-6234

Verkäufer Angebot Nr. resale MH-6234
