Technische Daten
· ID 166201478Metallbearbeitungs- und Werkzeugmaschinen Sonstige Metallbearbeitungsmaschinen
- Zustand
- gebraucht
- Standort
- Berlin, Germany
Identifikation
HerstellerMetallkraft
ModellMTBS 3100-40 D
Positionsnummer5824469
Technik
Stückzahl1
Beschreibung

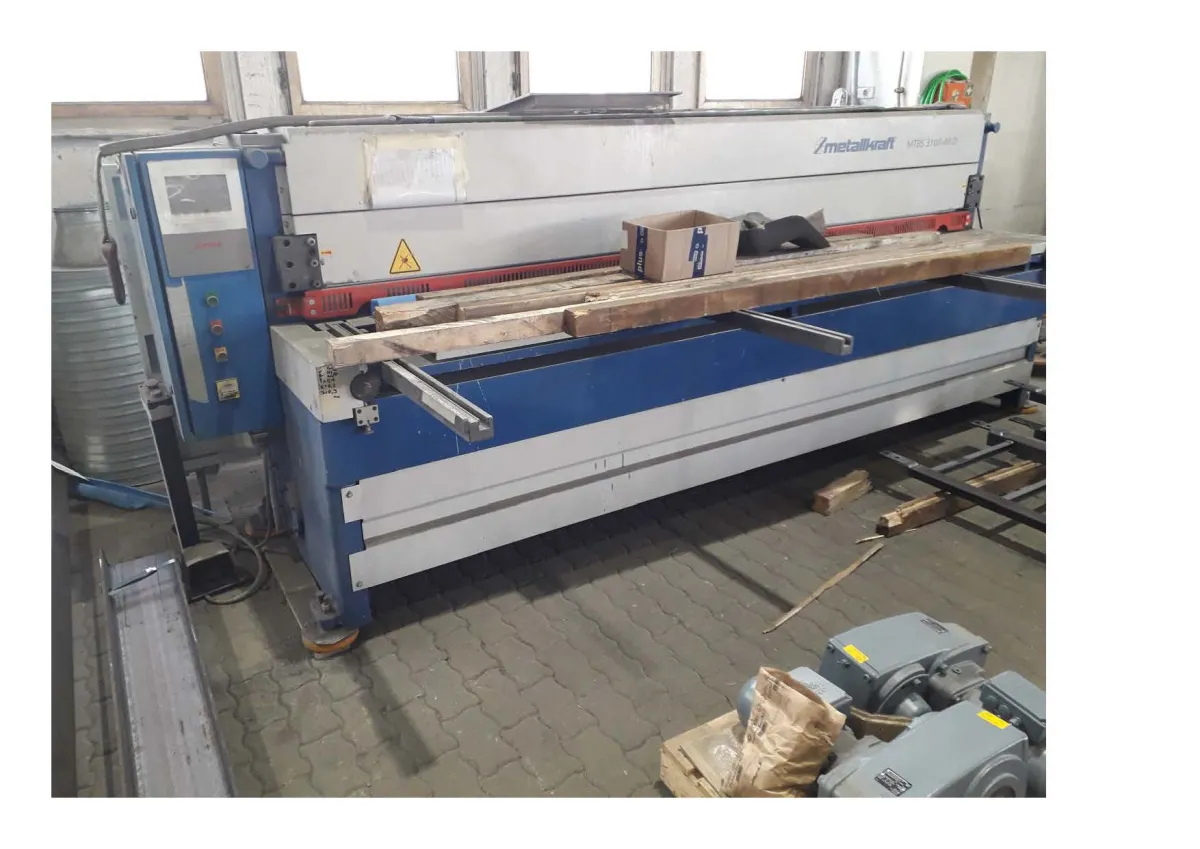

Metallkraft MTBS 3100-40 D
The Metallkraft MTBS 3100-40 D is a heavy-duty, motorized metal shear designed for industrial use.
Cutting Capacity:
Maximum cutting length: 3100 mm
Maximum sheet thickness: 4.0 mm
Construction and Design:
Heavy and stable welded construction
Low cutting angle (1.3 degrees) for minimal distortion and burr-free cuts
Equipped with plastic-coated material hold-downs, manually adjustable width stop, and angle stop
Motor and Performance:
Motor power: 7.5 kW (10 HP)
Voltage: 400 V, 3-phase
Cutting speed: 42 cuts per minute
Dimensions and Weight:
Overall dimensions: 3650 mm x 2260 mm x 1330 mm
Weight: Approximately 3600 kg
Additional Features:
Electrically adjustable rear stop up to 750 mm (optional up to 1000 mm)
Ergonomic working height
Self-lubricating and adjustable slideways
High-quality roller bearings
Operated via foot pedal, allowing hands-free material handling
Built according to CE standards, ensuring safety and compliance
Find more here - .ucymachines/
Contact us at - sales@ucymachines
The Metallkraft MTBS 3100-40 D is a heavy-duty, motorized metal shear designed for industrial use.
Cutting Capacity:
Maximum cutting length: 3100 mm
Maximum sheet thickness: 4.0 mm
Construction and Design:
Heavy and stable welded construction
Low cutting angle (1.3 degrees) for minimal distortion and burr-free cuts
Equipped with plastic-coated material hold-downs, manually adjustable width stop, and angle stop
Motor and Performance:
Motor power: 7.5 kW (10 HP)
Voltage: 400 V, 3-phase
Cutting speed: 42 cuts per minute
Dimensions and Weight:
Overall dimensions: 3650 mm x 2260 mm x 1330 mm
Weight: Approximately 3600 kg
Additional Features:
Electrically adjustable rear stop up to 750 mm (optional up to 1000 mm)
Ergonomic working height
Self-lubricating and adjustable slideways
High-quality roller bearings
Operated via foot pedal, allowing hands-free material handling
Built according to CE standards, ensuring safety and compliance
Find more here - .ucymachines/
Contact us at - sales@ucymachines
