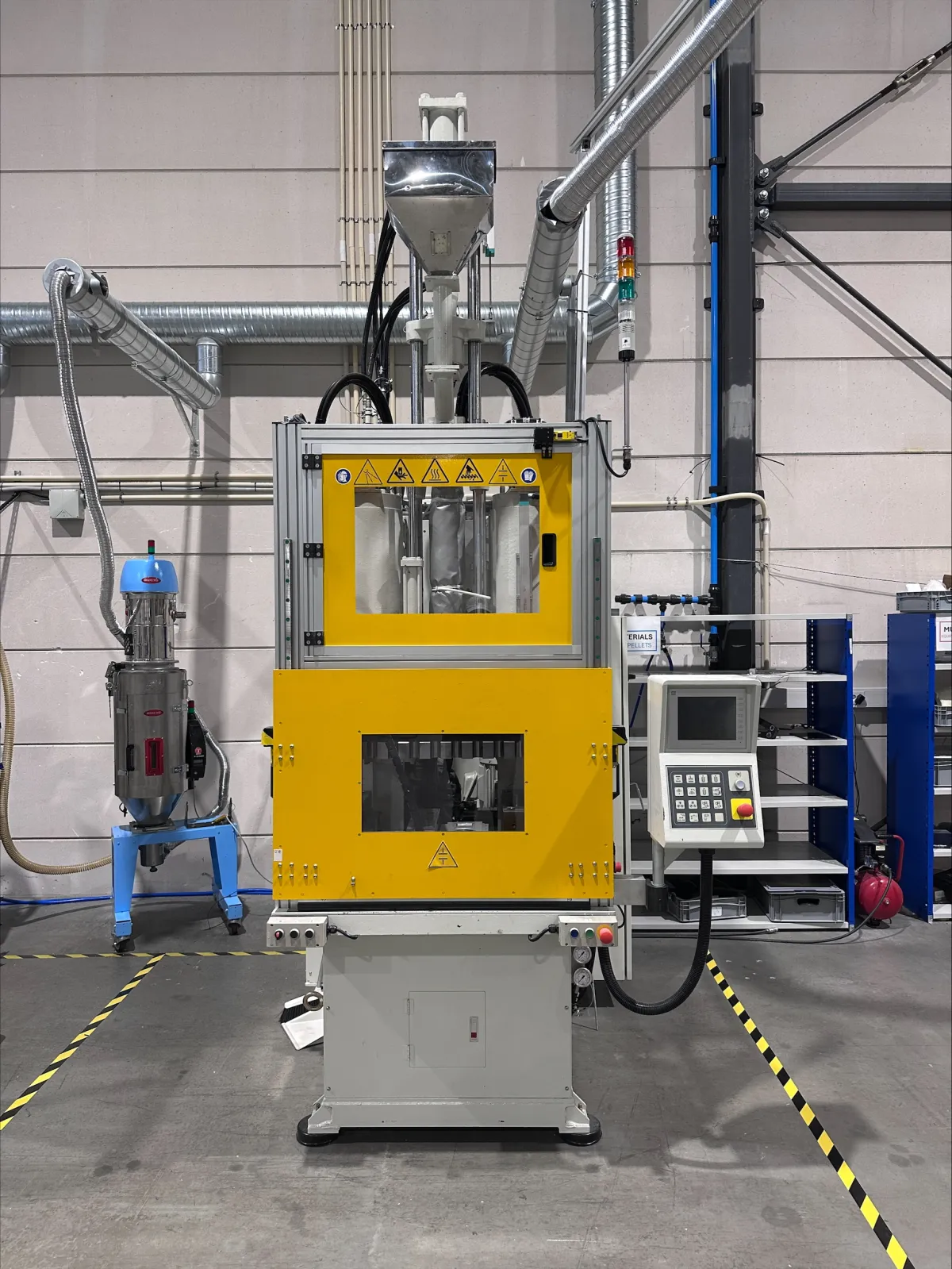

MULTIPLAS V2C-50T

Manufacturer: Multiplas

Year of manufacture: 2023

Model: V2C-50T

Type of machine: Injection Molding Machine

Technical Details

- Screw diameter: 35 mm
- Theoretical injection volume: 154 cm3
- Injection capacity (PVC): 145 gm
- Injection pressure: 1383 kg/cm2
- Injection rate: 69 cm3/sec
- Plasticizing capacity (PVC): 53 kg/hr
- Screw rotation speed: 186 rpm
- Heater capacity: 3.9 kw
- Clamping force: 55 ton
- Min. mold thickness: 350 mm
- Opening stroke: 300 mm
- Max. opening thickness: 650 mm
- Ejector stroke: 90 mm
- Ejector power: 1.8 ton
- Electric power: 10/7.5 hp/kw
- Oil tank capacity: 160 L
- Cooling water capacity: 230 l/hr
- Machine size (L.W.H.): 2.3 x 1.5 x 3.7 m
- Machine weight: 3.4 ton
- Operating hours: approximately 420
- Extras: Material hopper included
- Mould not included,
