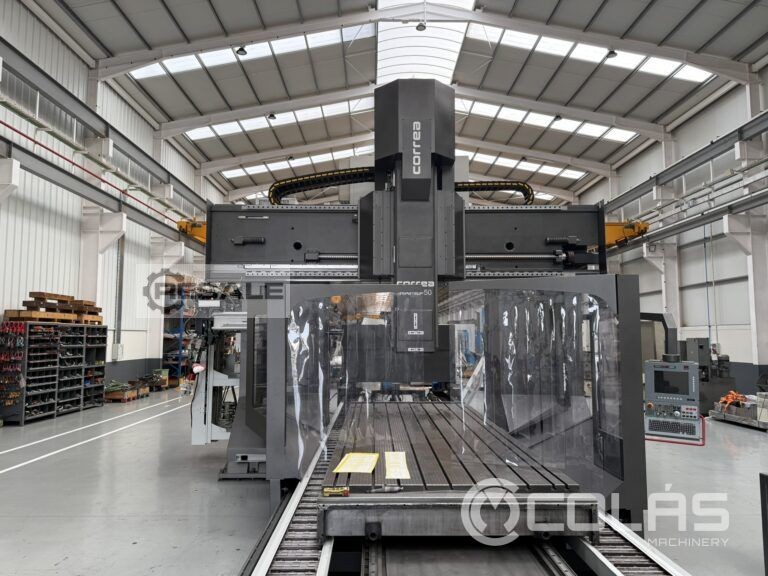

CNC Fräszentren NICOLAS CORREA RAPID 50

Manufacturer NICOLAS CORREA
Model RAPID50
Year of Manufacture 2.005
CNC HEIDENHAIN 530 HSCI
Table
Table surface 5,000 x 2,000 mm
Number of slots T 11
Slot size T 22 mm
Maximum weight on the table 30,000 kg.
Routes and advances
Longitudinal Course (X-Axis) 5,000 mm
Transverse Course (Y-Axis) 3,100 mm
Vertical Course (Z Axis) 1,200 mm
Distance between columns 2,800 mm.
Fast Forward Axles (X) 20,000 mm/min
Fast Forward Axles (Y, Z) 30,000 mm/min
Head
UAD II automatic head included
UAD II head positioning 0.1º / 0. 1st
Speed 6,000 rpm
No. of ranges 2
Power 32 kW
ISO 50 head cone
Hydraulic head clamping
Head 2 – vertical chuck INCLUDED
Accessories
Automatic tool loader INCLUDED
Loader positions 30
Automatic head changer INCLUDED
2 longitudinal chip evacuators INCLUDED
1 x Cross Chip Evacuator INCLUDED
Internal cooling 20 bar INCLUDED
Portable electronic steering wheel INCLUDED
Laser Tool Gauge INCLUDED
Others
Approximate weight of the machine 65,000 kg
Approximate machine dimensions 15,100×6,200×6,250 mm.
