NILPETER (FGT) FA5 - 10-color - 535mm

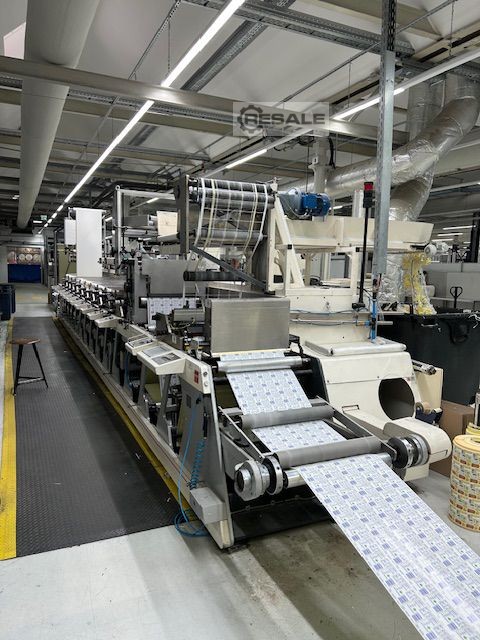

Nilpeter FA5 Labelpress - 10 – Colour – 535mm
Year of Manufacture: 2010
________________________________________
Technical Description:
Web specifications:
• Number of printing units: 10 printing units for UV colour
• Printing unit 1 and printing unit 10 UV ink and water-based ink (varnish) possible
• Max. Web width: 535 mm
• Corona: Vetaphone 3.0 KW
• Turning cross: yes - flexible on rails
• DE - RE Lam Station: printing unit 1 + 2 + 3 + 4
• Double Layer Station: SpilkerCold embossing unit: yes, with rail-based unwinding and
rewindingDie cutter: Kocher & Beck / Gap Master System
• Register control: P2P/ P2C (manual and automatic electronic register system for each printing unit)
• Drying: GEW - UV drying - Rhino system
• Hot air drying: printing unit 1 and printing unit 10
• Cooling: Cooling water rollers in each printing unit
• Web edge control: Fife
• Web cleaning: Teknek
• FELLINGER TURRET, Age: 2023
• Max. Web width: 520 mm
• Max. Speed: 0 - 175 m/min
• Unwind 40’ 1000 mm (350kg)
• Rewind 40’ 1000 mm
• Rail mounted
• 1Unwind/rewind 15 ¾’ 400 mm
