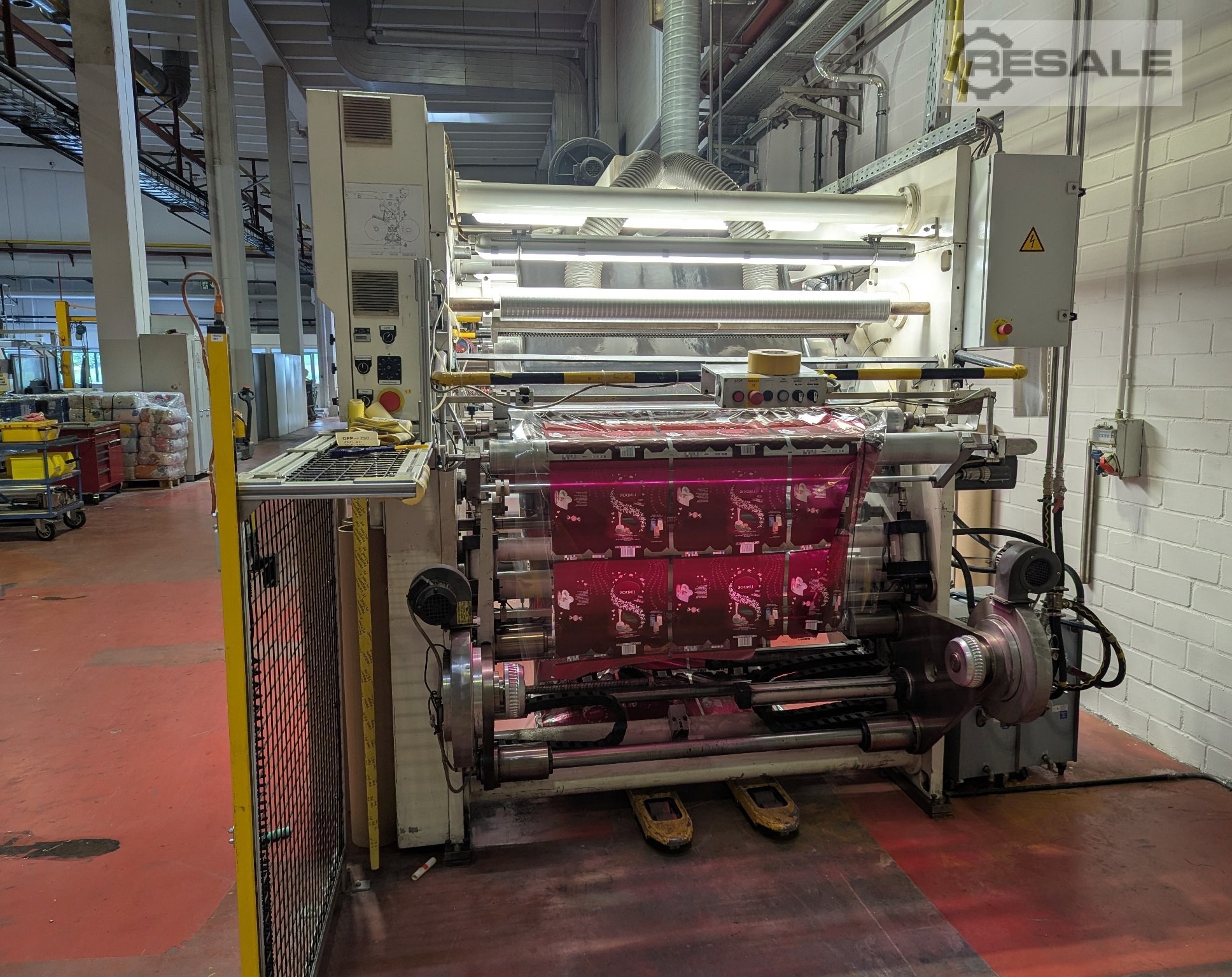

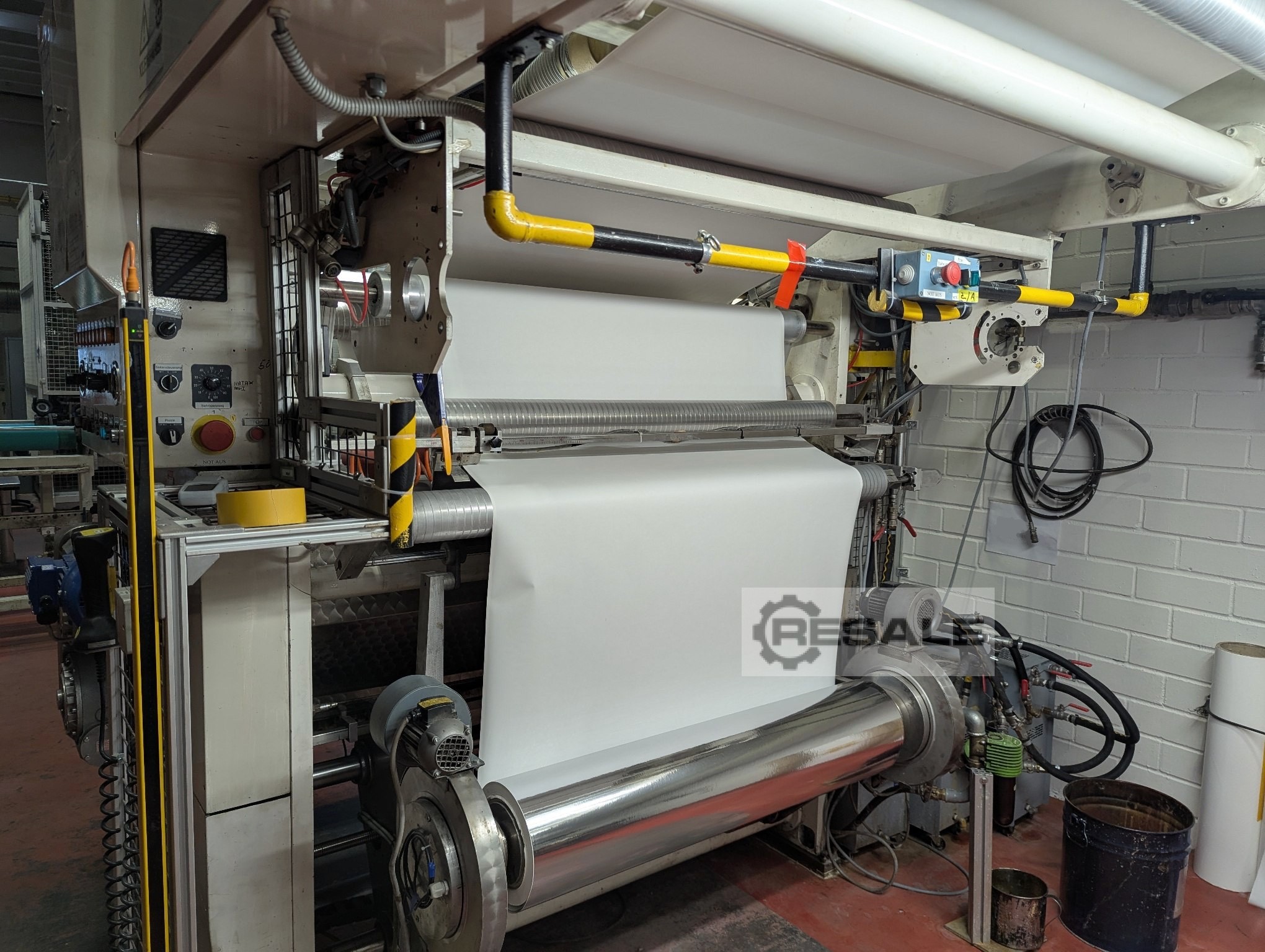

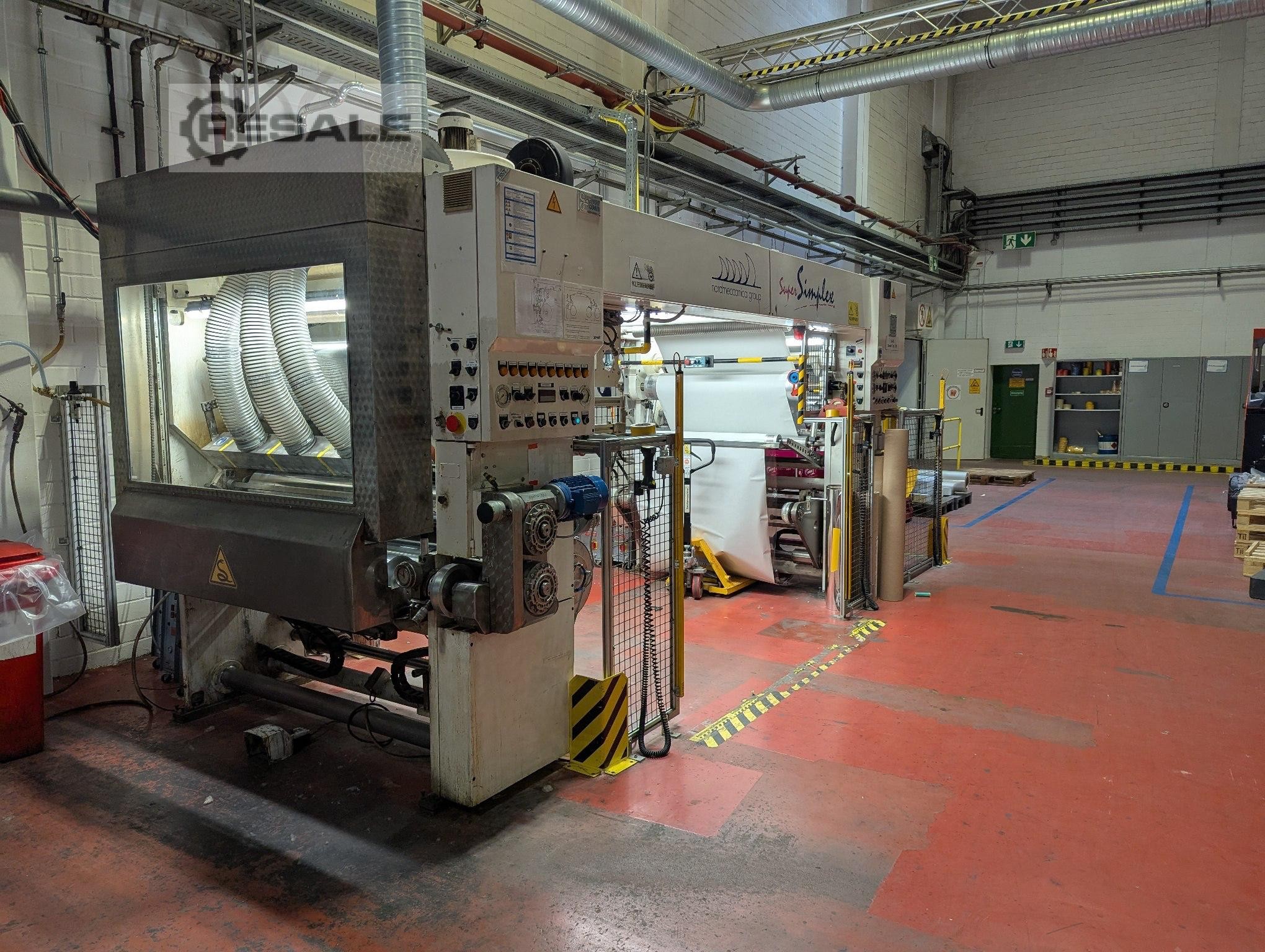

Nordmeccanica Supersimplex SL1300 Kaschieranlage

Technical data:

Web width: 1,300 mm
Lamination type: Duplex (two-ply)
Adhesive system: 2-component, solventless
Mechanical speed: 300 m/min
Unwind diameter: 800 mm (shaftless, single-position)
Rewind diameter: 800 mm (shaftless, single-position)
Core diameter: 3"
Web direction control: Integrated web guiding system
Corona treatment: 1–2 corona stations
Heating: Electric heating with temperature regulation system
Coating rollers: Coating head with staggered application rollers for solventless adhesive, configured for accurate laydown control

Main Features:
- Shaftless single unwind station
- Shaftless single rewind station
- Duplex configuration for solventless adhesive lamination
- Corona treater for surface activation
- Electric heating for coating unit
- Temperature control system
- Web guide for precise alignment
- Coating head with multiple rollers for flexible adhesive laydown
- Two-component solventless adhesive system (external mixer may be required)
- Solid steel frame for vibration-free operation
- Easy access for maintenance and cleaning
- Operator-friendly controls
