Manufacturer: NORTE
Year of manufacture: 2002
Model: VS 1000
Type of machine:Milling Machining Center
Technical Details :
- Machine weight: approximately 28,000 kg
- Transport width: approximately 12,000 mm
- Transport depth: approximately 4,800 mm
- Transport height: approximately 4,500 mm
- Working area, X axis travel: 8,000 mm, with pendulum machining at
vertical spindle, 2 working areas of 2 x 3,765 mm
- Working area, Y axis travel: 1,000 mm
- Working area, Z axis travel: 1,000 mm
- Feed range for X and Y axis: 1 to 20,000 mm per minute
- Feed range for Z axis: 1 to 20,000 mm per minute
- Maximum feed force X, Y, Z axis: 15,000 N
- Rapid traverse X and Y axis: 20,000 mm
- Rapid traverse Z axis: 20,000 mm
- Protection class of feed drives: IP 64
- Voltage: three phase current 400 / 240 V, 3 phases / MP / 50 Hz
- Control voltage with transformer: 24 V DC
- Supply cable: minimum 4 x 35 mm2
- Main fuse: maximum 200 A
- Connected load: approximately 130 kVA
- Control system: Siemens SINUMERIK 840 D
- Drive system: Siemens SIMODRIVE 611 D
- Axis drives AC: digital control
- Spindle drive AC: digital control
- Clamping table, total clamping surface left: 8,120 mm x 1,050 mm
- Clamping table, working area with 2 working areas: pendulum
machining
- Clamping table, working area per working area at vertical spindle:
3,725 mm x 1,000 mm
- T-slots: 7, according to DIN 650
- Clamping slots: 6, width 22 mm H12
- Alignment slot (center slot): width 22 mm H7
- Slot spacing: 150 mm
- Permissible table load: 8,000 kg
- Working spindle, inner bearing diameter: 100 mm
- Spindle bearing lubrication: oil / air
- Tool holder: HSK-A 100
- Tool clamping force: 45,000 N
- Spindle speed range: 0 to 8,000 min-1
- Automatic tool changer type: chain magazine
- Chain drive: regulated AC digital servo motor
- Mounting position viewed from front: centered in the column
- Tool change point: variable in the X, Y and Z axis
- Tool loading: from the front via the working spindle, alternatively
via pick-up station
- Number of magazine positions: 90
- Tool shank: HSK-A 100
- Coding: variable position coding
- Maximum tool diameter with 1 magazine position occupied: 110 mm
- Maximum tool diameter with 3 magazine positions occupied: 180 mm
- Maximum tool length: 400 mm

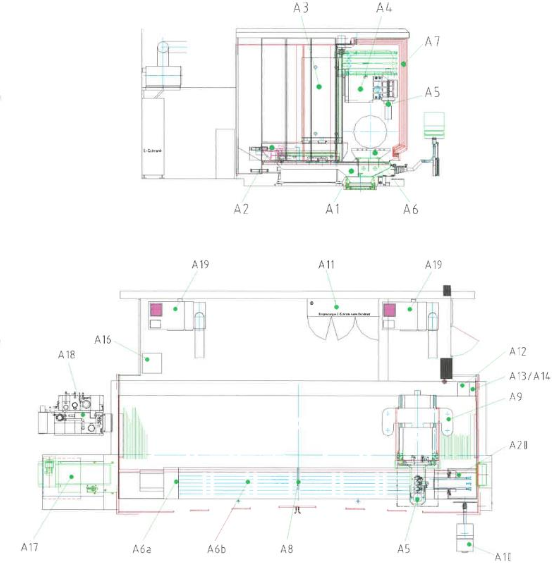

- Main components: machine bed, which forms the base structure of the
machine
- Cross slide, which carries and positions the working assemblies
- Machine column, which supports the spindle housing
- Spindle housing, which houses the working spindle drive
- Drilling and milling spindle, which performs the drilling and
milling operations
- Table, including rotary table and tailstock, which holds the
workpiece
- Complete cabin, which encloses the working area
- Working area, where machining takes place
- Tool magazine, which stores tools for automatic tool change
- Main control panel, used to operate the machine
- Electrical cabinet, which houses the electrical control
components
- Hydraulic unit, which supplies hydraulic power to the machine
- Pneumatic unit, which supplies pneumatic power to the machine
- Central lubrication system, which lubricates the machine
components
- Cooling unit for the main spindle, which cools the spindle during
operation
- Chip conveyor, which removes chips from the working area
- Coolant system, which supplies coolant during machining
- Extraction system, which removes dust and particles from the working
area
- Pick-up tool magazine, used for alternative tool loading
