Description Item # 8780 - PRODUCTION LINE FOR CHECKERED FLAKE
BREAKFAST CEREAL (product like Shreddies) this line was also used to
manufacture corn flakes but the Clextral BC72 extruder is not included
in the sale. included in the line: 1. Hopper for the flour mixer FSH

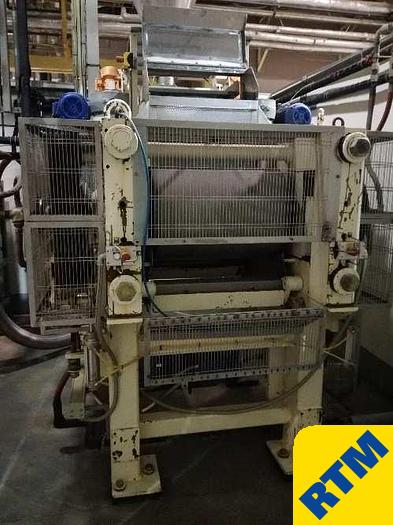

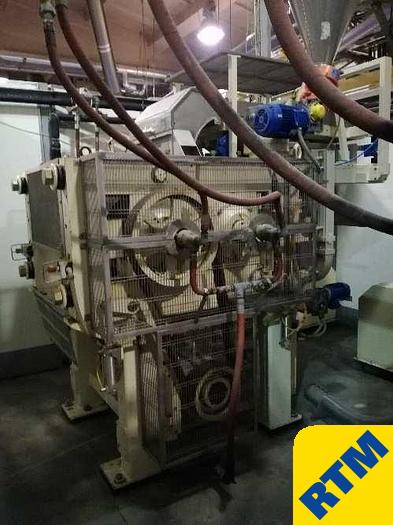

168 2. Flour mixer mod. CP-SFAR 3. Vibrator 4. Screw conveyor model
FS168/V 5. Rolling Mill- PAVAN model FRM700, 2002 year of production
– 2 machines with Common efficiency ~600 kg/h, 35 kW for each
machines separately 6. PRE-DRYER SHAKER PAVAN mod. TP 100/7/4 and TP
150/7/4, 2003 year production, electric heating 8,4 kW, efficiency
~300-400 kg/h 7. Stabilizing belt mod. SBC 160/5000 (STABILIZING BELT)
8. TOASTER PAVAN model BTO 2104 CP-TOST, gas heating, 89 kW, 2002 year
production 9. Drum SHREDDIES production line Manufacturer: CPM
WOLVERINE PROCTOR Ltd. Model: 5-station SHREDDIES production line
Year: 2016 Description: 5-position line for the production of
multilayer flakes from crushed grains. Finished product capacity: 700
kg / h Line speed: 54m / min. Finished product density: 200> 220 g / l
Overall dimensions and setting of the machine: length x width x
height: approx. 10929 x 1600 x 4685 Design diameter of the grinding
roller: 203 mm Design working width of the chopping roller: 210 mm
Rotational speed of the grooved roll: 20-85 m / min. Design number of
positions: five Design width of cutting station conveyor: 230 mm
Nominal design width of the edge trim: 12 mm per edge, total 24 mm
Design product size: approx. 25 x 25 mm Technical data: Dimensions
(length X width X height): Power supply: 400 V, 3 phases, 50 Hz
Control voltage: 24 V DC Oven Jetzone Producer: CPM WOLVERINE PROCTOR
Ltd. Model: SND 1.5 x 202 Year: 2016 Efficiency: 450 kg/h Dimensions:
8136 x 3581 x 4376 Heating medium: natural gas no longer in
production, still installed on the factory floor
