PRO-WAM Process tank 450 L Mixer

Manufacturer: PRO-WAM

Type of Machine : Process tank 450 L

Year of Manufacture: 2019

Volume: 450 liters

Tank used several times, like new, in very good condition, on wheels. Pressure up to 2 bar, with mixer and heating jacket, made of AISI 316Ti acid-resistant steel. Additionally, two UV light radiators were designed for the tank, mounted from the top through sight glasses.

Process tank 450 l

- vertical tank
- pressure tank up to 2 bar
- main tank made of AISI 316Ti acid-resistant steel
- tank insulated with mineral wool, thickness 50 mm in the cylindrical part and on the lower head
- outer jacket made of AISI 316Ti acid-resistant steel, thickness: 2mm
- lower and upper cap pressed DIN 28011
- heating jacket with a capacity of 6 L
- temperature in the tank and jacket 100 degrees. c
- circulation pump
- heating medium temperature sensor
- expansion vessel of the heating system
- electric heaters – 5 pcs. 4.5kW/400V

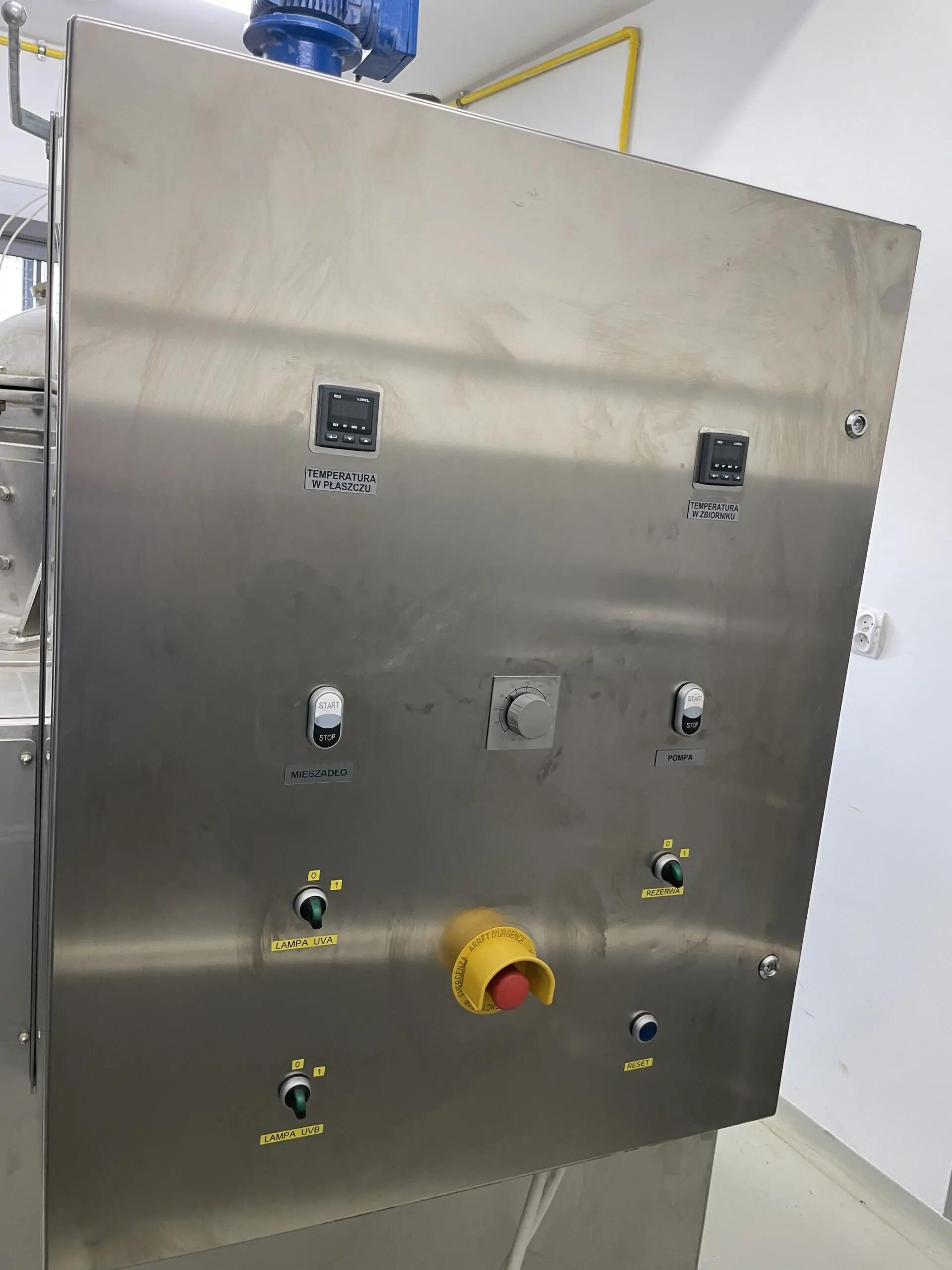

- control cabinet: controlled by the heating system and the stirrer
- heating medium supply connector DN33.7
- heating medium intake pipe DN33.7

Equipment:

- Ex motor
- DN300 manhole (2 bar) with a safety sensor
- drain port (heated)
- filling port (heated)
- filling level sensor connector
- temperature level connector PT-100
- safety valve
- Redox + electrode connector
- UVA and UVB lamp
- glass sight glass DN150
- NORD gearmotor 2.2kW/124 rpm. SK2282AFB-VL2-100LP/4TF
- propeller blade mixer
- strengthening the tank under the feet
- transport handles – 2 pcs.
- manual ball valve DN 25 – 2 pcs.
- Manual ball valve DN 65 – 1 pc.
