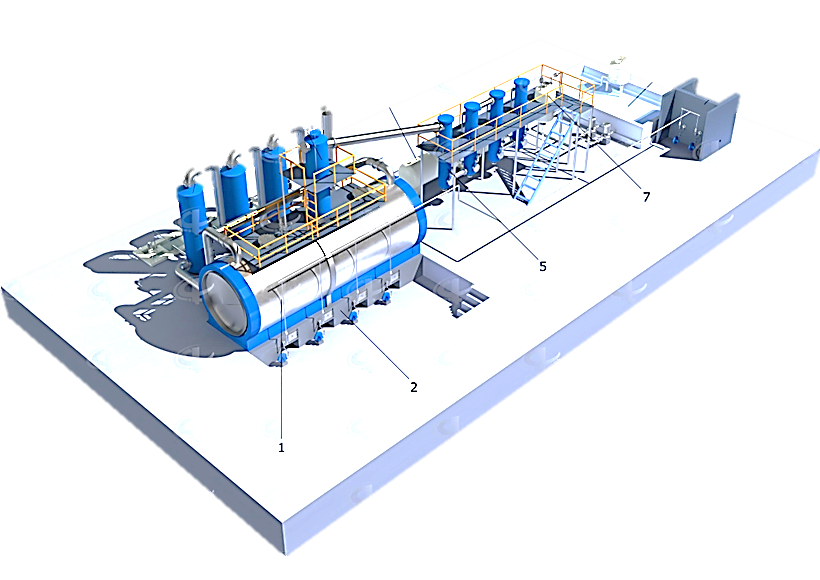

This used PY-D continuous distillation unit converts waste engine oil,
pyrolysis fuel oil, and heavy crude oil into non-standard diesel fuel
with a high yield of 80–90%. The horizontal-type reactor operates at
normal pressure using a hot-air heating method and cycle-water
cooling, making it a reliable, low-maintenance solution for industrial
waste oil recycling. Emission control is handled by a new
DE-sulfurization smoke scrubber system.
Full Technical Specifications
- Equipment Model: PY-D
- Suitable Raw Materials: Waste engine oil, Pyrolysis fuel oil, Crude
oil
- Structure: Horizontal Type
- Daily Capacity: 5 – 6.5 MT
- Work Pressure: Normal Pressure
- Oil Yield: 80% – 90%
- Power Consumption: 18 kW/H
- Cooling Method: Cycle water
- Condensers: 4 pieces of Vertical condensers
- Emission Treatment: DE-sulfurization Smoke Scrubbers
- Heating Method: Hot Air
- Type of Installation: With Foundation
- Noise Level: ≤ 85 dB (A)
- Reactor Dimensions: Phi 2200 x 6000 mm / Phi 2500 x 8800 mm
- Operating Mode: Semi-continuous
- Main Chamber Weight: 10 – 13 MT
- Total Weight: 25 – 35 MT
- Installation Space Required: 35 m x 15 m
- End Product: Non-standard diesel oil
- Manpower Required: 1 – 2 operators per shift
- Shipment (smaller reactor): 2 x 40HC (Phi 2200 x 6000)
- Shipment (larger reactor): 1 x 40HC + 1 x 40FR (Phi 2500 x 8800)
