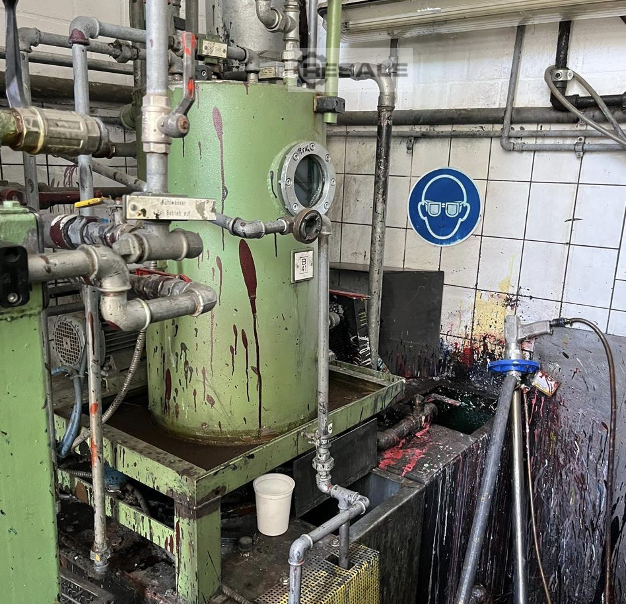

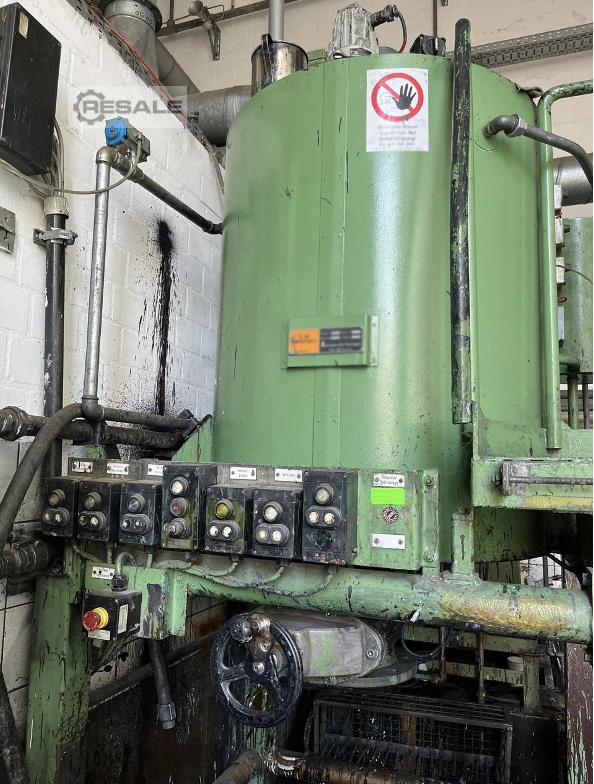

Verdampfer RENZMANN Destillation unit

Technical Data:
Distillation vessel volume: 150 liters
Constant fill volume: 100 liters
Maximum operating temperature: 200 °C
Absolute vacuum: up to 50 mbar
Heating power: 9 kW
Cooling water consumption: 0.8 m³/h
Distillation output: 30-60 L/h
Features:
• Cylindrical, vacuum-tight vessel with flanged lid
• Heating via heating floor or heating jacket (steam at 10 bar, 185 °C max)
• Water-cooled stainless steel condenser
• Rotating scraper agitator system to remove deposits and ensure heat transfer
• Residue discharge valve (manually or pneumatically operated)
• Sight glass and explosion-proof lamp for observation of the process

Verkäufer Angebot Nr. resale 168061908
