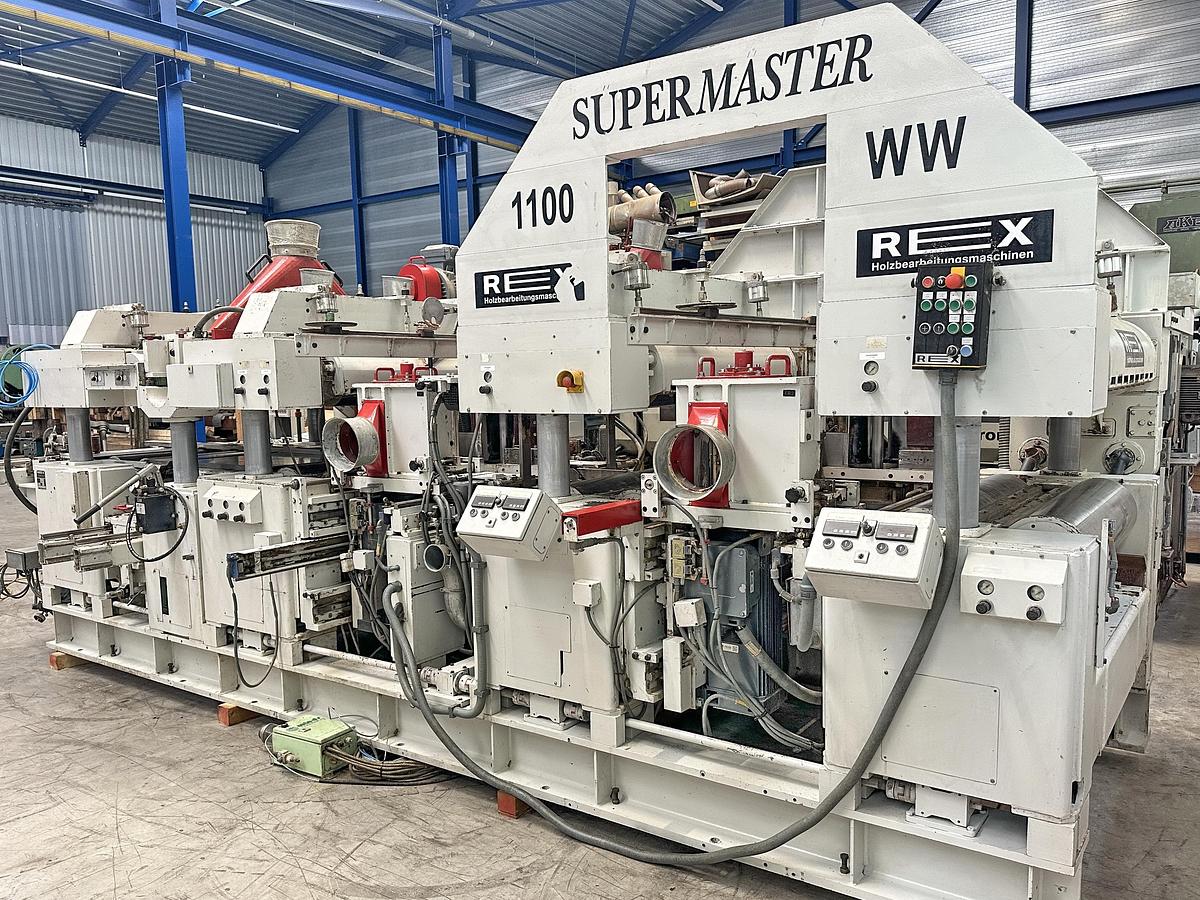

REX Supermaster 10/110-WW

REX wide planer, type SUPERMASTER 10/110-WW, Manufacture year 2009 (left hand version), Machine specifications, - Working width 80 - 1100 mm, - Working height 40 - 300 mm, - Feed speed 6 - 60 m/min, - Electric driven feeding system, 4x 9.2 kW, Spindle layout:, 1. Horizontal spindle bottom, motor 45 kW, 2. Horizontal spindle top, motor 45 kW, 3. Vertical spindle right, motor 25 kW, 4. Vertical spindle left, motor 25 kW, # 4 pc. chamfering device top/botoom and right/left, each 1.85 kW, 5. Vertical spindle right, motor 25 kW, 6. Vertical spindle left, motor 25 kW, - Upper part can be quickly adjusted with 10 lifting columns, - Driven feed rollers in the upper part of the machine, - Driven feed rollers in machine stand, - Vertical spindles with counter bearings, - Heavy duty outfeed unit with 4 rollers, - Feed speed with frequency converter, - Separate electricity trunk with separate control panel, - Incl. accessories
