ROTOFLEX VLI 330

ROTOFLEX VLI 330
INSPECTION – SLITTER – REWINDER

Machine information:
Rotoflex products are proven in practical applications with self-adhesive labels,
processing, blister foils, and all kinds of paper. This professional and heavy duty
die-cutter with slitter/rewinder and label checking will rewind rolls in a perfect
register with a max. diameter of 700 mms and a max. width of 330 mms into
smaller sized rolls. During the process the labels can be checked for quality and
missing labels.

Specifications:
 Max. web width: 330 mms
 Roll diameter: unwind: 700 mms / rewind: 400 mms
 Shaft diameter: unwind: 76 mms / rewind: 76 mms
 Max. speed: 230 m/min.
 Slitter
 Rewinder
 Splice table

Description: unwind with splice tables and clamps, web guide and tension
control (including automatic web holder at stopping procedure), pressure
controlled die-cutting station with 1 magnetic cylinder, pneumatic operated
knife-unit with up to 12 knives for cutting and/or slitting, digital operating

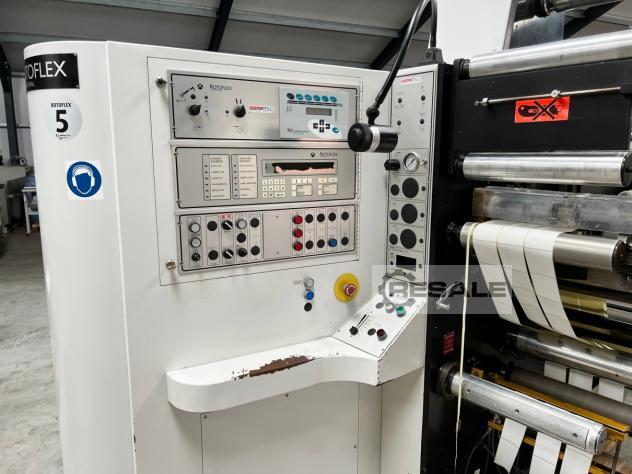

panel with programs, settings, counters (labels or meters) and checking control
(missing label control). Foot-pedal operation and all safeties on the machine.
Year / SN: 2001 / VLI11901000217

Technical- and optical condition:
Technical: 8/10 (checked and in excellent running condition)
Optical: 9/10 (cleaned and can go to end-user directly)


Verkäufer Angebot Nr. resale FGT 24-226
