Description Item #8985 - FLAVOUR COATING AND SEASONING LINE FOR
EXTRUDED SNACKFOOD / BREAKFAST CEREAL PRODUCTS Manufactured by SCHAAF

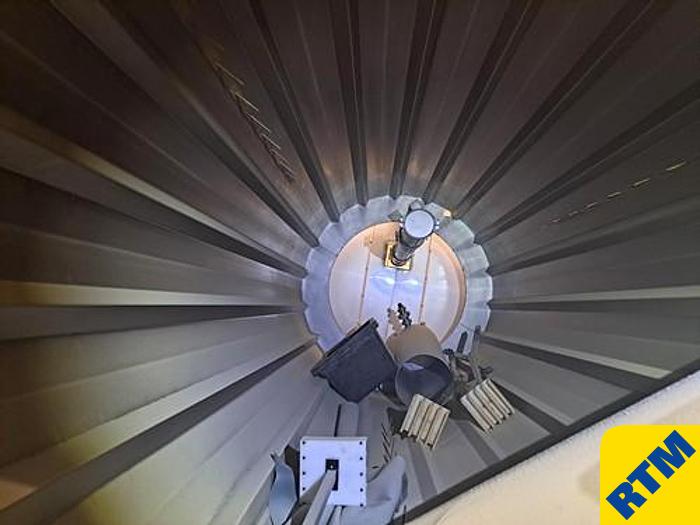

All from Year 2018. Line includes : TYPE 318 COATING DRUM 1600 For the
application of various taste and aroma giving materials by using
various aromatising techniques. The special drum profile offers the
following main advantages: - optimal Rolling of the product for
uniform coating - minimum possible friction/damage of the product
surface - no hidden corners, easy to clean, bacteriologically optimal
surface. Adjustable drum speed, by frequency controlled AC gear motor
1.5 kW. Drum diameter: 1600 mm Drum length: 4000 mm Drum height: 3270

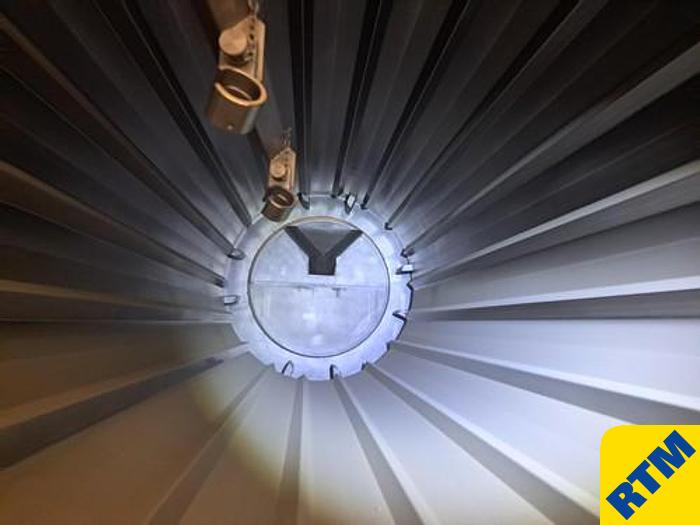

mm. TYPE 282 DRUM DRIER/ROASTER 1600 PTFE, Newly developed short and
medium range infrared roaster for special thermal post treatment of
expanded extrudate. The whole drum is coated with a low-wear PTFE
layer. This ensures processing of extremely sticky coated extrudates.
Unlike the conventional hot air drying process, this drying system
works with a very high degree of efficiency. The whole machine is made
of rust-free stainless steel. The radiation elements are attached to a
common carrying arm in the drum. The roasting drum runs are special,
low-noise carrier rollers and corresponds to the safety regulations
and is equipped with a corrosion-free covering to reduce energy
losses. The rpm of the drum is adjustable continuously. The drive is
carried out by a three-phase motor 1.5 kW. Drum diameter: 1600 mm
Electrical heating power: 126 kW Drum length: 4300 mm Drum height:
2960 mm. TYPE 361 COOLING DRUM 1600 For cooling of sticky and hot
extruded products under rotation for separation. The cooling is
carried out with the help of room air, which is blown controllably
into the drum by a middle pressure blower 1.85 kW AC. Please note:
depending on the product characteristics, additional cooling might be
necessary for breakfast cereals before the product can be packed. Drum
diameter: 1600 mm Drum length: 4000 mm Drum height: 2890 mm.
