Title:

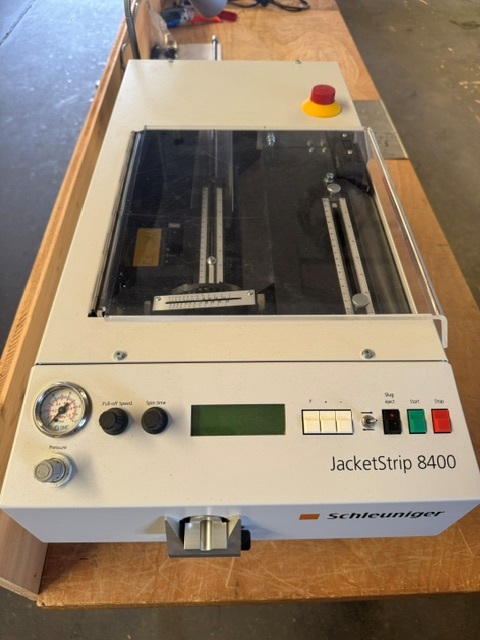

2018 Schleuniger JacketStrip 8400 Benchtop Wire & Cable Jacket
Stripper
Description Overview:
The Schleuniger JacketStrip 8400 is a high-precision, benchtop cable
jacket stripping machine designed to process outer insulation on
single conductor wires and multi-conductor cables. Featuring a
four-blade rotary incision head, pneumatically operated clamping jaws,
and powerful electric pull-off, it delivers fast, repeatable cuts
without requiring blade changes for different cable sizes.
Key Features:
- Four-blade rotary incision system for accurate, repeatable cuts
- Universal blade design (no blade changes needed for standard
applications)
- Handles full stripping, partial stripping, and window stripping
- Pneumatic clamping system ensures optimal hold during stripping
- LCD display for intuitive setup and machine diagnostics
- Automatic waste material ejection
Technical Specifications:
- Cable Outer Diameter (Max): 26 mm (1.0)
- Cable Inner Diameter (Min): 2.0 mm (0.08)
- Strip Length: 7 – 200 mm (0.27 – 7.87) [Expandable up to 400 mm
/ 15.74]
- Pull-Off Length: 20 – 190 mm (0.78 – 7.5)
- Max Jacket Thickness: 6 mm (0.234)
- Stripping Speed: Infinitely adjustable up to 30 cm/s (1.2/s)
- Cycle Time: ~2.2 seconds (dependent on cable & length)
- Compatible Materials: PVC, PUR, Rubber, Teflon, Tefzel, Kapton,
etc.
- Compressed Air Required: 5 – 7 bar (75 – 90 psi)
- Power Supply: 100/115/230/240 VAC, 50/60 Hz, 300 VA
- Machine Dimensions (L x W x H): 690 x 370 x 330 mm (27.2 x 14.6 x
13.0)
- Machine Weight: Net 48 kg (106 lbs)
