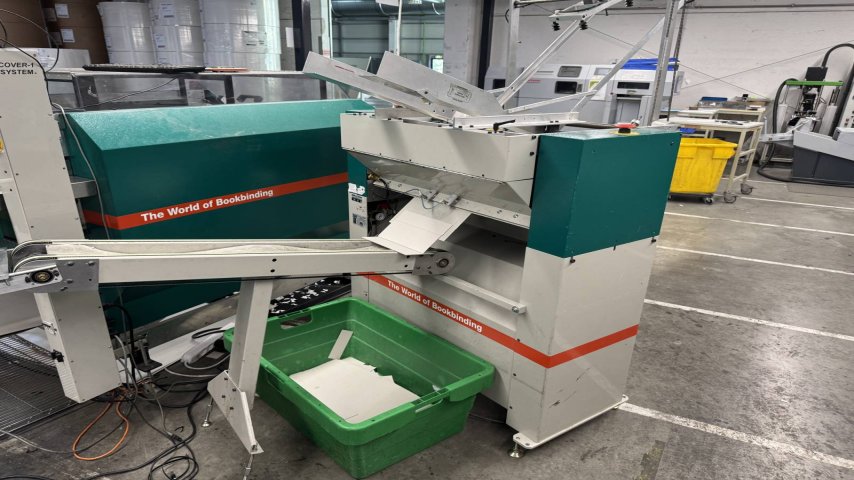

Schmedt PräziTrim 13950 Verschiedene

Format: 400 x 770 mm
Technische Daten:
Power: 230V / 400V
Nettogewicht: 350 Kg
Messungen: (LxWxH):105 x 135 x 130cm
Ausstattungen:
Mechanische Geschwindigkeit: 250 Stueck / h
Blank Sheet Width: Minimum 250 mm to Maximum 770 mm
Blank Sheet Height: Minimum 150 mm to Maximum 400 mm
Allowable Board Thickness: From 1.5 mm up to 3.5 mm thick rigid greyboard
Cutting Width (Horizontal): Adjustable from a narrow minimum of 6 mm (perfect for thin hardcover book spines) up to a maximum width of 700 mm.
Cutting Height (Vertical): Adjustable from 127 mm up to 355 mm.
Automatic 3-Panel Segmenting
Automated Material Lift & Feed
Integrated Sheet Transport Conveyor
Heavy-Duty Rotary Shear Knife Block
Digital Operator Display Panel
Maximum Sheet Feed Capacity: Accommodates a raw board thickness range commonly spanning 1.0 mm up to 4.0 mm
