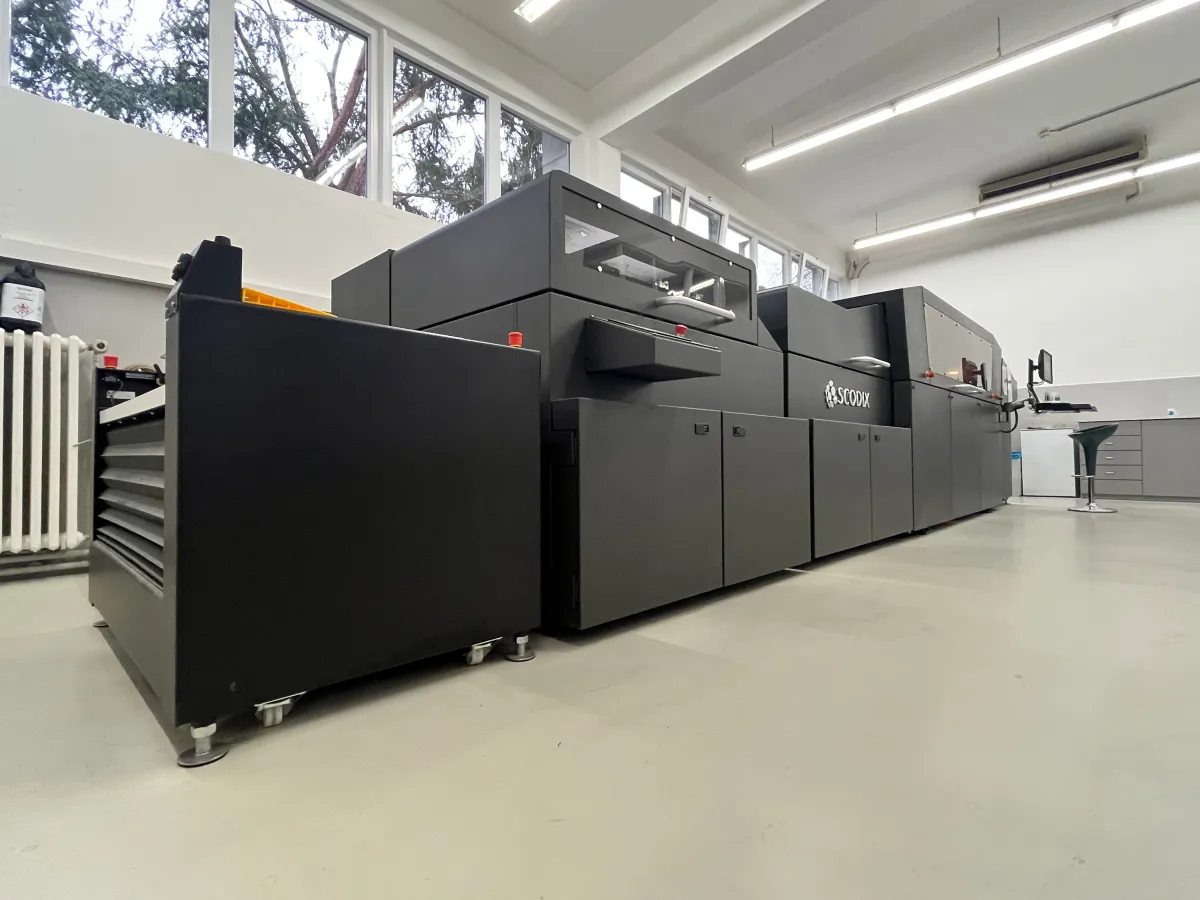

Scodix Ultra 202 Printing Machine

SCODIX ULTRA 202 Year 2019 Printing counter: only 230.000 copies Paper size Min: 29 x 42 cm Paper size Max: 54 x 78 cm Printing size Max: 74 x 50 cm Foil technology Digital in-line with Scodix PAS foil technology Foil roll width (min/max) 50-500 mm/1.97-19.68 in Foil roll size Diameter:max 30 cm, Length:max 2,000 m, Core:77mm/3 in Max number of simultaneous rolls Up to 4 rolls Polymer layer thickness From 5 up to 250 microns Substrate weight 135-675 gsm/6-30 points Substrate thickness Up to 700 microns Foil film type** Wide variety of industry standard hot/cold foil films Substrates*** Offset, Plastics, laminated and coated/uncoated substrates Resolution Up to 2540 x 450 DPI Variable Data Enhancement (VDE) PDF, optimized PDF, barcode system (optional) Scodix RSP™ Technology 4 CCD camera system, RSP™ (Rotate, Scale, Position) algorithm, automatic positioning, ± 100 micron image to image registration Substrate loading sizes Min – L297 x W420 mm / 11.7 x 16.5 in Max – L545 x W788 mm / 21.5 x 31 in Printing image sizes Max – L748 x W504 mm / 29.4 x 19.9 in Polymer tank system 4 polymer tanks Press dimensions (L x H x W) 7880 x 1790 x 1979 mm / 310.2 x 70.4 x 77.9 in Press weight (net) 5300 kg / 11684 lbs.
