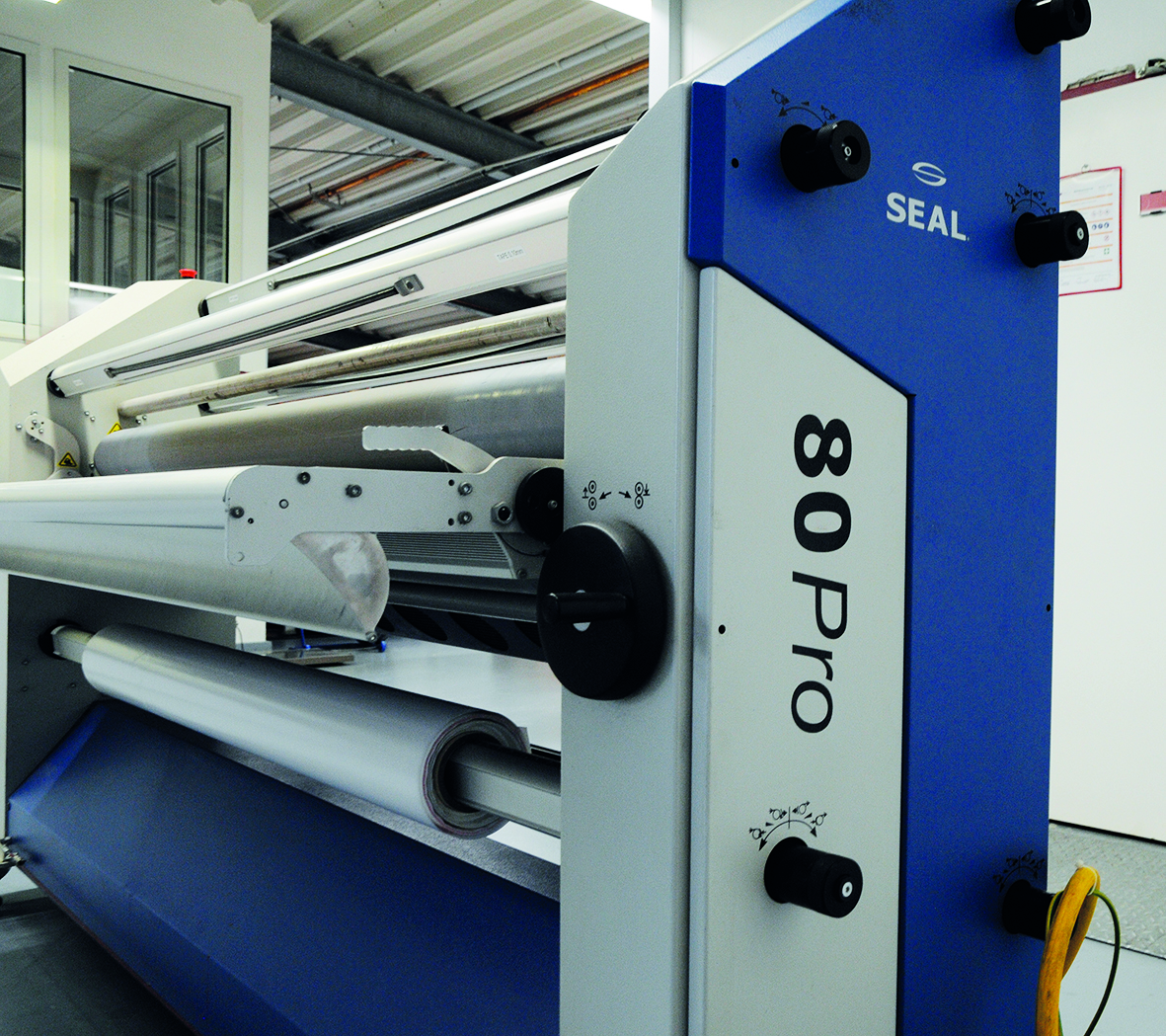

SEAL 80 Pro D Laminiermaschinen

Manufacturer: SEAL

Model: 80 Pro D

Technical Specifications

- Maximum processing width: 2,030 mm
- Maximum speed: 6 m/min
- Maximum material thickness: 38 mm
- Maximum roller pressure: 2.5 N/mm
- Maximum roller temperature: 140 degrees C
- Roller heating: both sides (top and bottom)

Machine Dimensions

- Width: 2,667 mm
- Height: 1,654 mm
- Depth: 634 mm
- Net weight: 780 kg

Transport Dimensions

- Width: 2,710 mm
- Height: 1,690 mm
- Depth: 900 mm
- Transport weight: 840 kg

Electrical Data

- Power supply: 3N/PE 230 VAC +/- 10%, 50/60 Hz, 25A

Key Features

- Variable temperature, speed and pressure settings
- Ergonomic touchscreen control panel on swivel arm (operable from front and rear)
- Feed table with tension rollers and fold-down print guide for smooth and even media feed
- Longitudinal cutting device for trimming finished products during processing
- Foldable pull rollers for flatter encapsulation and easier access during processing interruptions
- Manual roller gap adjustment for precision work
- Variable roller technology for improved processing of soft substrates
- Combination feed shafts for maximum flexibility
- Automatic cooling fans for extended run times
- Feed table trough for longer prints
- Siliconized rollers for easy cleaning
- Auto-grip swivel arm system for comfortable media loading
- Automatic upper rewind shaft for liner removal
- Roll-to-roll processing capability

Safety Features

- Foot switch operation
- Panic bar for operator safety
- Emergency stop switches and light barriers with self-diagnosis
- CE certified
