SELF-PROPELLED MULTIFUNCTIONAL AMPHIBIOU Ausbaggern

two Self-propelled Multifunctional Amphibious dredging/digging equipment

SELF-PROPELLED MULTIFUNCTIONAL AMPHIBIOUS

DREDGING/DIGGING EQUIPMENT

1. Self-propelled Multifunctional Amphibious dredging/digging equipment:

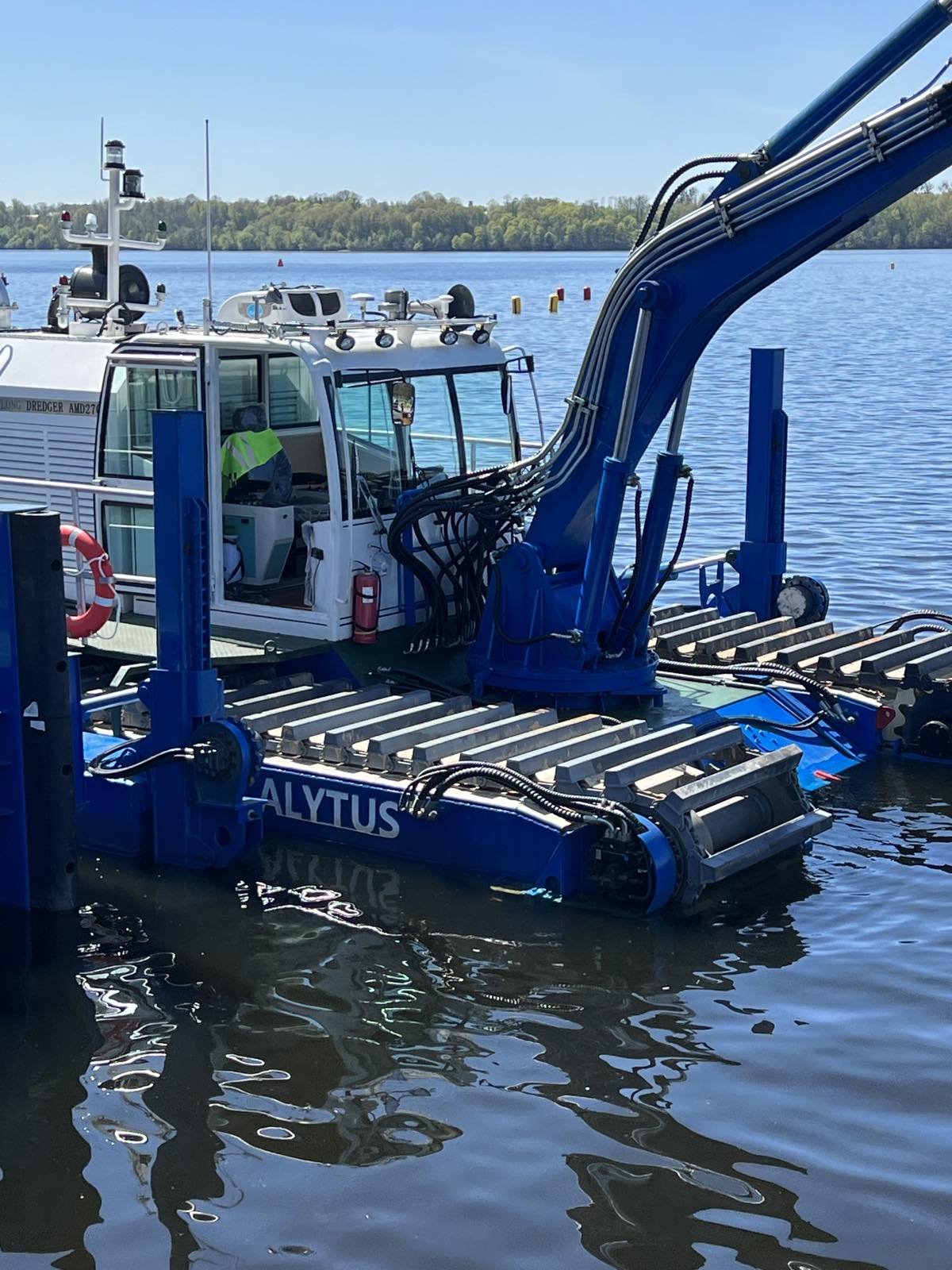

2.1. ALYTUS

2.2. PRIENAI

2. Additional equipment for Multifunctional Amphibious dredging/digging equipment:

2.1. Sand pump

2.2. Bucket

2.3. Grab

2.4. The self-floating hose

Equipment Date of Built – 2021/2022

Certificated By RINA.

1. SELF-PROPELLED MULTIFUNCTIONAL AMPHIBIOUS DREDGING/DIGGING

EQUIPMENT (2 identical unites)

Basic descriptions:

Overall Length – 12,9 m.

Moulded Breadth – 6,8 m.

Depth – 1,84 m.

Max. Draught – 1000 mm.

Gross tonnage - 50 (approx.)

Net tonnage – 30 (approx.)

Total power – 269 kW (Cummins NTA855)

Crew – 1 people

The lifting capacity of the equipment – 4 t.

Maximum suction and digging depth – 6 meters from water surface.

Operating conditions (temperature) - air -50 C /+350 C; water 0

0 C/+250 C.

Operating conditions - Maximum river current speed – 2,0 m/s. Maximum wave height – 0,5 m

Equipment suitable for use on land and in the water.

The structure of the amphibious excavator includes:

1) working device,

2) working arm,

3) swivel base,

4) air conditioner, autonomous heating system

5) cabin,

6) engine room,

7) navigation lights,

8) positioning spuds,

9) propeller system,

10) Walking platform,

11) side pontoon,

12) middle pontoon,

13) crawler pontoon, etc.

Cabin equipment:

1) Navigation system,

2) Echo sounder,

3) Radio station,

4) Wind direction and precipitation sensor,

5) Fire detection system,

6) multifunctional control system,

7) Transparent blinds, etc.

Built according to European Union standards to operate in inland waters. The hydraulic system is installed

with the highest quality hydraulic hoses. The hull and boom of the equipment are reinforced and meet quality

standards.

Documentation is added: technical project and specifications; user/operation manual; equipment instruction

(engines, navigation, hydraulic system and etc.); spare parts catalogs and etc.

ALYTUS operated for up to 400 working hours.

PRIENAI is NEW.

ALYTUS and PRIENAI can be purchased separately.

2. ADDITIONAL EQUIPMENT FOR SELF-PROPELLED MULTIFUNCTIONAL

AMPHIBIOUS DREDGING/DIGGING EQUIPMENT

All, below listed equipment, can be used by both of dredging/digging united.

0.8 m3 digging bucket ×1 piece

0.8 m3 stone removal grab ×1 piece

Sand Pump. Pump (water and soil mixture) content (capacity) - 500 m3

/h.

The length of the self-floating hose – 200 meters.
