Servent OTC-IRB-AX-V 6 L Schweißroboter

Manufacturer: Servent

Model: OTC-IRB-AX-V 6 L

Year of Manufacture: 2006

Machine Type : Welding robot

System type: Robotic MIG/MAG welding system

MIG/MAG power source: OTC DP 400

Positioners: 2 x S40.1-4 / 1000 kg

Linear track with gantry: S80.1-4 / S70.1

Travel length: 8000 mm

Electrical connection: 3/N/PE, 400 VAC, 50 Hz, 100 A

CE marked

System configuration:

- Overhead-mounted 6-axis robotic arm on 8 m linear track

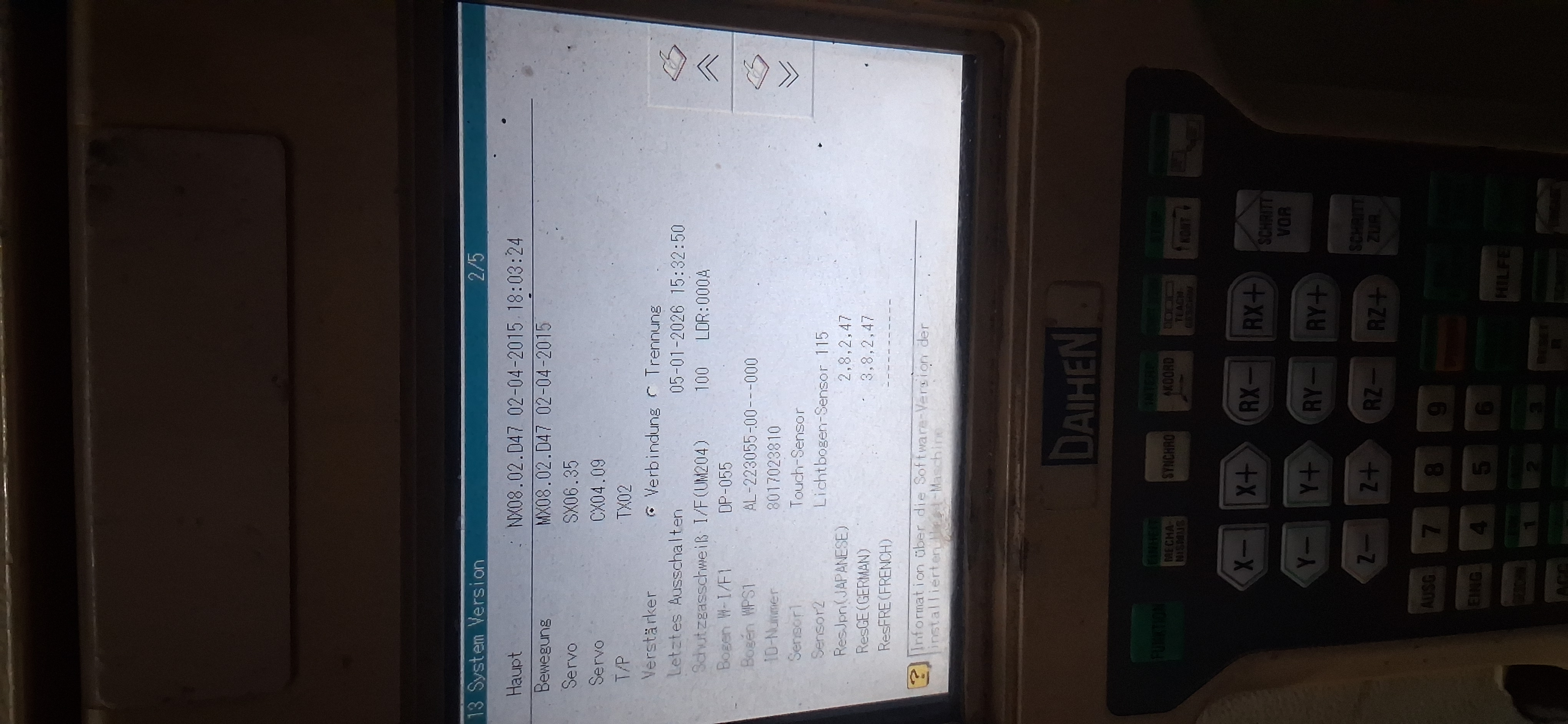

- Robot controller: OTC Daihen

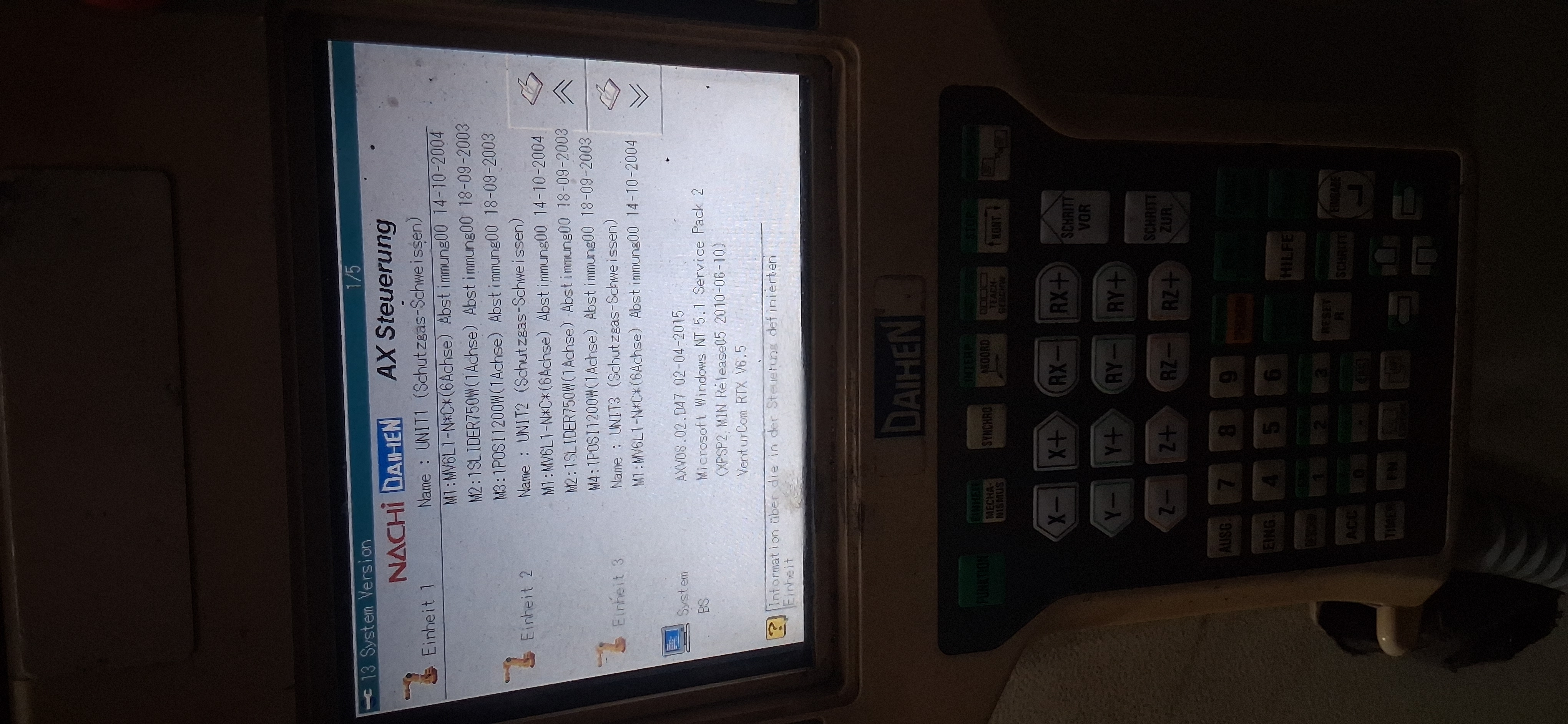

- Control software upgraded from AX-C to AX-2
- 2 welding stations
- Each station equipped with 1-axis positioner
- Positioner load capacity: 1000 kg
- Positioner torque: 1000 Nm

Welding equipment:

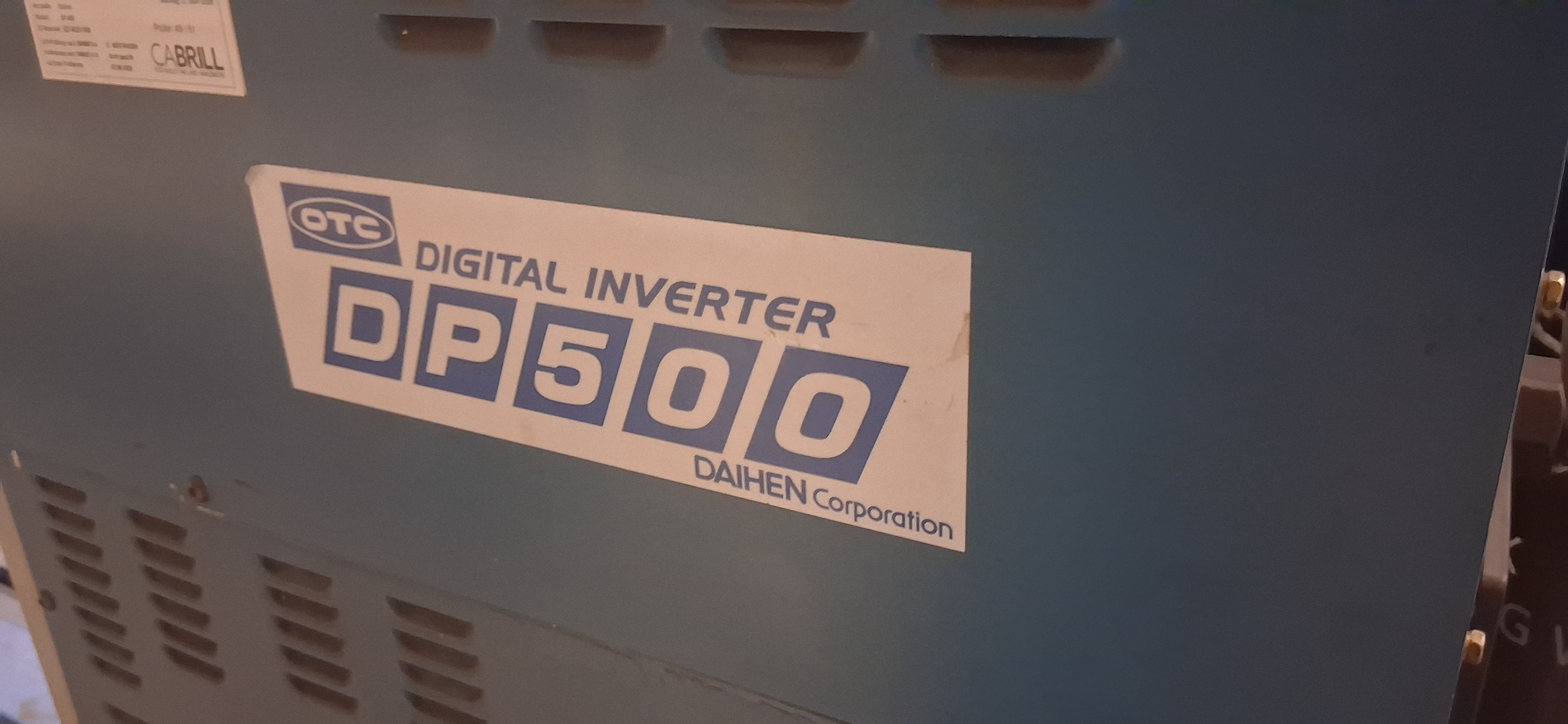

- Power source: OTC DP 500
- Duty cycle: 100% at 350 A
- Duty cycle: 60% at 500 A
- Push-pull welding torch
- Water-cooled gas nozzle
- Wire feeding via roller liner

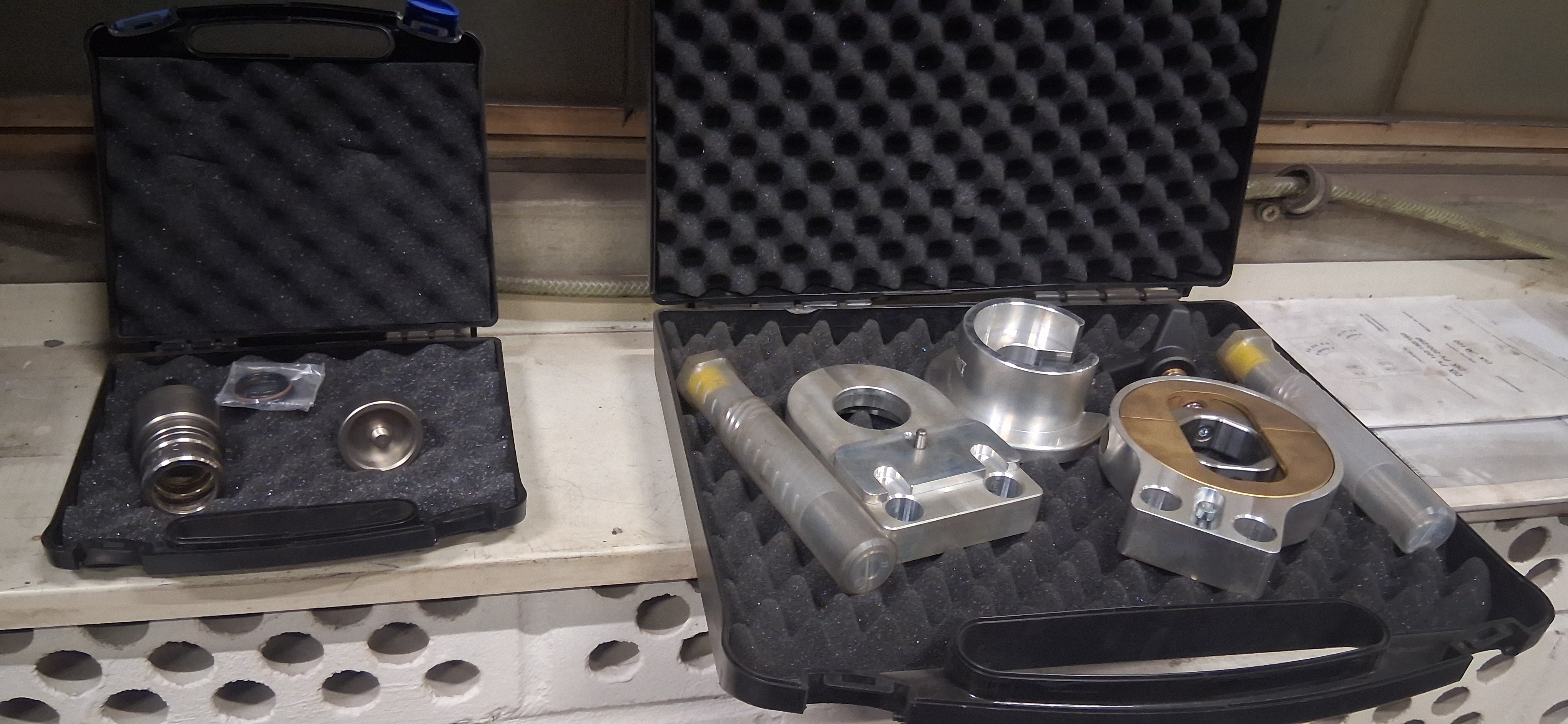

- Torch alignment gauge included

Sensors and automation:

- Touch sensing
- Seam tracking sensor

Accessories included:

- Hose packages
- Wire feed spirals
- Contact tips
- Gas nozzles
- Various spare parts and accessories
