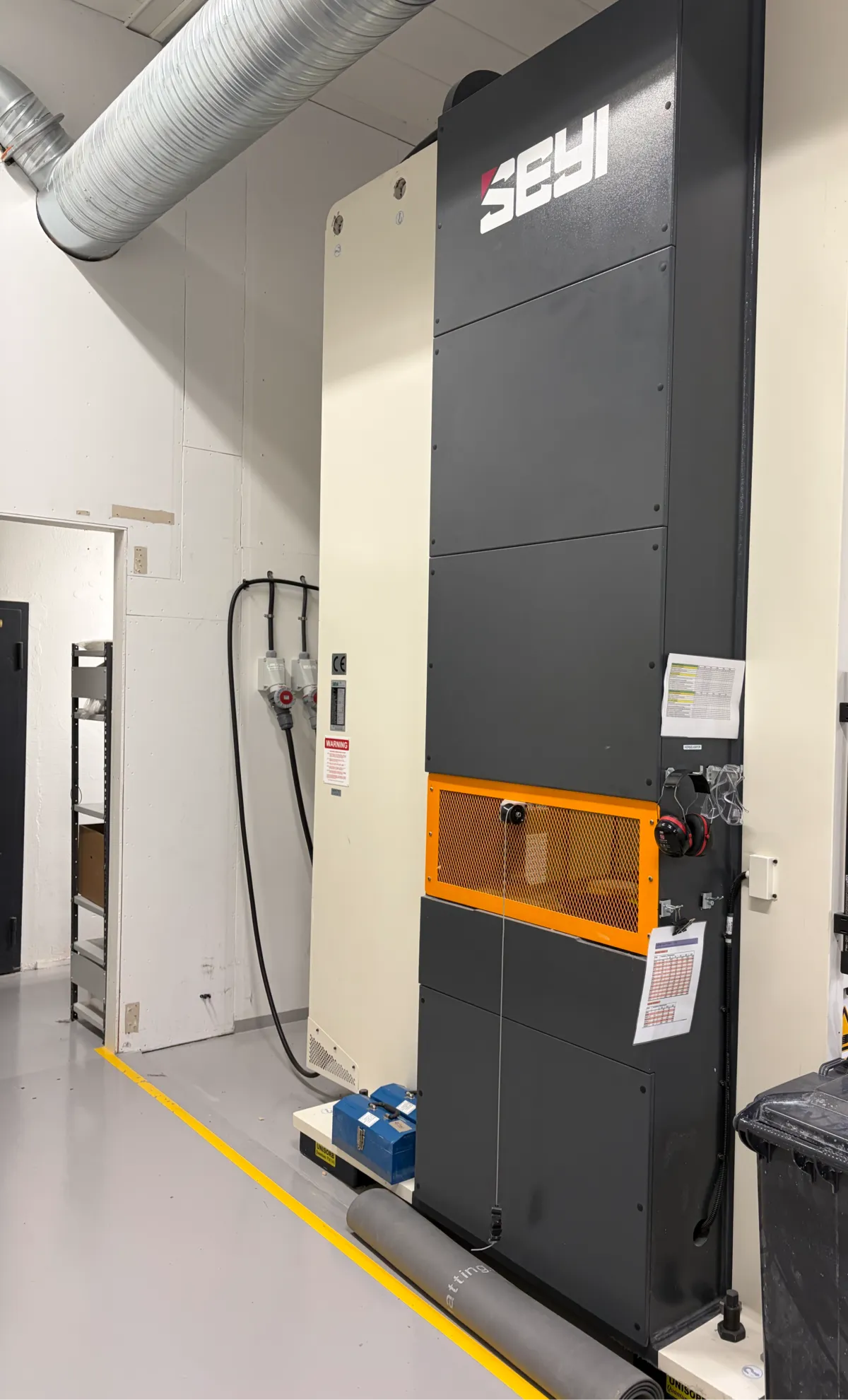

SEYI SDI-200

Manufacturer: SEYI

Year of Manufacture: 2019

Model: SDI-200

Type of Machine: Solid Frame Crank Servo Press

Technical Specifications:

- Capacity: 200 tf

- Stroke: 250 mm

- Strokes per Minute: 1 to 50 spm

- Die Height: 450 mm

- Slide Adjustment: 110 mm

- Slide Area: 1000 x 670 mm2

- Bolster Area: 1300 x 870 mm2

- Air Pressure: 5 kg/cm2

- Main Motor: 59 KW

- Power Source: 400 V, 50 Hz, 35 KVA

- Guard Response Time: 13 ms

- Braking Time: 147 ms

- Guard Distance: 10000 mm

- Machine Weight: 23.7 tf

- Max. Die Area: 900 x 570 mm2

- Max. Die Weight: 0.8 tf

- Operating Hours: approximately 4,800 hours
