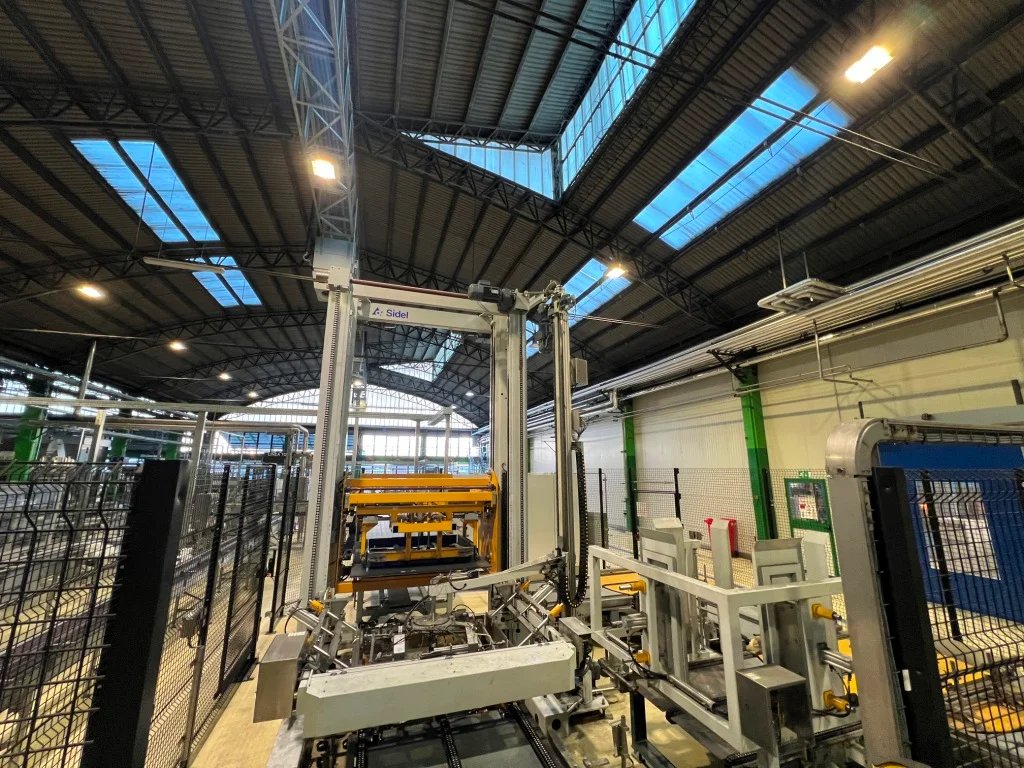

Used SIDEL seep-off depalletizer - Year 2013Technical Specifications &
Performance DataThis Sidel Sweep-Off automatic depalletizer is
designed to unload bottles and jars from palletized layers and
transfer them efficiently to the downstream production line. Built in
2013, it is suitable for industrial packaging operations requiring
reliable container handling at the start of a used bottling
line.Manufacturer: SidelModel: Sweep-OffProduction capacity: up to 200
layers/hourProcessable pallet format: 1000 x 1200 mmContainer
materials: Glass and AluminumHandled containers: Bottles and
jarsInstalled power: 17.7 kWElectrical supply: 400 V, 3-phase +
protective earth, 50 HzFull-load current: 32 AOperating pressure: 6
barAdvanced Automation & Control SystemsThe machine operates
automatically through a Siemens S7-300 PLC and a B&R Panel PC 800
operator interface. This control architecture provides operators with
an intuitive interface for managing depalletizing cycles, pallet
handling and line transfer operations. Automated control supports
consistent layer discharge and coordinated operation with connected
bottling equipment.Production Line Integration CapabilitiesThe
Sweep-Off depalletizer is positioned at the infeed of a bottling or
industrial packaging line, where it transfers containers from 1000 x
1200 mm pallets to conveyor systems feeding downstream process
equipment. It can be integrated with rinsing, filling, capping,
labeling and secondary packaging machinery. Its handling capability
for glass bottles, aluminum cans and jars makes it suitable for
flexible beverage production and packaged food applications.For a
second hand production line, the depalletizer provides an important
automated material-handling function by reducing manual pallet
unloading and maintaining a controlled flow of empty containers toward
the line.Machine Condition & Maintenance HistoryThe machine is ready
for operation and has been overhauled. Compatible spare parts are
available, and the machine is supplied with a 6-month warranty. Its
stated ready-to-use condition makes it suitable for buyers seeking a
used bottling line component that can be integrated into an existing
industrial packaging installation.Operational Performance &
VersatilityThis automatic depalletizer is intended for bottles and
jars used in preserves, still water, sparkling water, soft drinks,
milk, oil, beer, wine and spirits production. The Sweep-Off handling
concept supports orderly transfer from pallet layers to the production
line, helping maintain a continuous container supply to downstream
bottling equipment. Its compatibility with glass and aluminum
containers broadens its use across beverage production and food
packaging environments.Installation Requirements & Site
PreparationInstallation planning should allow for pallet loading and
unloading access, the 1000 x 1200 mm pallet footprint, and connection
to infeed and discharge conveyors. The electrical installation
requires a 400 V, 3-phase + protective earth supply at 50 Hz.
Compressed air provision at 6 bar is required for operation. Site
layout should also provide safe operator access around the pallet
handling area and adequate space for routine service activities.Safety
Standards & Compliance CertificationThe Sidel Sweep-Off depalletizer
carries CE marking. Automated pallet and layer handling requires
integration with suitable line safety arrangements, controlled
operator access and emergency-stop provisions within the overall
production line. Correct installation, safeguarding and commissioning
are essential to support safe operation in beverage production and
industrial packaging environments.
