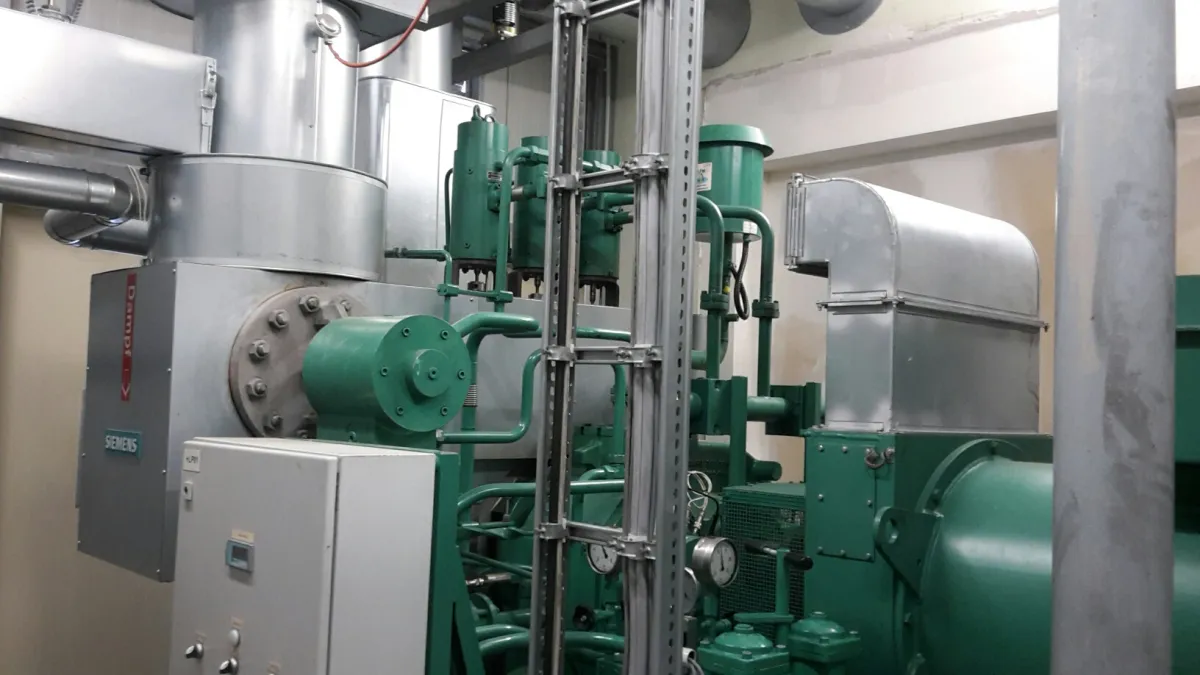

Steam turbine SST-060 Dampfturbine

Steam turbine for sale.

The turbine was built in 2012, is in good condition and is no longer in operation.

Model SST-060

Turbine with impeller in so-called constant-pressure design (action wheel). The turbine rotor is mounted on two bearings and consists of the above-mentioned impeller and a shaft, which are connected to each other by means of Hirth gearing. The impeller is located outside the bearing and consists of one piece. The blades are milled out of the solid disc.

Live steam pressure: 13.0 bara at turbine flange

Live steam temperature: 191.6 C at turbine flange

Live steam flow max: 10,000 kg/h

Exhaust steam pressure: 5.2 bara at turbine exhaust flange

Turbo generator sound pressure level: 92 dB(A) z 3 dB(A)

measured at a distance of 1 m

Coupling power: 275kW

Total terminal power: The tolerance is * 1.0%.

265kWe

The pressure drop for the cyclone to be provided shall be less than or equal to 0.2 bar.

Technical data:

Filling machine Plümatex-F 014 4-S for filling TZT blisters made of plastic.

Machine design:

1. frame

2. control cabinet with Plümatex control unit

3. protective panelling

4. vertical lifting unit

5. horizontal lifting unit

6. filling system

7. filling valves with filling nozzles

8. CIP - SIP unit

Material:

All parts in contact with the product are made of stainless steel 316L, other parts are made of stainless steel 304.

Layout:

see drawing 1984-01.3

Performance:

Packing dimension:

40 x 60= 840 TZT/1,5h

60 x 80 = 504 TZT/1.5h

80 x 120 = 672 TZT/1.5h

The effective output can be impaired by operating errors, which mainly occur at the start of commissioning, or by poor material.

Filling accuracy:

40 x 60 = 22 - 26g (24g +-1%)

60 x 80 = 44 - 50g (47g+-1%)

80 x 120 = 90-100g (95g+-1%)

The product must be fed to the filler under pressure, either via a pump (see options) or a pressurized container.

(required pressure approx. 0.5 - 2.0 +-0.2bar)

Product:

H2O2-containing collagen dispersion

Fülltemperatur:

max. 25°C +-3°C
