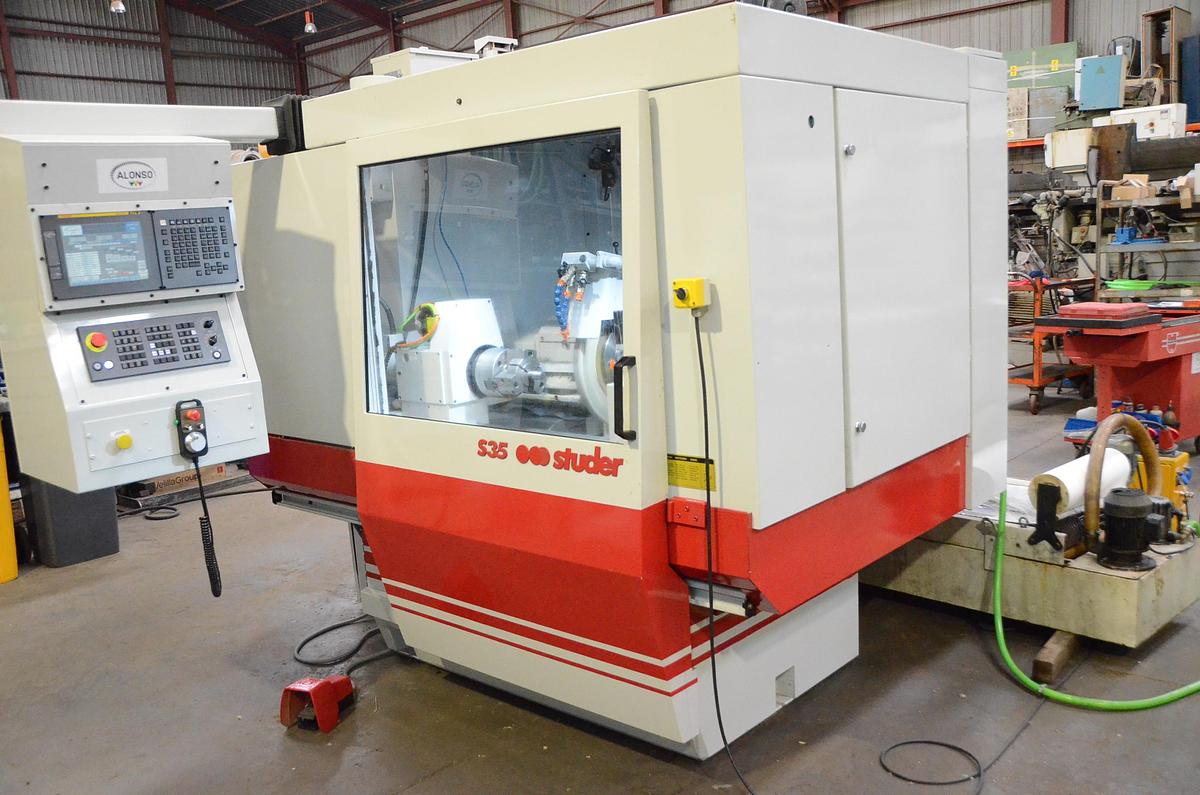

STUDER S35 Favorit

Year of retrofitting: 2025, Maximum distance between points: 1000 mm, Max distance between points: 1000 mm, Max travel Z axis: 650 mm, Max. Z-axis travel: 650 mm, Max. travel X axis: 254 mm, Max travel X axis: 254 mm, Height of points: 175 mm, Ø max to rectify: 350 mm, Main engine power: 7.5 Kw, Max. diameter to be rectified: 350 mm, Max. piece weight: 130 Kg, Control type (CNC/manual): CNC, CNC brand: FANUC, CNC model: Oi-TF PLUS, Dimensions of the grinding wheel: Ø500 x Ø203 x 80 mm, Angle of tilt of the work spindle head: + / -8,5°, Long: 2500 mm, Grinding wheel dimensions: Ø500 x Ø203 x 80 mm, Width: 2300 mm, Height: 2000 mm, Weight approx.: 3500 Kg, Angle of inclination of the work wheel head: + / -8.5°
