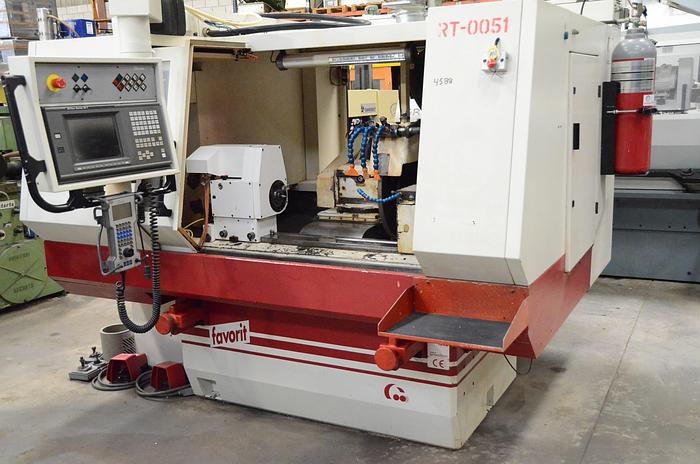

STUDER S36 FAVORIT

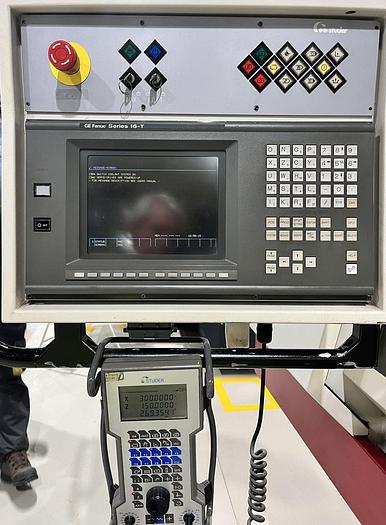

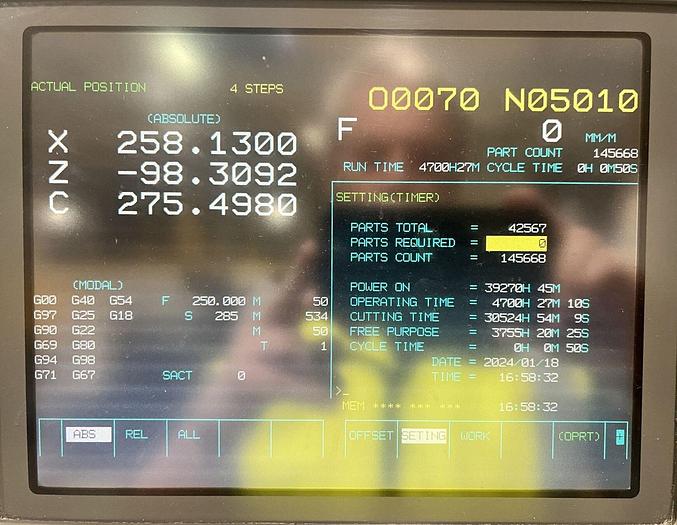

Distance between points: 1000 mm, Height of the points: 175 mm, Point height: 175 mm, Grinding length: 500 mm, grinding length: 500 mm, Max. diameter to be rectified: 300 mm, Working wheel dimensions (od x id x width): Ø500 x Ø203 x 80/100 mm, Ø max to be rectified: 300 mm, Inner cone: Morse 5, inner cone: Morse 5, Working wheel motor power: 7.5 Kw, Total power: 17 Kw, Longitudinal travel of the carriage (X axis): 267 mm, Transverse travel of the carriage (Z axis): 650 mm, CNC brand: FANUC, cnc brand: FANUC, CNC model: 16-T, cnc model: 16-T, Grinding wheel speed: 0-1670 rpm, Turning range: +/- 8.5º, Dimensions: 2600 mm x 2300 mm x 2100 mm, Weight approx.: 4200 Kg
