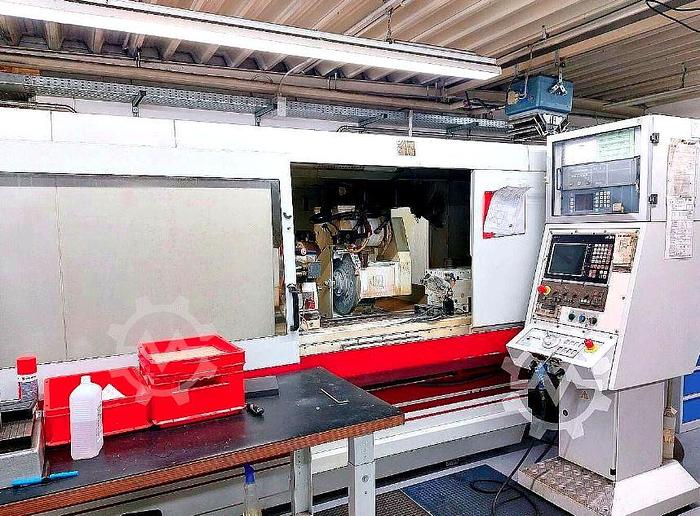

STUDER S40-4

Distance between centers: 1000 mm, Distance between points: 1000 mm, Height of points: 175 mm, Main engine power: 7.5 Kw, Working wheel dimensions (od x id x width): Ø500 x Ø203.2 x 80 mm, Ø max to be rectified: 350 mm, Max. diameter to be rectified: 350 mm, tailstock cone: MORSE 3, Workpiece head cone: MORSE 4, Workpiece holder head cone: MORSE 4, Max travel Z axis: 1150 mm, Max. X axis travel: 275 mm, Max travel X axis: 275 mm, Approximate dimensions (length x width x height): 5,200 x 2,300 x 2084, Approx. dimensions (length x width x height): 5,200 x 2,300 x 2084, Weight approx.: 7000 Kg
