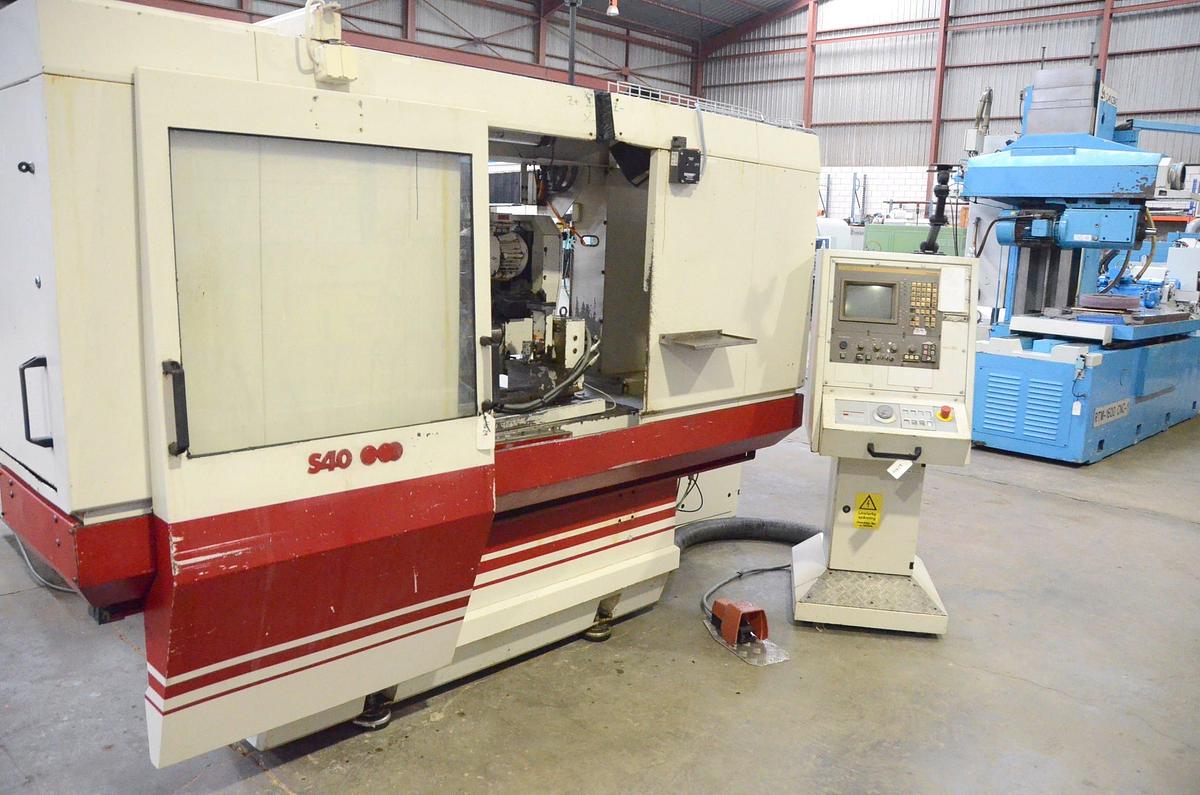

STUDER S40-4

Distance between points: 650 mm, Max external diameter to be rectified: 320 mm, Working wheel dimensions (od x id x width): Ø400 x Ø127 x 80 mm, Ø interior max to be rectified: 140 mm, Height of points: 175 mm, Control type (CNC/manual): CNC, CNC brand: SIEMENS, CNC model: SINUMERIC 3G7, Maximum length to be rectified: 650 mm, Max. piece weight: 130 Kg, Main engine power: 5.5 Kw, Total power: 22 KVA, Max. revolutions of the workhead: 30 - 750 rpm, Strain: 380 V / 50 Hz, X-axis feed: 0.01 – 5,000 mm/min, Z-axis feed: 0.06 – 10,000 mm/min, Air pressure: 5 bar, Max travel X axis: 275 mm, Max travel Z axis: 700, Max. rotation of workpiece table: 8.5º, Inner cone of workpiece head: M 5, tailstock cone: M 3, Counterpoint reed route: 35 mm, Dimensions (length x width x height): 2,815mm x 1,875mm x 2,090mm, Weight: 3.600 Kg
