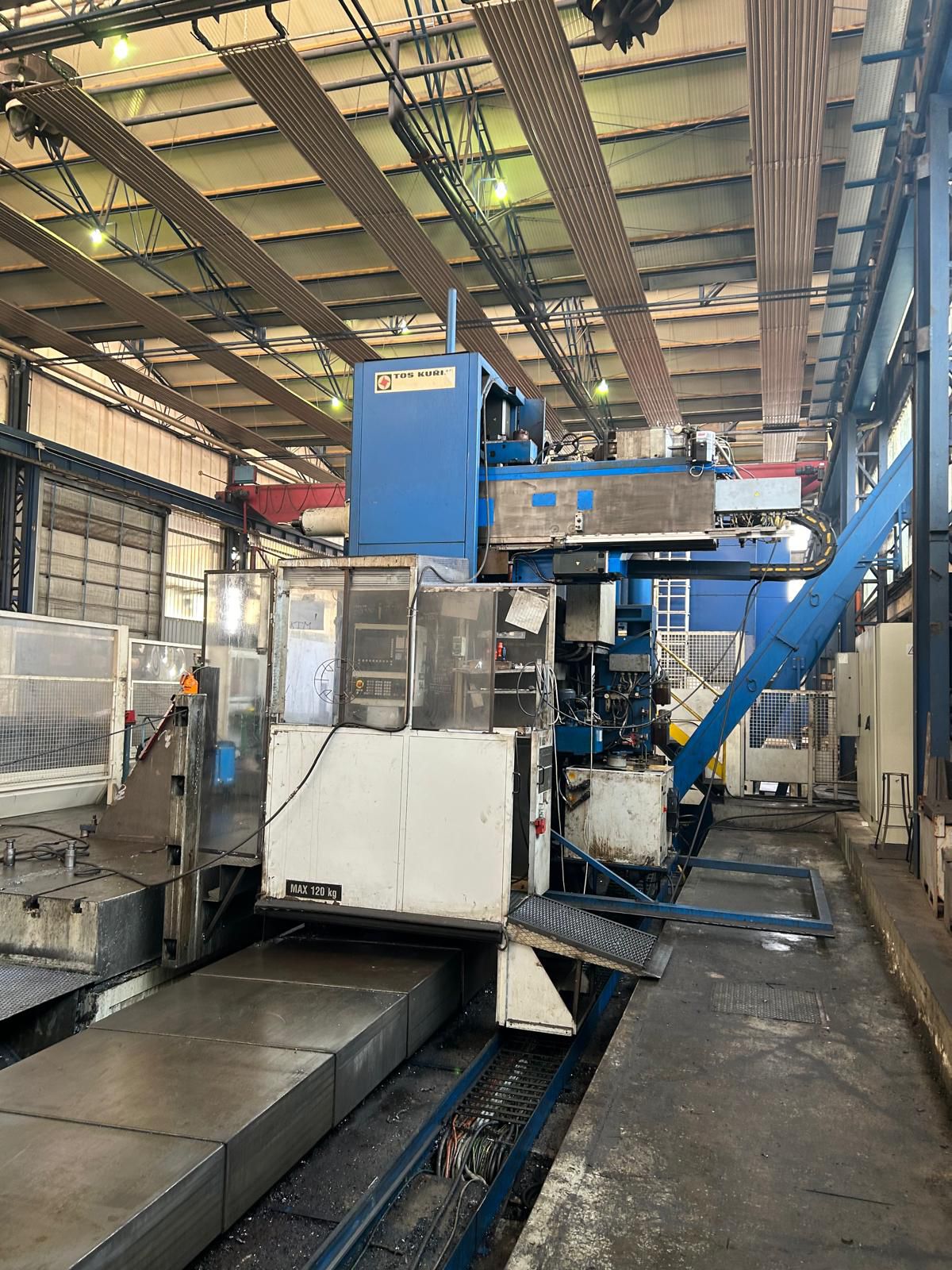

TOS FUQ 150 VR/10

Heidenhain iTNC530Indramat10,000 mm1,500 mm2,500 mm0.001 mm20,000 NX 20,000 mm/min, Y 20,000 mm/min, Z 20,000 mm/min (16,000 mm/min at 2,500 mm Z stroke)20 micrometres (X over 2,000 mm; Y; Z)10 micrometres (X over 2,000 mm; Y; Z)CES rotary table 2,000 x 2,500 mm, max. load 20,000 kgISO 50 (CSN 22 0433 / DIN 2079-CC)20 - 4,000 rpm, continuous30 / 37 kW1,000 NmVK 4000 universal, VA2 4000 straight, VP2 4000 angular - all after overhaulChain type (Q) - R 40, 40 toolsDia. 130 mm adjacent / 250 mm with one free position; weight 25 kg; length 340 (unit given as kg in the offer, apparently mm)CTC max 80 s / CTC min 30 s50 kVA3 x 400 V, 50 Hz6 barLpA 80 dB, LWA 99 dBChain type chip conveyors with one chip containerCooling unit for thermal stabilization of the spindle head driveProtective fence with electric locking, protective cover of working area, stable operator platformNew wiring; new bearings and brake for ball screws (Z1, Z2, Y); main gearbox repair (bearings, seals, gears, shafts); gearbox X repair; new levelling elements
